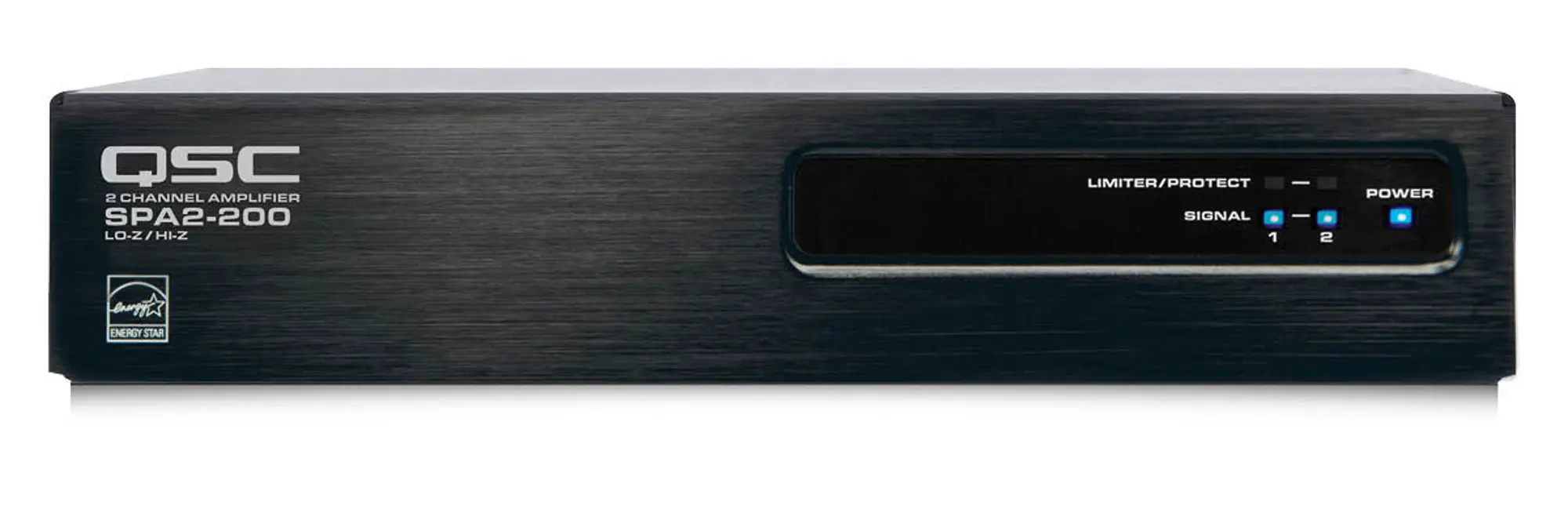

QSC SPA2-200
SKU: QSC-SPA2-200
MPN: SPA2-200
Description
Q-SYS 2-Channel Amplifier 70v 8ohm Multi-Impedance 200w 1/2U 4ohm Stable MS Teams Zoom Certified Includes Rack Ears and Mounting Brackets
Send to a friend!
SKU: QSC-SPA2-200
MPN: SPA2-200
Q-SYS 2-Channel Amplifier 70v 8ohm Multi-Impedance 200w 1/2U 4ohm Stable MS Teams Zoom Certified Includes Rack Ears and Mounting Brackets
Send to a friend!
SPA2-200
| Number of Channels | 2 |
| Amplifier Power Rating | 200 W per Channel400 W Bridged |
| Load Impedance / Voltage | 4 / 8 Ohms70 / 100 V |
| Analog Audio I/O | 1x Block 5-Pin Line Input1x Block 5-Pin Remote Input1x Block 4-Pin Speaker Output |
| Digital I/O | No |
| Rackmount Size | 1 RU (with Included Hardware) |
| Number of Channels | 2 |
| Amplifier Power Rating | 200 W per Channel400 W Bridged |
| Amplifier Class | Class-D |
| Load Impedance / Voltage | 4 / 8 Ohms70 / 100 V |
| Frequency Response | 20 Hz to 20 kHz ±0.1 dB (4 Ohms, 8 Ohms) |
| Input Sensitivity | 1.23 V / +4 dBu |
| Input Impedance | >10 Kilohms (Balanced/Unbalanced) |
| Max Gain | 30 dB (at 8 Ohms) |
| Max Input Level | +24 dBu / 12.3 V |
| SNR | > 100 dB |
| EQ | No |
| Filters | 1x High-Pass:80 Hz |
| Ducking/Muting | No |
| Analog Audio I/O | 1x Block 5-Pin Line Input1x Block 5-Pin Remote Input1x Block 4-Pin Speaker Output |
| Digital I/O | No |
| USB I/O | No |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| AC Power Connector | 1x IEC 15 A / NEMA 5-15 |
| Display & Indicators | Front Panel:LED (Power/Protect/Signal)Rear Panel:LED (Limit/Protect/Signal, per Channel) |
| Rackmount Size | 1 RU (with Included Hardware) |
| Cooling | Convection |
| Certifications | CE, ENERGY STAR, FCC, RoHS, UL, WEEE |
| Dimensions | 9.5 x 1.8 x 8.7" / 241.3 x 45.7 x 221.0mm |
| Weight | 4lb / 1.8kg |
| Package Weight | 5.685 lb |
| Box Dimensions (LxWxH) | 15.5 x 11.5 x 3.4" |
