QSC BT1

Single Gang Bluetooth Wallplate Interface

BT1

Attero Tech by QSC Axiom Series products provide simple, flexible and cost-effective solutions for point-to-point analog audio extension over non-networked CAT-5 technology. The Axiom Series combines a single-gang USB, Bluetooth or XLR wallplate with an audio expander to offer easy integration of portable audio devices into an installed AV system, mixer or other audio destination.

Axiom BT1 features two-way Bluetooth connectivity and a 3.5 mm stereo audio connector, allowing users to easily connect consumer-grade devices to the rooms audio system for music playback or Bluetooth conference call bridging.

• Provides simple, bi-directional Bluetooth connectivity (2 x 0, 1 x 1, or 1 x 0)
• Simple, one-button pairing/connect process with LED connection status indicator
• Provides a wireless call bridging solution for conferencing systems with dedicated microphones and speakers
• 3.5 mm TRRS stereo analog audio jack allows for connecting to smart devices and media players
• Defeatable pairing button for restricted use applications with third-party control systems
• Single-gang, Decora form factor
• RS-232 control over volume and mute

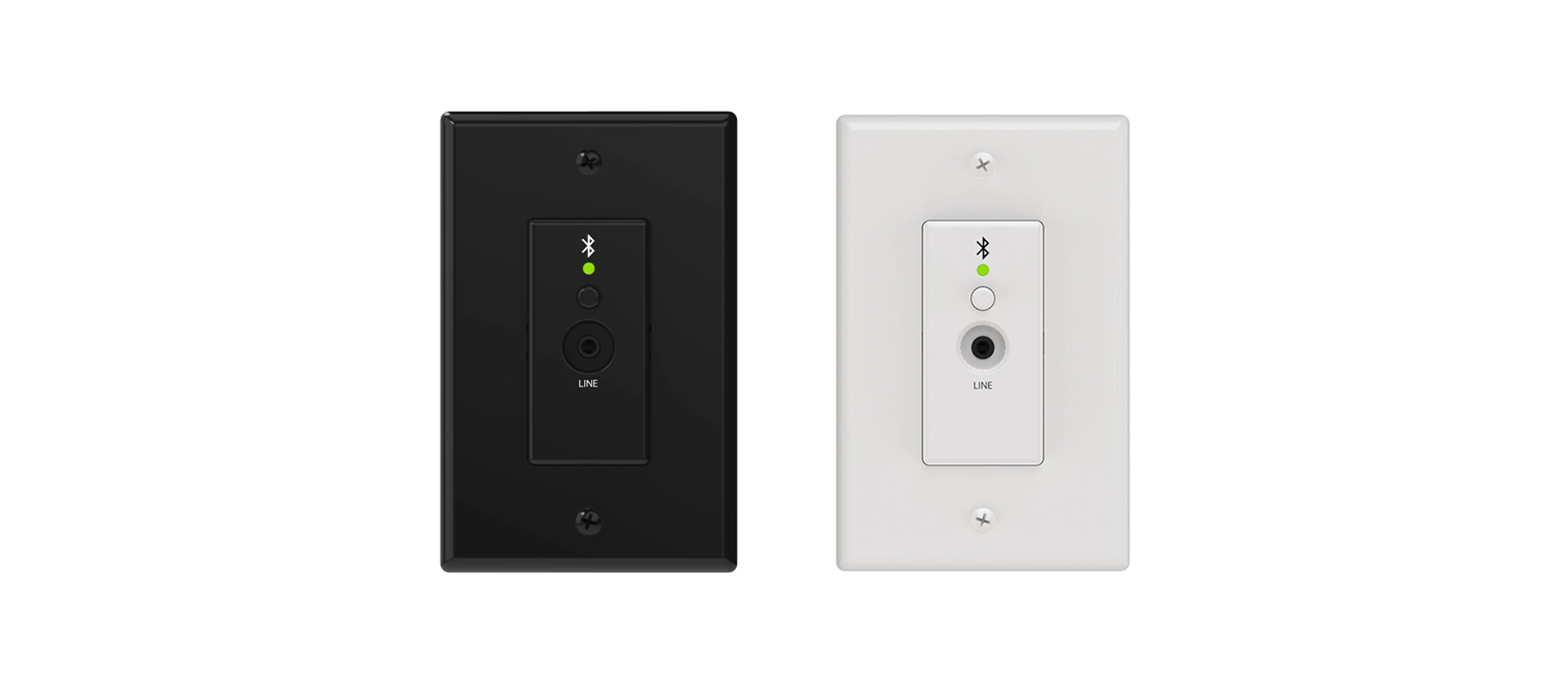

• Ships with both black and white Decora plates and fascia inserts
