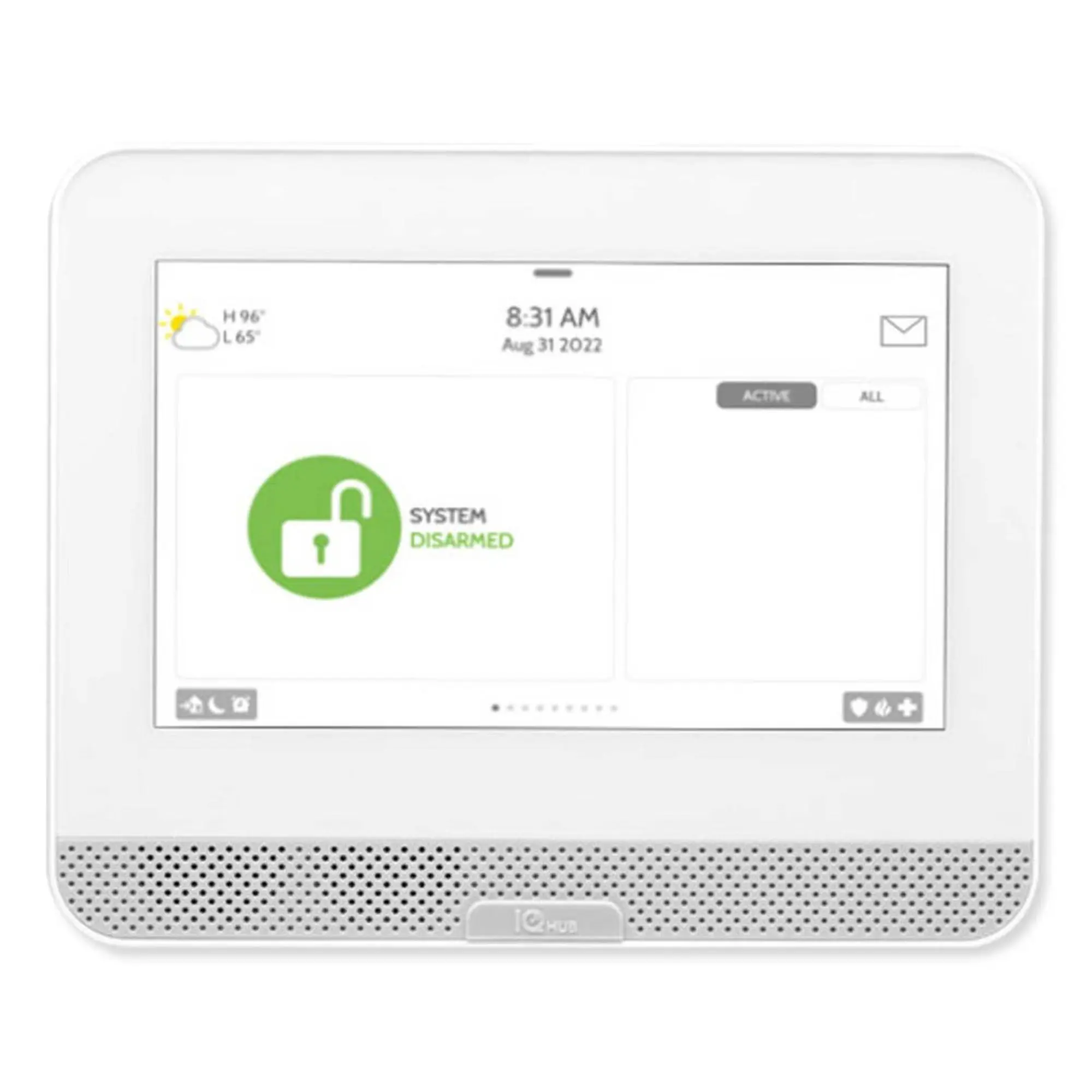

Qolsys IQ4 Hub AT&T 345Mhz

Name: Pioneer Music Company
Address: United States
Telephone: 8003620315

SKU: QOL-IQPH056

MPN: IQPH056

Description

7" Touchscreen Alarm Panel PowerG AT&T 345MHz Legacy Support Honeywell 2GIG

Add to Wishlist

Send to a friend!

LCD Display Size 7-inch LCD
Resolution 1024 x 600 pixels
Brightness 300 cd/m2
RGB Color 24bit, 16.9 Million Colors
Touchscreen Type Capacitive glass
User Codes Up to 242 Role-based (Dealer, Installer, Master, User, Guest, Duress)
Network WiFi WiFi 802.11 a/b/g/n/ac dual band 2.4/5GHz - including built-in access point capability
Cellular LTE Category 4 (Bands 2/25, 4/66, 5, 7, 12/17, 13, 14 non-FirstNet, 26)
Z-Wave Plus (800) Up to 137 Devices 137 total (Up to 80 lights, up to 20 locks, up to 10 thermostats, up to 6 garage doors, up to 21 misc.)
PowerG Up to 128 Devices 915 MHz Long Range Secure Encrypted 2-Way Wireless
Security RF Up to 128 Devices Depending on the model: Either S-Line Encrypted 319.5 MHz, 345 MHz, or 433 MHz
Bluetooth Disarm & Audio Streaming Bluetooth Low Energy (BLE) 4.2
Flash Memory Internal Storage 16GB NAND Flash
LED Indicator Status LED Full-color RGB LED
Speaker/Siren 4W Front-facing 4W speaker + 85-dB piezo siren
Microphone MEMS 1x MEMS (Micro-Electro-Mechanical System) Microphones
Tamper Tamper Switch Dual panel and wall tamper with spring release and Smash and Grab reporting
Battery Type 18650 Rechargeable Lithium Ion 3000mAh Rated for over 24 hours
Buttons Hard Button Single wake/sleep button, all user controls through touch interface
Mechanical Dimensions 6.1H x 7.5W x 1D (155mm x 191mm x 26mm)
Power Supply DC 7v DC 1000mA CC, Input 100-240VAC 50/60Hz Adpater evaluated at 120vAC for UL/cUL
Mount Back Plate SmartMount for wall mounting included. SmartMount table stand
Certifications FCC FCC: 2AAJXQS-IQPANEL4 (may contain additional modules with separate FCC IDs) 2AAJXQS-ZW8
IC IC: 11205A-QSIQPANEL4 11205A-QSZW8
UL/ULC UL-985, UL-1023, UL2610, ULC-S545, ULC-S304
Temperature Operational 0°C to 49°C, 32°F to 120.2°F, up to 93% relative humidity, indoor, dry ordinary locations use only
Storage -20°C to 50°C, -4°F to 122°F
Operating System Android 9 Security & Home Automation Touch and Swipe Interface
Processor 8-core Qualcomm Snapdragon 8-core SOM (System on a Module) with 16GB of NAND Flash

Type:
Control Panel
Brand:
Qolsys
