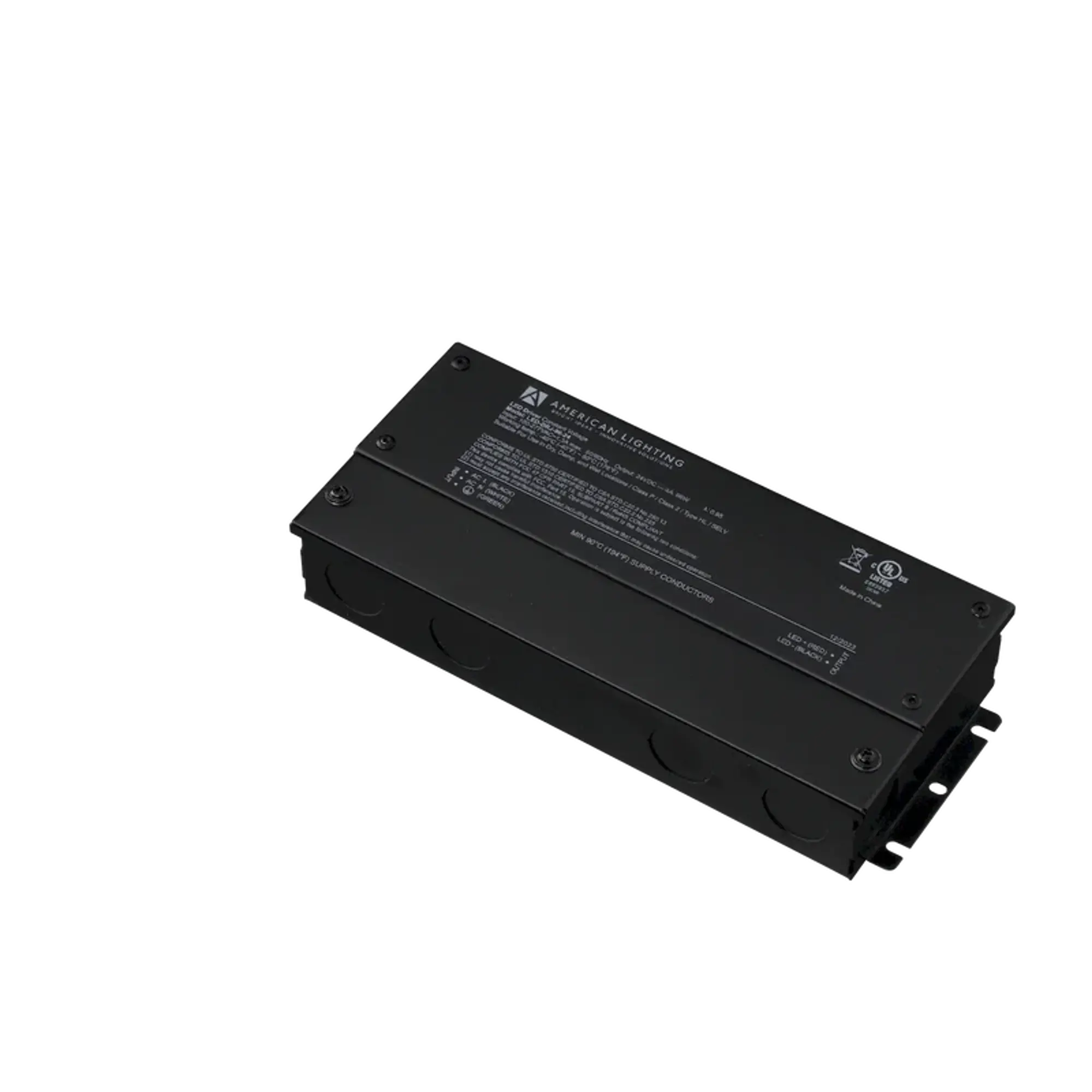

Proluxe PLX-LEDDRJ24V-96

LED-DRJ Series 24V DC, 96W, Non-Dimmable LED Driver w/junction box

PLX-LEDDRJ24V-96

The LED-DRJ Series features universal 100-277V AC power input with high reliability and Class 2 rating. Standard built-in protections include short circuit, over-current, over-voltage, and over temperature. Used commonly with DMX decoders and controls for secondary side dimming, they can also be used in non-dimming applications (minimum loads apply). Durable aluminum housing features integrated junction box and wet location rating.

• 24V DC constant voltage hardwire driver
• Non-dimmable option for installations where primary side dimming is not needed
• Short circuit, over-load, and over-temperature protections
• Slim, compact aluminum housing design (only 1.72 tall)
• Integrated wiring compartment
• Free air convection cooling
• Class 2, Class P, Type HL, FCC compliant
• cULus Listed, Wet location rated

• Cutsheet
