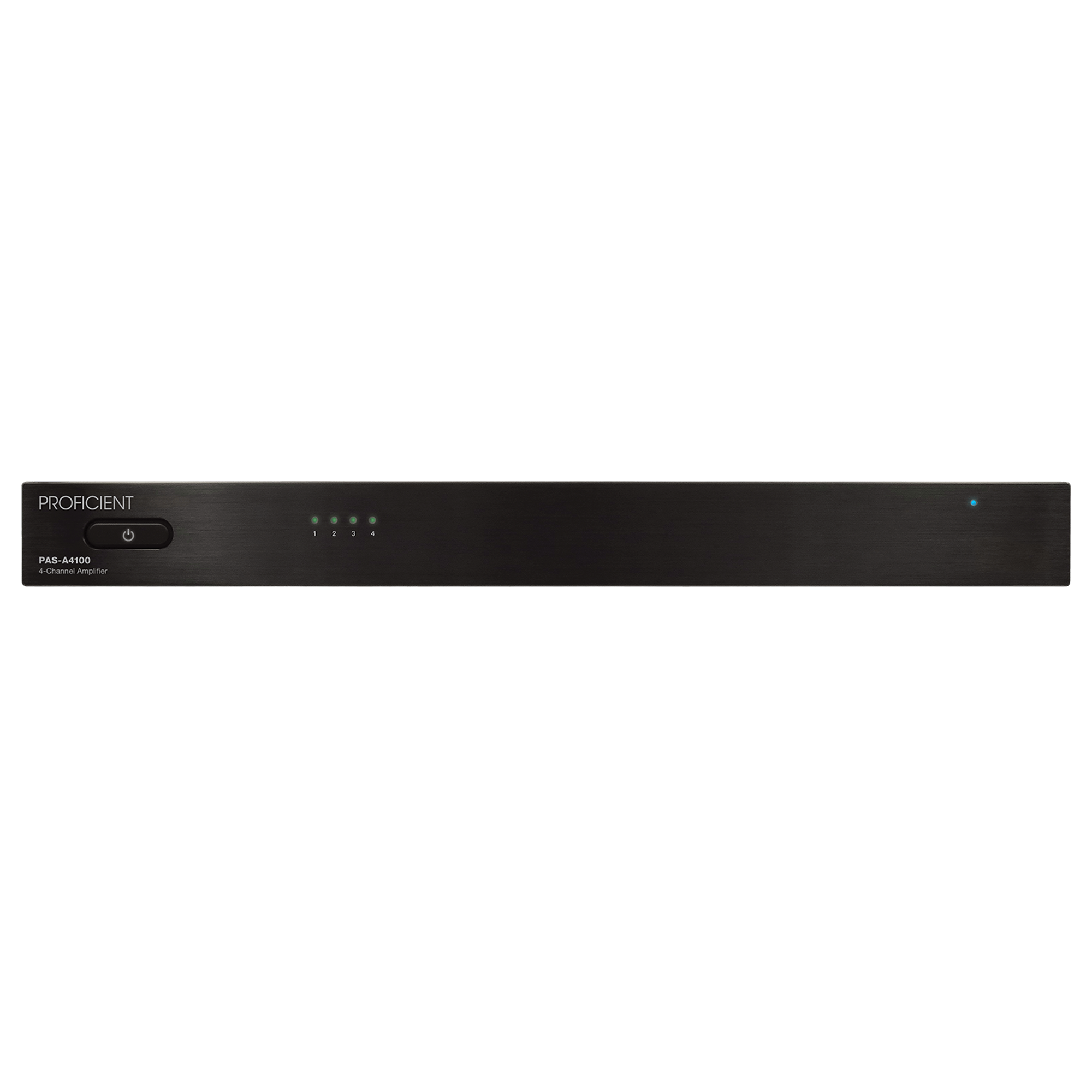

Proficient Audio PAS-A4100
SKU: PRF-PAS-A4100
MPN: PAS-A4100
Description
4-Channel Analog Filtering Amplifier 8ohm 4x 100w 1U Includes Rack Ears
Send to a friend!
SKU: PRF-PAS-A4100
MPN: PAS-A4100
4-Channel Analog Filtering Amplifier 8ohm 4x 100w 1U Includes Rack Ears
Send to a friend!
PAS-A4100
The PAS-A4100 delivers up to 100 watts of power to each of four independent channels. It is bridgeable in pairs- doubling the output and enabling 2, 3 or 4-channel configuration.
The PAS-A4100 is designed for flexibility and convenience for the vast majority of distributed audio and home entertainment applications. This single rack-mount chassis is powerful, easy to configure and install.
The PAS-A4100 delivers up to 100 watts of power to each of four independent channels. It is bridgeable in pairsdoubling the output and enabling two, three, or four channel configuration.
Additionally, each channel has two selectable analog high pass filters. These filters are critical to optimize the performance of connected satellite speakers or subwoofers, without the hassle of DSP or IP.
Independent level control allows you to trim the signal for lower output to small speakers or turn all the way up for max power. The amplifier is stable at a low impedance, so it can drive multiple satellite speakers or a subwoofer from each channel.
Preamp outputs on every channel allow for patching to an adjacent channel or sending the signal to another device. Audio sensing, and in-&-out triggers add power management convenience. Each channel has a signal and clipping indicator located on the brushed aluminum front panel for easy troubleshooting and signal verification. Rack ears and tabletop feet are included for mounting options.
4
51-100
Proficient
Master Power Button
Includes turn-on circuitry
Status Display for Troubleshooting
Channel indicators light up green when signal is present and red when clipping
Bicolor Status LED
Illuminates blue when the amplifier circuitry is turned on by the Turn-on circuits, and illuminates red to indicate activation of the amplifiers built-in protection circuitry
4 Independent Channels Up to 100 Watts @ 8 Ohms
Ample power to drive subwoofers and multiple satellite speakers
Selectable Analog Filters
Built-in 3-position switch filters low/full-range/high-pass audio signals for each amplifier output
Turn-On Modes
Audio signal sense Normal always on Trigger voltage
Audio Input Level Controls
Rear panel adjustment dials allows for independent source matching or limit maximum safe volume
Trigger Input
3-24VAC or DC 20mA
Trigger Output
12VDC max 150mA
