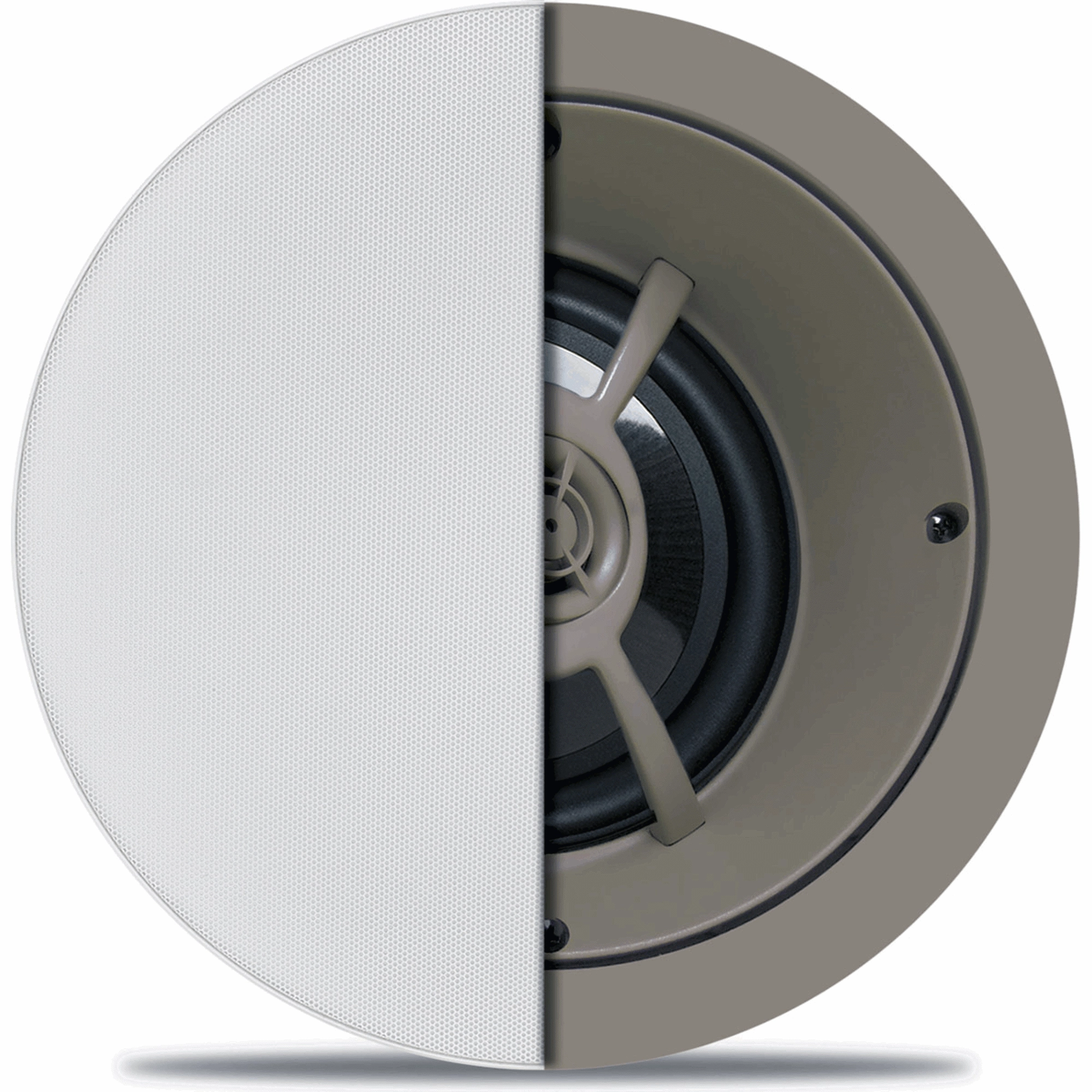

Product Overview
One LCR ceiling speaker with woofer and tweeter bridge fixed at a 15° angle. 6-1/2" graphite woofer and 1" pivoting aluminum dome tweeter and 125 watt power handling.
Main Features
Uproar the bass as loud as youWant with 125W RMS power without any blaring
Listen to deep lows and euphoric highs with a frequency range of sound from 36 Hz-22 kHz
8 Ohms impedance extracts maximum power so you will get more output from your speakers
8 Ohm impedance extracts maximum power so you will get more output from your speakers
Woofer and tweeter bridge fixed at a 15° angle
General Information
Name: Proficient C661 Protege Ceiling LCR Speaker with 6.5" Graphite Woofer and 1" Pivoting Aluminum Tweeter (Replaces C660)
Category: Proficient, Residential AV, Residential Audio, Speakers
UPC Code: 664254014369
Country of Origin: China. Country of origin is subject to change.
Uproar the bass as loud as youWant with 125W RMS power without any blaring
Listen to deep lows and euphoric highs with a frequency range of sound from 36 Hz-22 kHz
8 Ohms impedance extracts maximum power so you will get more output from your speakers
Specifications
General Information
ADI Part Number
C1-C661
Brand Name
Proficient
Manufacturer
Proficient Audio Systems
Manufacturer Part Number
PAS13661
Packaged Quantity
1
Product Line
Protege
Product Model
C661
Product Name
Protege C661 Speaker
Product Type
Speaker
Technical Information
Impedance
8 ohms
Impedance (Ohm)
8
Maximum Frequency Response (Hz)
22000
Minimum Frequency Response (Hz)
36
PMPO Output Power (W)
125
Sensitivity
92 dB
Sensitivity (dB)
92
Speaker Size
6.5"
Speaker Size (mm)
165.1
Tweeter Driver Material
Aluminum Dome
Tweeter Driver Size
1"
Tweeter Driver Size (mm)
25.4
Wireless Speaker
No
Woofer Driver Material
Graphite
Woofer Driver Size
6.50"
Woofer Driver Size (mm)
165.1
Audio
Maximum Frequency Response
22 kHz
Minimum Frequency Response
36 Hz
PMPO Output Power
125W
RMS Output Power
125W
RMS Output Power (W)
125
Physical Characteristics
Application/Usage
House
Color
Brown
Cutout Diameter
8.25"
Cutout Diameter (mm)
209.55
Depth
3.06"
Depth (mm)
77.787
Diameter (mm)
234.95
Form Factor
Ceiling Mount
Height
5.9"
Speaker Installation
Indoor
Width
10.6"
Woofer Diameter
6.5"
Speaker Size:
6.5"
Style:
In-Ceiling
Speaker Type:
LCR
Integrated Backbox:
No
Brand:
Proficient
Main Features
Uproar the bass as loud as youWant with 125W RMS power without any blaring
Listen to deep lows and euphoric highs with a frequency range of sound from 36 Hz-22 kHz
8 Ohms impedance extracts maximum power so you will get more output from your speakers
8 Ohm impedance extracts maximum power so you will get more output from your speakers
Woofer and tweeter bridge fixed at a 15° angle
