Platinum Tools 202044J

SKU: PLA-202044J

MPN: 202044J

Description

ezEX44 RJ45 CAT5 Category 6 Connectors Hi-Lo Staggered Passthrough 100-Pack Jar

Add to Wishlist

Send to a friend!

ezEX44 RJ45 CAT6 Connector 100-Pack Jar

202044J

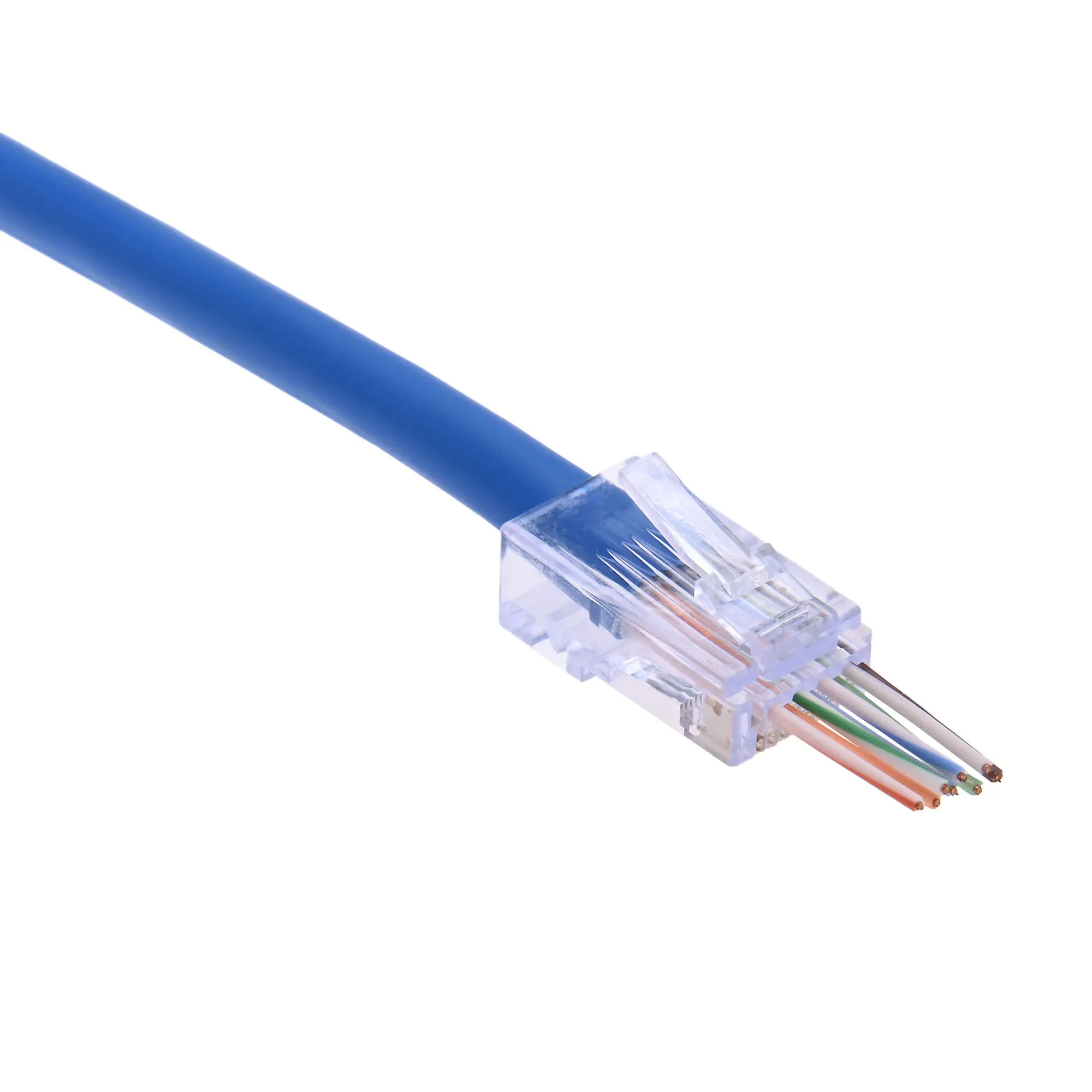

The patented ezEX44 connectors feature a unique integrated Hi-Lo stagger load bar and allows big conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6 (Sm. Cat6A) cabling and is recommended for PoE/PoE+ and Data applications. The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C).

Hi-Lo stagger to isolate each conductor
Simple one piece/pass through design, no bars or liners
Insulation Diameter (Conductor) Size range: .039 .044 (1.0 1.12mm)
Max Outer Diameter: .290 (7.36mm)
50 micron gold plated contacts
5e/6/6A compliant
Solid or Stranded 24-22 AWG
TIA, TAA, RoHS, UL & FCC compliant
Typically used with Cat6 (Sm. Cat6A)
Made in the USA
US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
