Platinum Tools 202038J

SKU: PLA-202038J

MPN: 202038J

UPC: 849160011019

Description

ezEX38 RJ45 CAT5E Category 5e Connectors Hi-Lo Staggered Passthrough 100-Pack Jar

Add to Wishlist

Send to a friend!

ezEX38 - ezEX-RJ45 Cat5e Connector 100-Pack Jar

202038J

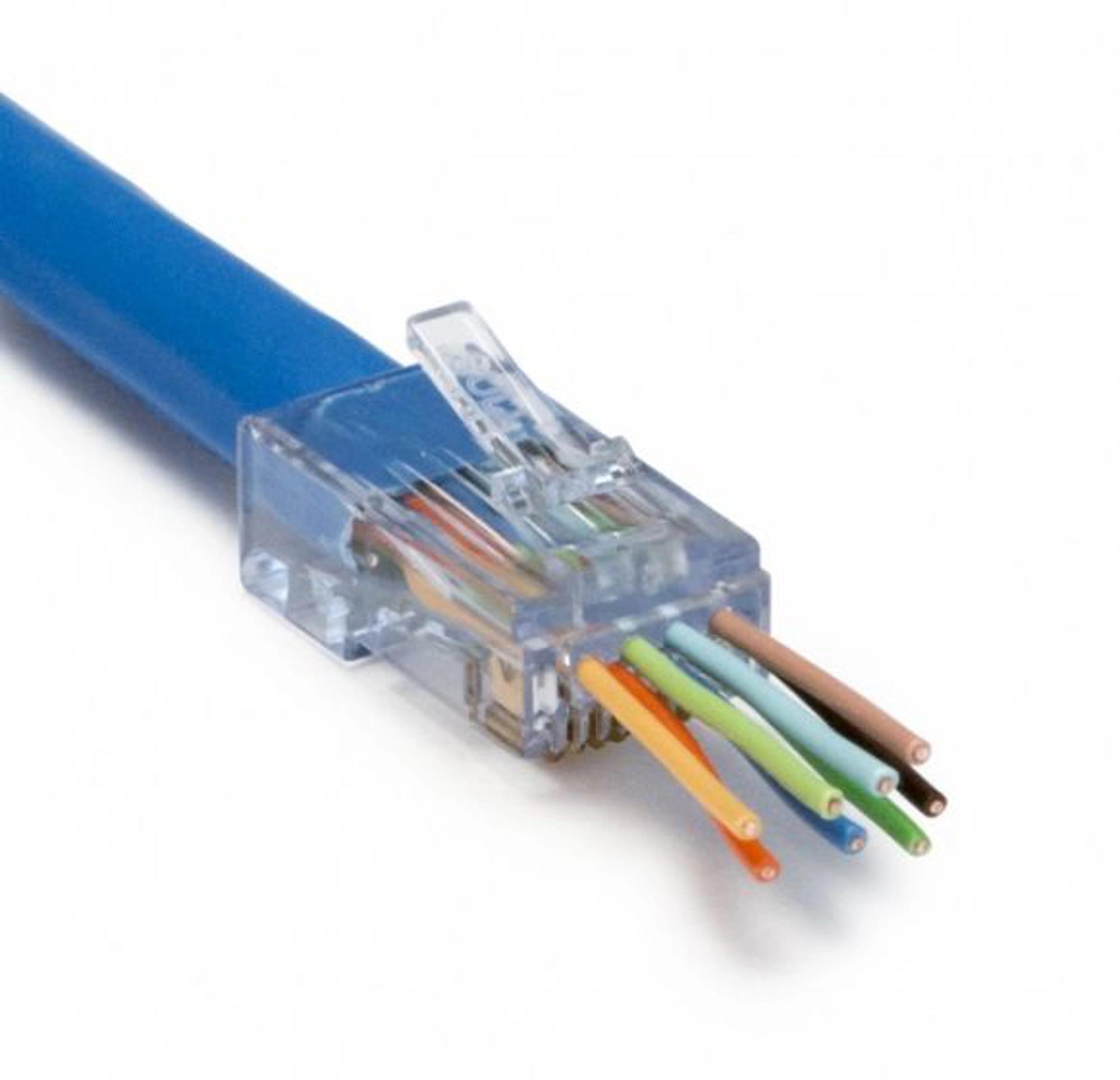

The patented ezEX38 connectors feature a unique integrated Hi-Lo stagger load bar and allows big conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. These connectors are used with Cat5e (Sm. Cat6) cabling and is recommended for PoE/PoE+ and Data applications. These connectors are also available in shielded (STP) internal ground style. The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C).

Hi-Lo stagger to isolate each conductor
Simple one piece/pass through design, no bars or liners
Insulation Diameter (Conductor) Size range: .033 .038 (0.84 0.97mm)
Max Outer Diameter: .290 (7.36mm)
50 micron gold plated contacts
5e/6/6A compliant
Solid or Stranded 24-22 AWG
TIA, TAA, RoHS, UL & FCC compliant
Typically used with Cat5e (Sm. 6)
Shielded (STP) Internal Ground available
Made in the USA
US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
