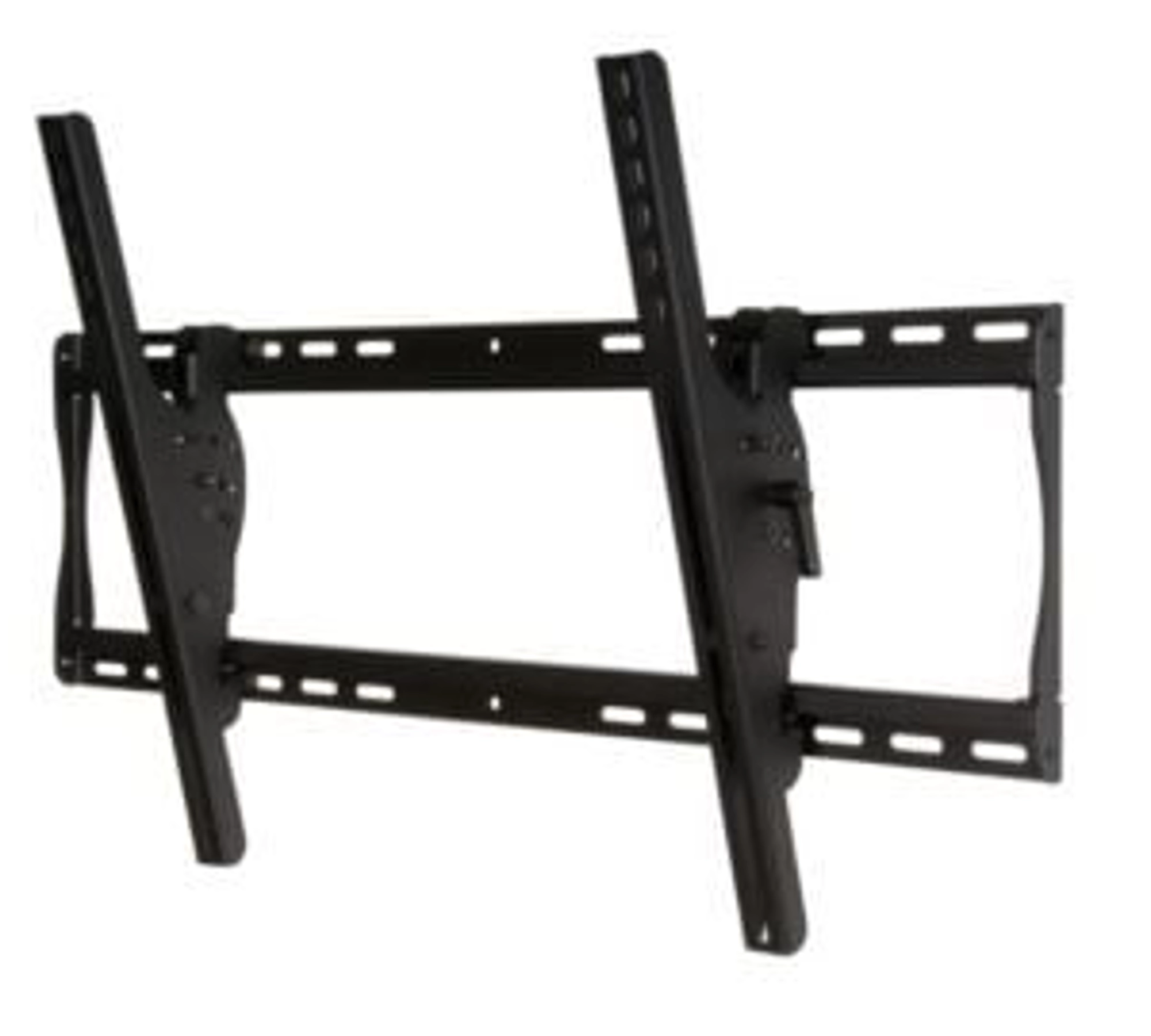

Peerless-AV ST650

SmartMount Universal Tilt Wall Mount

ST650

The SmartMount^®Universal Tilt Wall Mount series offers the most versatile installation features and mounting options. Horizontal and vertical adjustment abilities allow for post installation leveling and side-to-side positioning, making it easier than ever to find the perfect TV position. Lock the tilt angle at installation to prevent tampering or moving with the IncreLok™ tilt technology. Security screws provided in the ST650 models deter tampering and theft. The open wall plate design offers total wall access, increasing the electrical and cable management options. The display can now simply be installed by a single person with the Hook-and-Hang™ system. The Easy-Glide™ adaptors hook onto the wall plate for an overall quick, simple, and secure installation.

This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.

• Maximum Load Capacity 175 lb
• Minimum Screen Size Supported 39"
• Maximum Screen Size Supported 75"
• Minimum Adjustable Depth 2.62"
• VESA Mount Compatible Yes
• Mounting Pattern 200 x 100 to 600 x 400

• Universal mount fits displays with mounting patterns up to 742 x 405mm (29.21" W x 15.95" H) and accommodates up to 600 x 400mm VESA patterns
• Adjustable 15° forward tilt and 5° backward tilt for finding the optimal viewing angle
• Easy-Grip^TMratcheting handle locks tilt angle into place
• Up to 0.25" (6mm) of vertical adjustment on each universal display adaptor bracket for post-installation leveling and height adjustment fine-tuning
• Horizontal display adjustment up to 8.00" (203mm) for centering display on wall
• Includes all necessary wall and display attachment hardware
• Integrated security options available
• Design is UL listed and tested to four times stated load capacity
• For mounts requiring theft resistant hardware, installed with security tool (included), please purchase ST650
• For mounts requiring standard hardware, installed with a Philips screwdriver, please purchase ST650P

• Cutsheet
