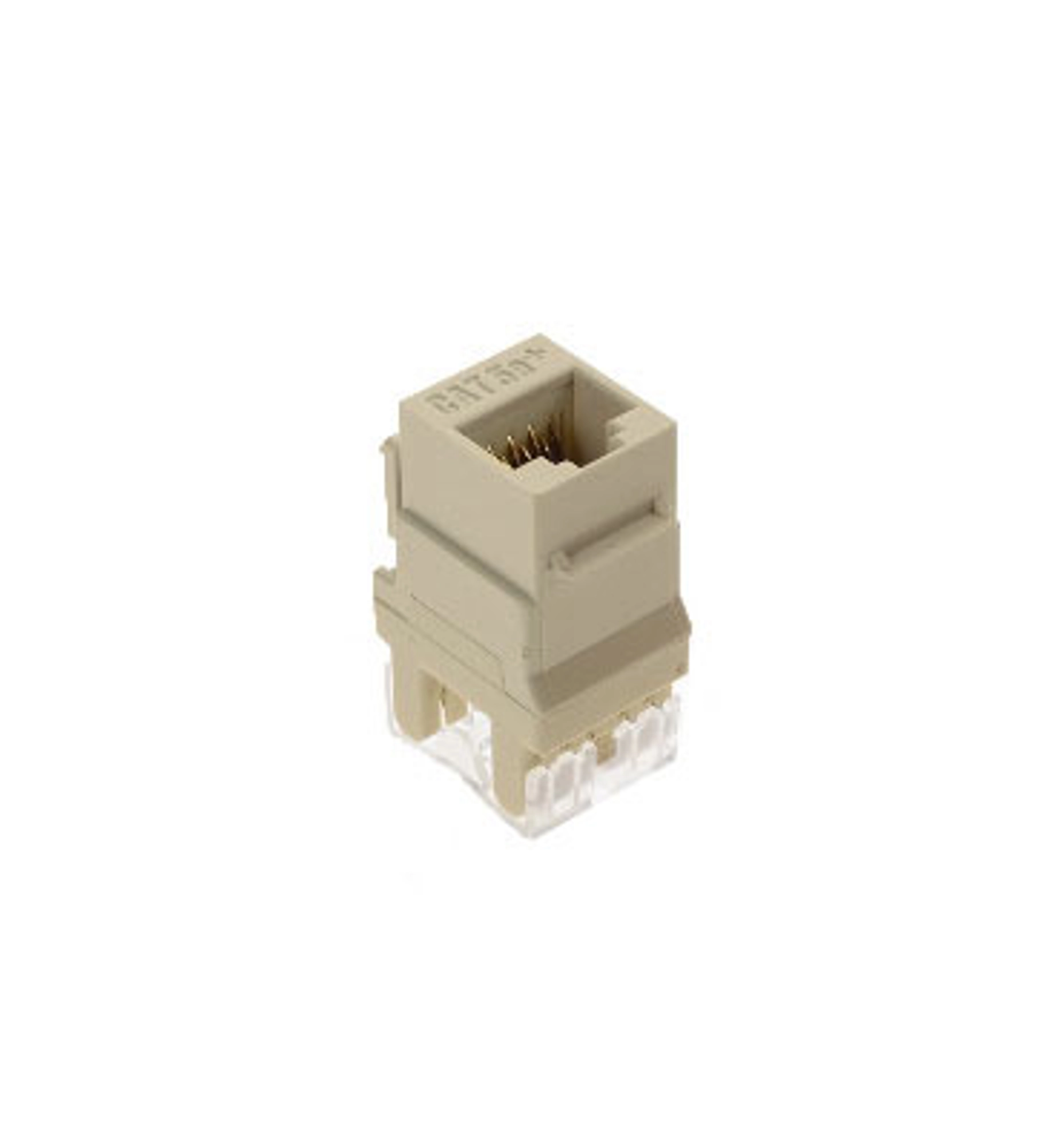

On-Q WP3450LA

Category 5e RJ45 Keystone Connector Light Almond

WP3450LA

The vertical design of this high-quality insert makes punchdown termination easy. This insert is for use in all Keystone wall plates and is available in multiple colors, as well as convenient contractor packs. It ensures Category 6 performance standard compliance and includes rear retention caps for secure wire termination.

• Cable Type Cat5e
• Environmental Conditions 0 to 93% (relative humidity, non-condensing)
• Termination Style Punchdown

• Ensures Category 6 performance standard compliance
• Rear retention caps ensure secure wire termination
• Vertical design for easy punchdown termination
• T568A and T568B wiring labels included
• Meets Category 5e described in TIA/EIA-568-B.2
• Insertion and extraction life is 750 Cycles Min
• Jack housing is high-impact, flame resistant plastic, UL 94V-0
• Spring wire is phosphor bronze alloy plated with 50 micro-inch of gold over 100 micro-inches of nickel
• Also available in contractor pack of 50 (WP3450-WH-50)

• Cutsheet
