On-Q EN0803

8-inch MDU Enclosure Kit with Cat5e Data

EN0803

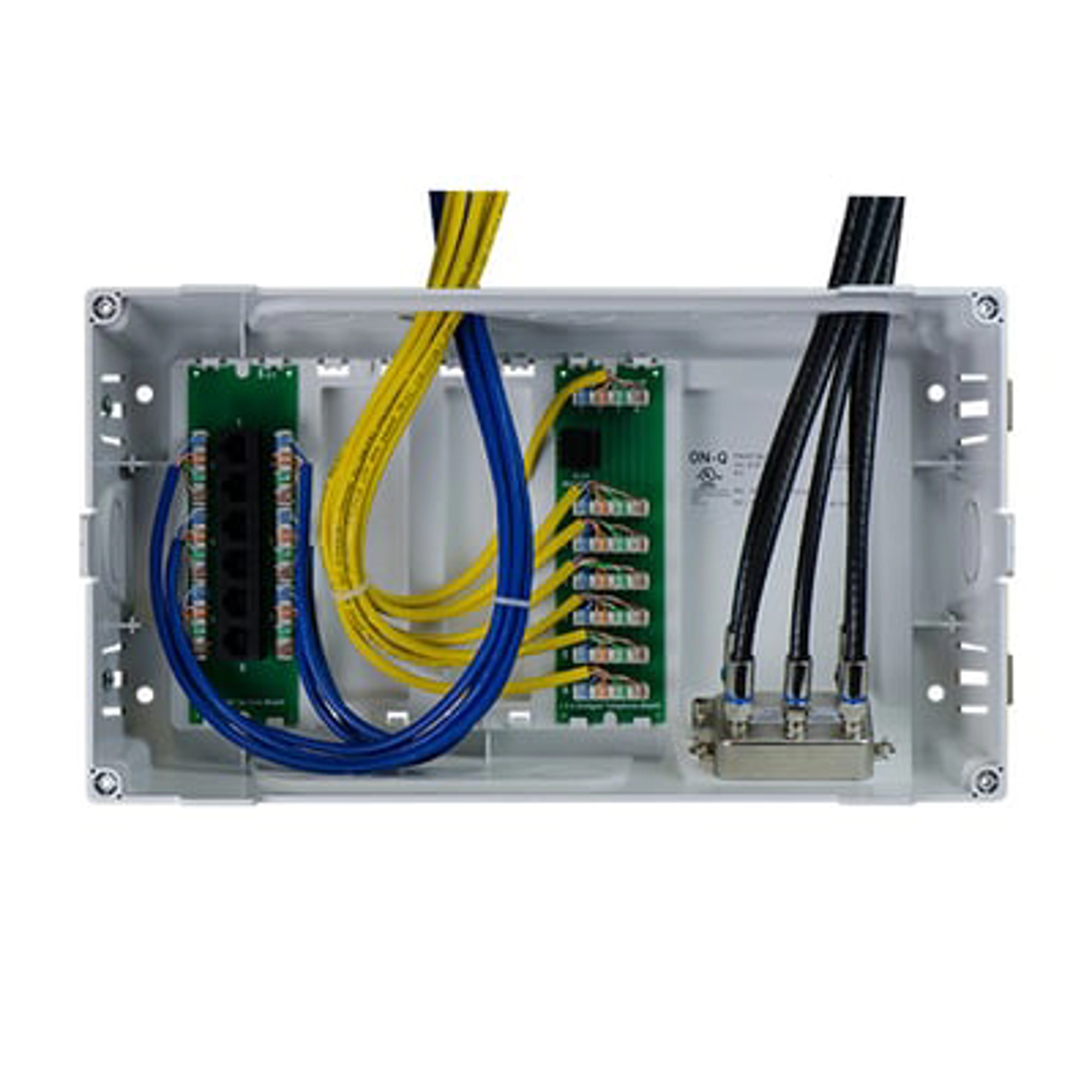

This kit provides a repetitive and cost effective strucutured wiring solution for multi-dwelling units (MDU) and small homes. The kit facilitates distribution of six phone, four video, and six data locations.

• Product Depth US 4.5 in
• Product Height US 9.0 in
• Product Width US 15.37 in
• Enclosure Size 8 in

• Includes the enclosure and cover with an installed 6-way phone module (TM0106), a 4-way coax splitter (VM0204), and 6-port cat 6 data board (AC0606)
• Facilitates both flush and surface-mount installations with mounting tabs and drywall depth indicators.
• Knockouts include screw driver holes for easy removal
• Includes four self-tapping screws for mounting and optional hardware to lock the cover
• Includes cable guard to protect enclosure contents from dust and paint during construction

• Cutsheet
