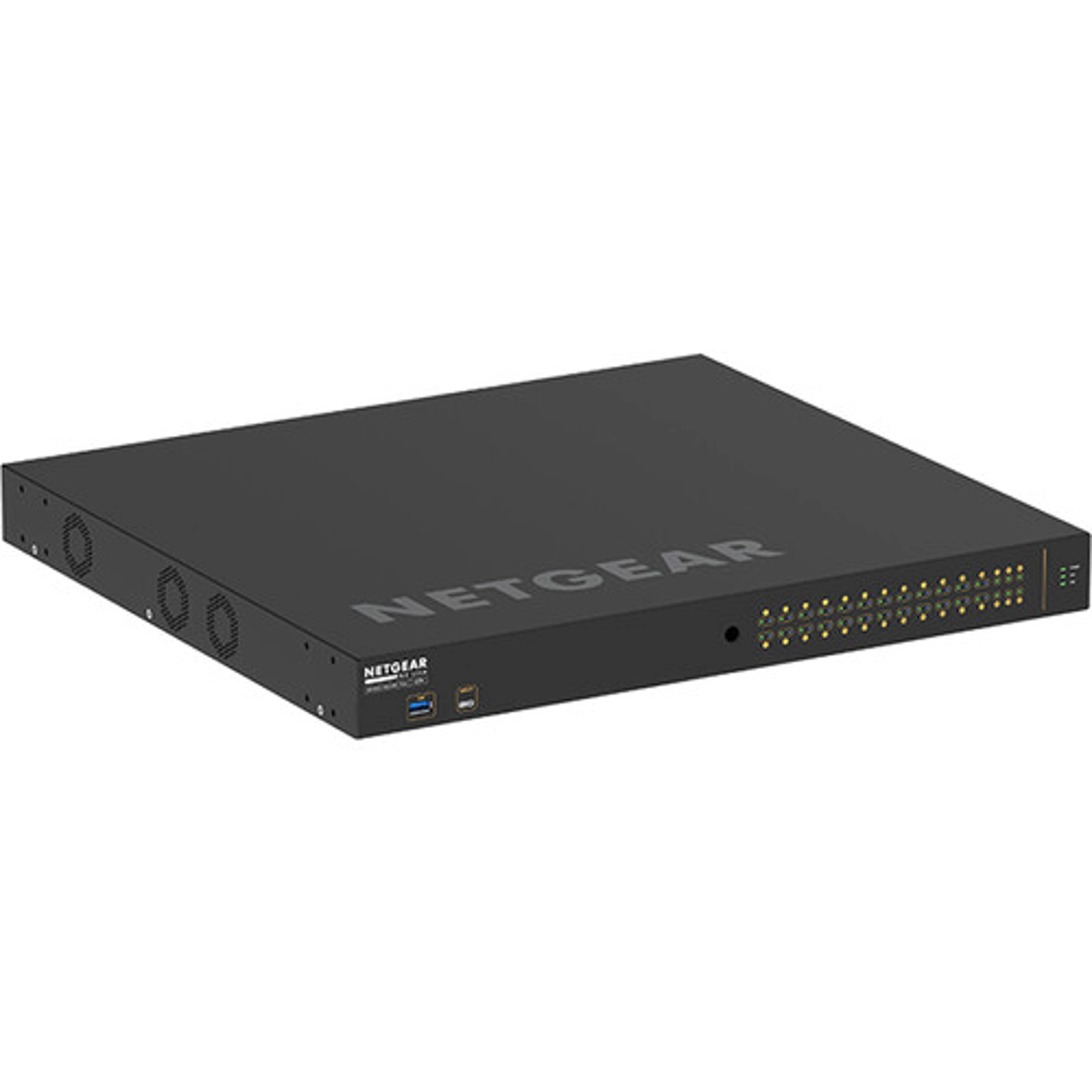

Netgear GSM4230PX-100NAS
SKU: NET-GSM4230PX-100NAS
MPN: GSM4230PX-100NAS
Description
24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch
Send to a friend!
SKU: NET-GSM4230PX-100NAS
MPN: GSM4230PX-100NAS
24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch
Send to a friend!
| Inputs/Outputs | 24x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)4x SFP+ 10 GbE2x RJ45 Gigabit Ethernet LAN2x USB-C1x USB-A |
| Switching Bandwidth | 132 Gb/s |
| PoE Power Budget | 480 W |
| Layer Services Supported | Layer 2, Layer 3 |
| Supported Protocols | DHCP ServerIGMP SnoopingIPv4IPv6Link AggregationPort Mirroring |
| Jumbo Frames Support | 12,000 Bytes |
| MAC Address Table Size | 16K |
| Security Features | DHCP SnoopingDoS Attack PreventionRADIUS AuthenticationStorm Control |
| Latency | 0.8 to 2.2 µs |
| Forwarding Rate | 98.21 Mpps |
| Switching Bandwidth | 132 Gb/s |
| Packet Buffer | 16 Mb |
| CPU | Quad-Core:Up to 1.8 GHz Cortex A57 |
| Memory | 2 GB |
| PoE per Port | 30 W |
| PoE Power Budget | 480 W |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Supply Type | Internal |
| Operating Temperature | 32 to 77°F / 0 to 45°C |
| Operating Humidity | 90% |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Storage Humidity | 95% |
| Noise Level | 67.0 dB (Active) |
| Certifications | No |
| Cooling System | Fan/Passive Combo |
| Indicator Lights | Yes |
| Rack Mountable | Yes 1 RU |
| Dimensions | 17.3 x 15.7 x 1.7" / 440 x 400 x 43.2mm |
| Weight | 9.5lb / 4.3kg |
| Package Weight | 16.68 lb |
| Box Dimensions (LxWxH) | 21.2 x 18.3 x 4.8" |
10Gbps
24
Netgear
Yes
