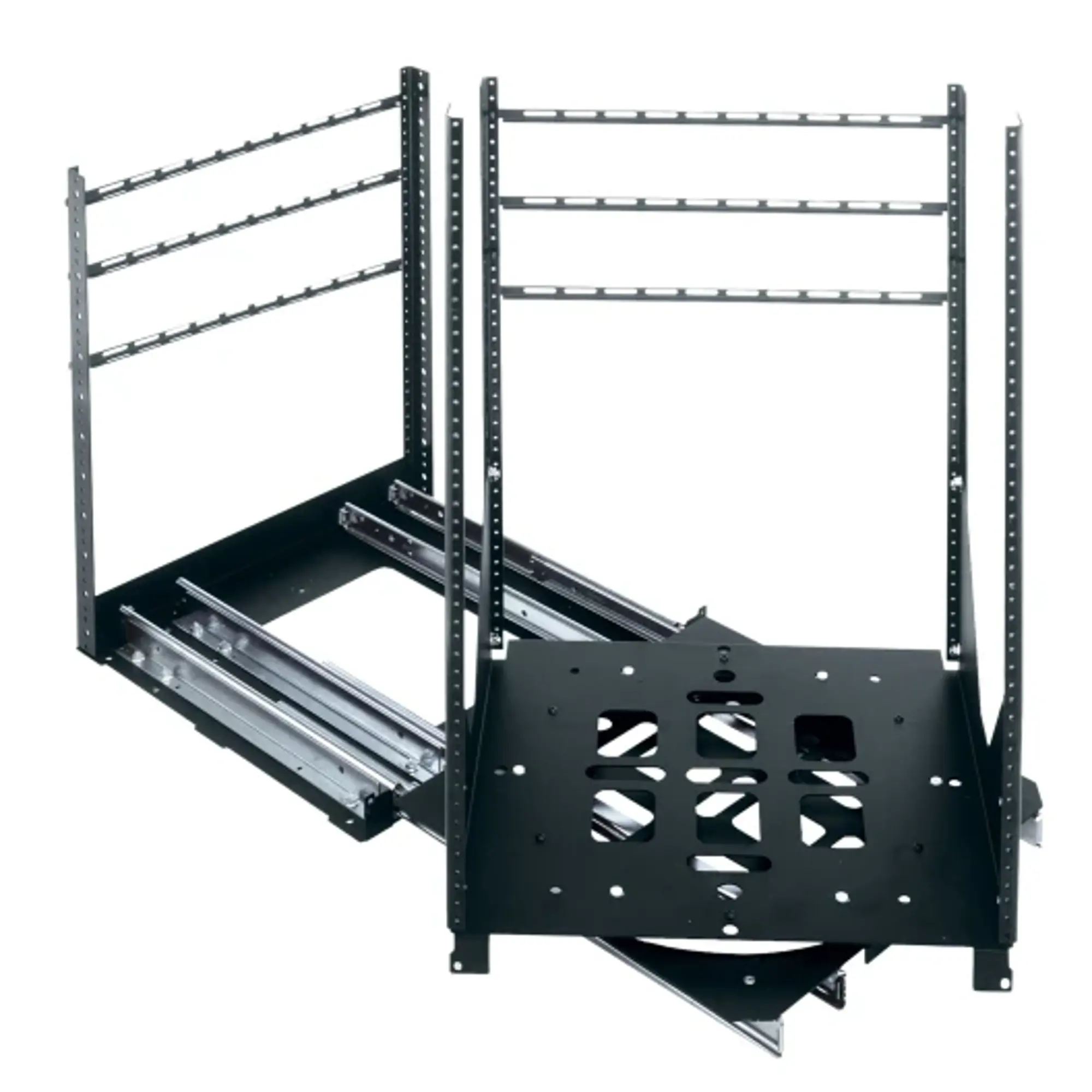

Middle Atlantic SRSR-X-20

SRSR Series Slide Out Rotating Rail System Rack

SRSR-X-20

Specify an SRSR for easy rear access to equipment connections in millwork, cabinets and flush in-wall installations. Available with a 19" or 23" useable depth, the SRSR system extends and rotates 90º in either direction, making it ideal for smaller systems.

• Depth 23.14 in
• Height 38 in
• Rack Units 20 RU
• Shipping Weight 43 lbs (19.5 kg)
• Usable Depth 21.25 in
• Usable Height 35 in
• Weight Capacity 200 lbs (90.7 kg)
• Width 19.13 in

• Removable rack frame allows in-shop integration and on-site installation of equipment
• Locks in the extended position for simplified equipment integration
• Rotating equipment bay locks in place at 0º, 60º and 90º for easy installation and servicing
• Self-centering mounting base makes it simple to align system within cabinet opening
• Rear cable support works in conjunction with rear rackrail for effective cable management
• Standard front and rear 10-32 threaded rackrail with marked spaces

• Cutsheet
