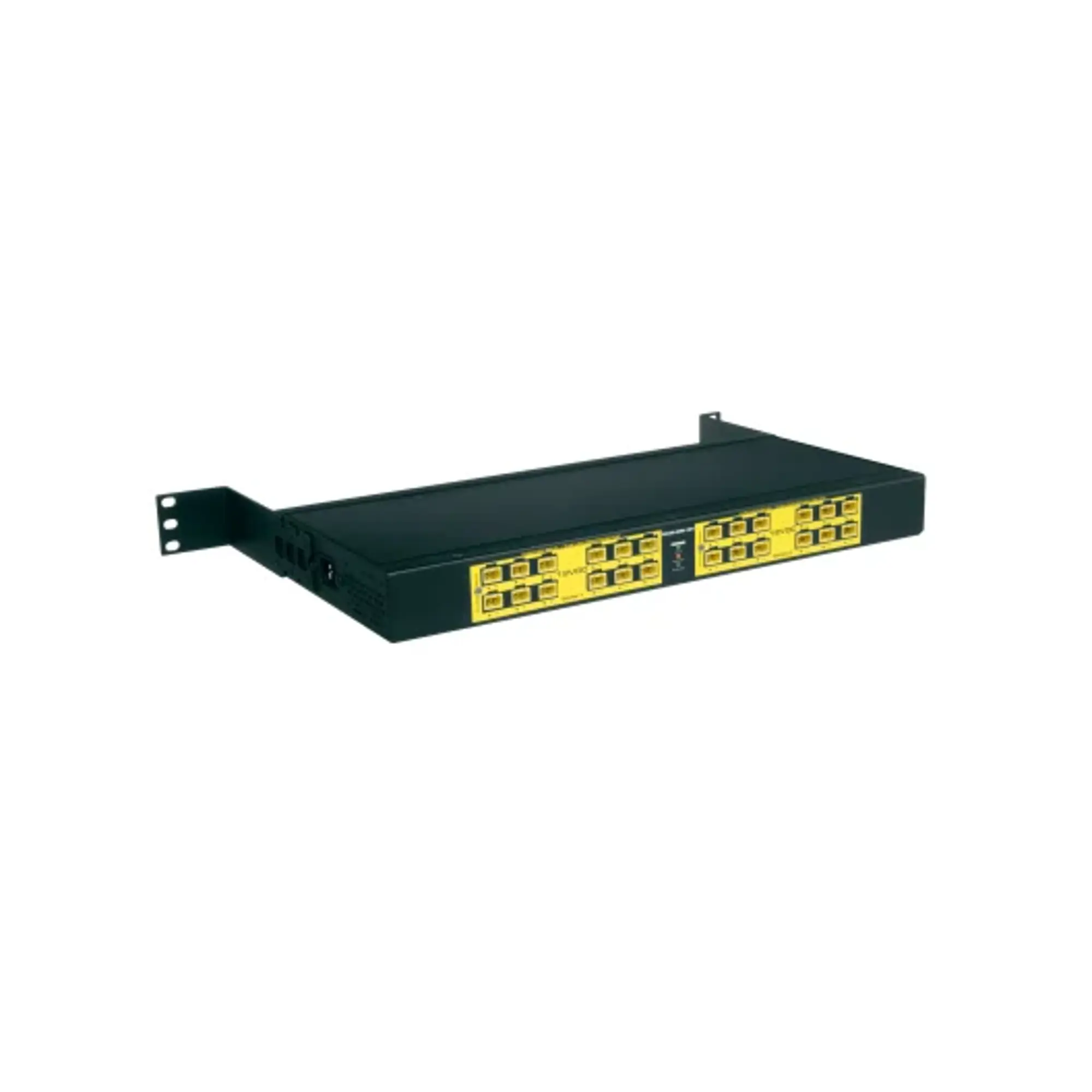

Middle Atlantic PD-DC-300-12V

300W Maximum Power DC Power Distribution With 12V Outputs

PD-DC-300-12V

Clean up your rack by replacing messy, space consuming wall warts and power strips with the Select Series DC Power Distribution designed for AV, security, and networking applications. The DC Power Distribution PDUs allow you to optimize installations that involve a multitude of devices in varying voltages. The PDUs provide high current capacity to an extensive number of outputs, maximizing the same voltage in a single unit or splitting between the most popular voltages. Additionally, with flexible mounting options, you can bring DC Power to a typical rack unit, small enclosure, or wall box. Plug it in, feel confident, and simply focus on creating an amazing AV experience.

• AC Voltage Input 100-240V
• Amps 10 Amp
• Cord Length 6 ft (1.8 m)
• Depth 7.26
• Height 1.75
• Shipping Weight 8.1 lbs (3.7 kg)
• Volts DC 12 VDC
• Watts 300 W
• Width 19

• 12V, 25A Max (300W)
• Outputs on outputs. Industry-leading number of outputs. Power as many as 24 devices.
• Protect your equipment.
• Basic surge protection and overload protection on the AC input
• Individual redundancy built in with auto-resetting PTC overload protection on each individual output
• Ultimate mounting flexibility. The reversible, adjustable mounting ears support many mounting methods. You can even mount the unit to the back or the side of the rack!
• Know your colors. Color-coded screw terminal connectors with industry standard voltages and polarity labeling are included for easy identification.
• 5 volts indicated by orange connectors
• 12 volts indicated by yellow connectors
• 24 volts indicated by red connectors
• 18 volts indicated by blue connectors
• Stay in know. LED indicator lights show activity on each output and alert you to maximum capacity on each voltage bank.
• Mind the cut. The ability to trim your power cords to a suitable length leaves less cable to manage, enhancing aesthetics and increasing airflow.
• Chill out. The ultra-quiet, thermostatic temperature-controlled fan has automatic speed adjustment to keep your PDU from overheating.
• 6ft IEC power cord

• Cutsheet
