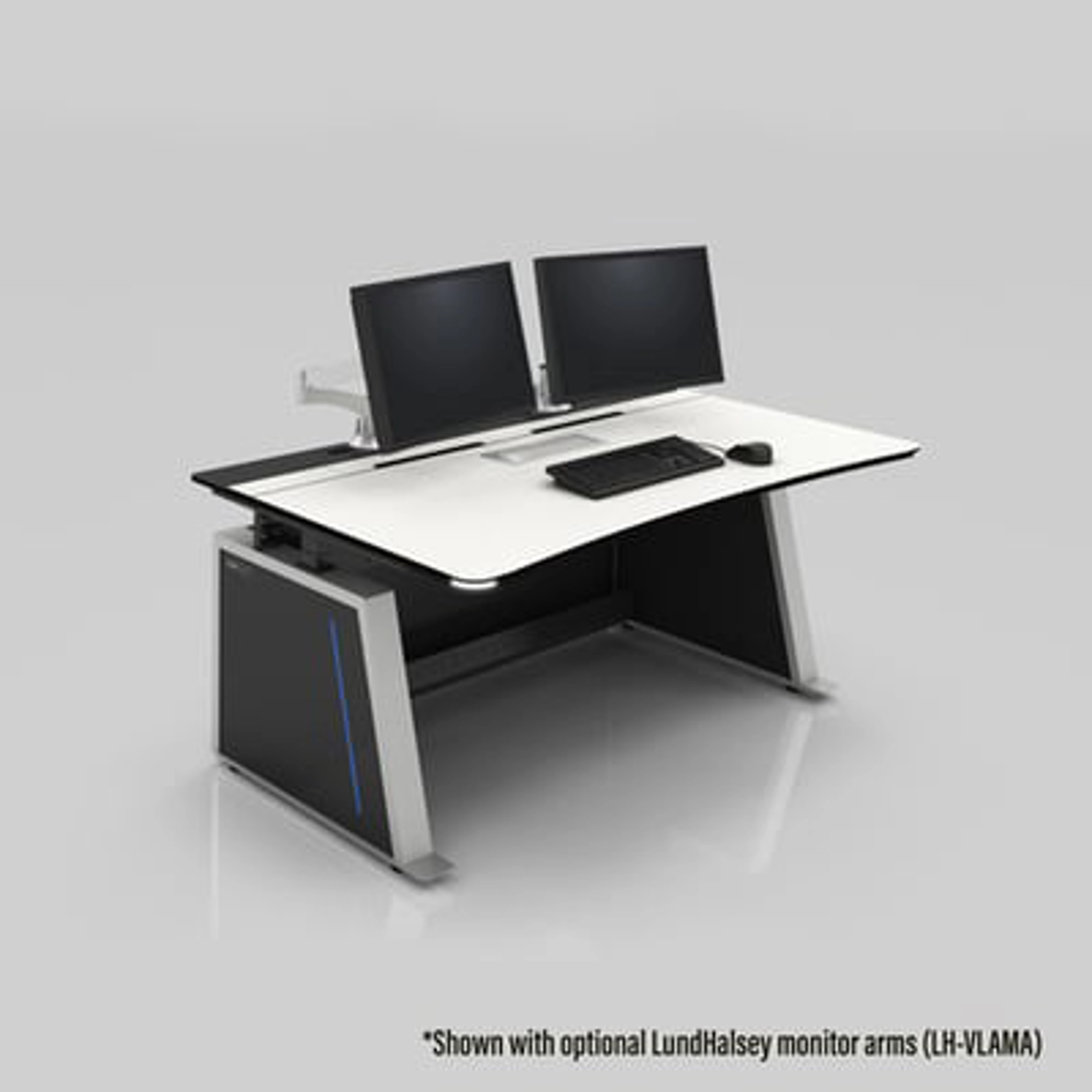

Middle Atlantic LH-VLCMS

Visionline 24/7 Console Medium 63 Inches Wide

LH-VLCMS

Pre-configured and ready for "quick ship" the LundHalsey Visionline 24/7 control room console is supported by a robust frame providing perfect cable management, integration for active equipment and class leading industrial design. Visionline is also designed to ISO 11064, the international ergonomic standard for control room design.

• Depth 39 in (99.1 cm)
• Height 26 in (66 cm)
• Product Weight 253 lbs (114.8 kg)
• Rack Units 6 RU
• Usable Depth 19 in (48.3 cm)
• Weight Capacity 275 lbs (124.7 kg)
• Width 63 in (160 cm)

• This console is pre-configured and available for "Quick-Ship"
• Durable high pressure compact laminate worksurface built to withstand 24/7/365 use
• 63"W x 39"D worksurface for 2 operators
• Multiple integrated channels running the width and height of the console allows for proper cable management from the floor to the equipment to the operators
• Flip up cover on the worksurface for access to multi-purpose compartment
• 6RU of rackmount with front and rear access to equipment
• Cable pass-thru slots on rear worksurface for monitor cables
• Backlit end panels for high aesthetic look
• Compatible with LundHalsey Single Monitor Arm (LH-VLAMA)
• Factory installed corner LED option in worksurface for aesthetics or visual status control. LEDs can be programmed and controlled by control system
• Easily add height adjustability after installation with the Electric Height Adjust Retrofit Kit (LH-VLAHA)
• Designed for command and control rooms: AV control rooms; Network Operation Centres (NOC); Security Operation Centres (SOC).

• Cutsheet
