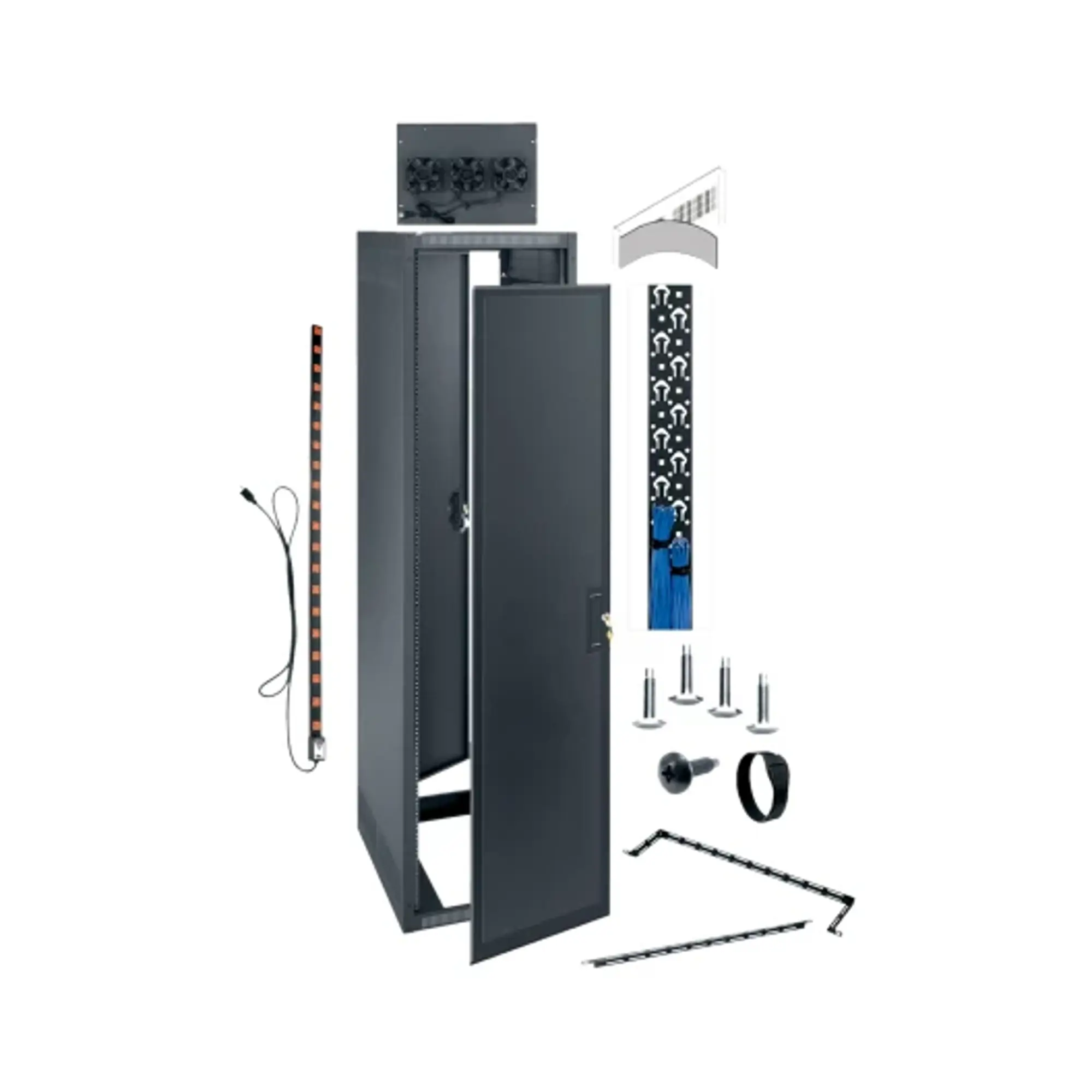

Middle Atlantic ERK-3525-AV

35 RU ERK Series Rack 25 Inches Deep Configured for AV

ERK-3525-AV

An economical standalone rack with solid sides, the ERK Series can also be ganged to create partitioned multi-bay installations for thermal management control, and security. It is seismically certified to protect your components when installed with ERK-Z4 brackets.

• CFM 285
• Depth 25
• Height 65.38 in (166.1 cm)
• Panel Width 19 in (48.3 cm)
• Rack Units 35 RU
• Shipping Weight 186 lbs (84.4 kg)
• UL Load Capacity 2500 lbs (1,134 kg)
• Usable Depth 23.47 in (59.6 cm)
• Usable Height 61.38 in (155.9 cm)
• Width 22 in (55.9 cm)

• 35RU and 25" Deep
• Fully welded construction for maximum strength
• Rack sides include top and bottom venting
• Convenient lacing points and slotted rail brackets for cable management
• Standard front and rear adjustable 10-32 threaded rackrail with numbered spaces
• Includes key-locked standard rear door and solid front door
• Comes configured with integrated fan top, vent blockers, and rear door vent
• Includes (1) LACE-OP lacer strip, (4) straight and (2) offset lacer bars and (12) Velcro straps
• Includes (2) PDT-1020C-NS corded power strips (20A, 10 outlet) corded vertical power strips
• Includes (100) 10-32 threaded rack screws
