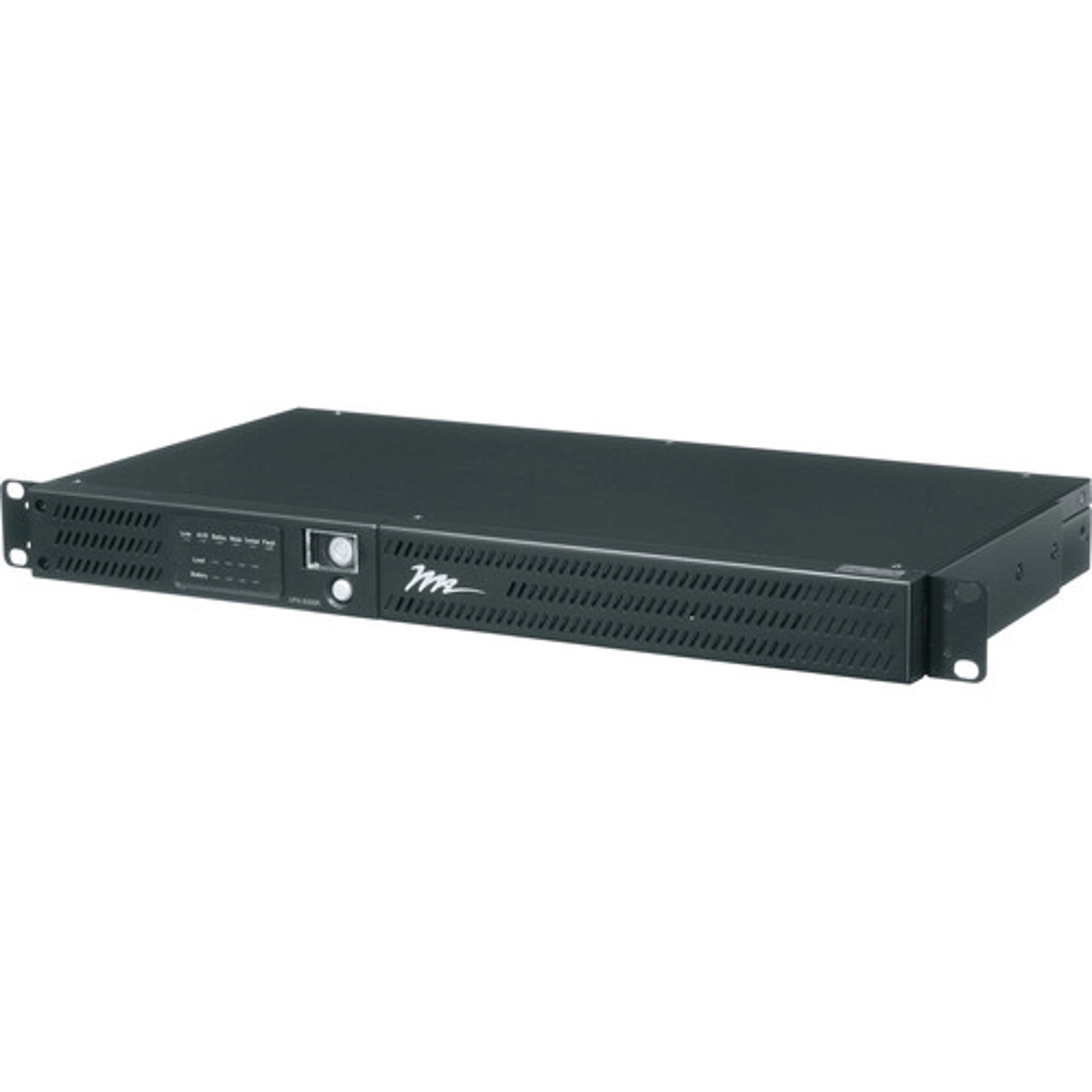

Middle Atlantic UPS-S500R

1 RU Select Series UPS Backup Power, 500VA

UPS-S500R

Select Series UPS Backup Systems are a competitively priced option for ensuring uptime of equipment in the event of a power outage or power anomaly. Select UPSs are designed for both AV and Security applications. Plug it in, feel confident, and simply focus on creating an amazing AV experience.

• Cord Length 10 ft (3.1 m)
• Depth 9.06 in (23 cm)
• Height 1.73 in (4.4 cm)
• Mounting Depth Max 32 in (81.3 cm)
• Mounting Depth Min 19 in
• Rack Units 1 RU
• Shipping Weight 20.4 lbs (9.3 kg)
• VA Rating 500VA
• Width 19 in (48.3 cm)

• 500VA (1 RU)
• The control you need to remotely monitor the uptime of your equipment. If remote monitoring and control of the UPS is necessary for your AV system, you can achieve that with an optional IP card.
• Quality protection without the price tag. Select UPSs use a simulated sine wave, keeping the cost down while keeping your equipment protected and powered.
• Make the switch (almost instantly.) In just 8ms of a power outage or anomaly, the UPS will transfer equipment to battery power.
• Prevent the silent death of your equipment. Over and under voltage slowly degrade your equipment and shorten its lifespan. With automatic voltage regulation (AVR), the UPS will switch to battery and power your equipment till the voltage returns to a normal level.
• Choose which equipment to prioritize. With separate critical and non-critical outlet banks, should an extended power outage occur, the UPS will cease powering the non-critical equipment via load shedding.
• Protect your equipment. Each UPS comes with basic surge protection and EMI filtering.
• Stay in the know. An LED status indicator on the front of the UPS assures you your equipment is still being powered, alerts you of low battery level, or of battery overload.
• Replace the battery pack with ease. The hot swappable battery pack can be easily replaced via the front panel for easy service without disrupting the system.

• Cutsheet
