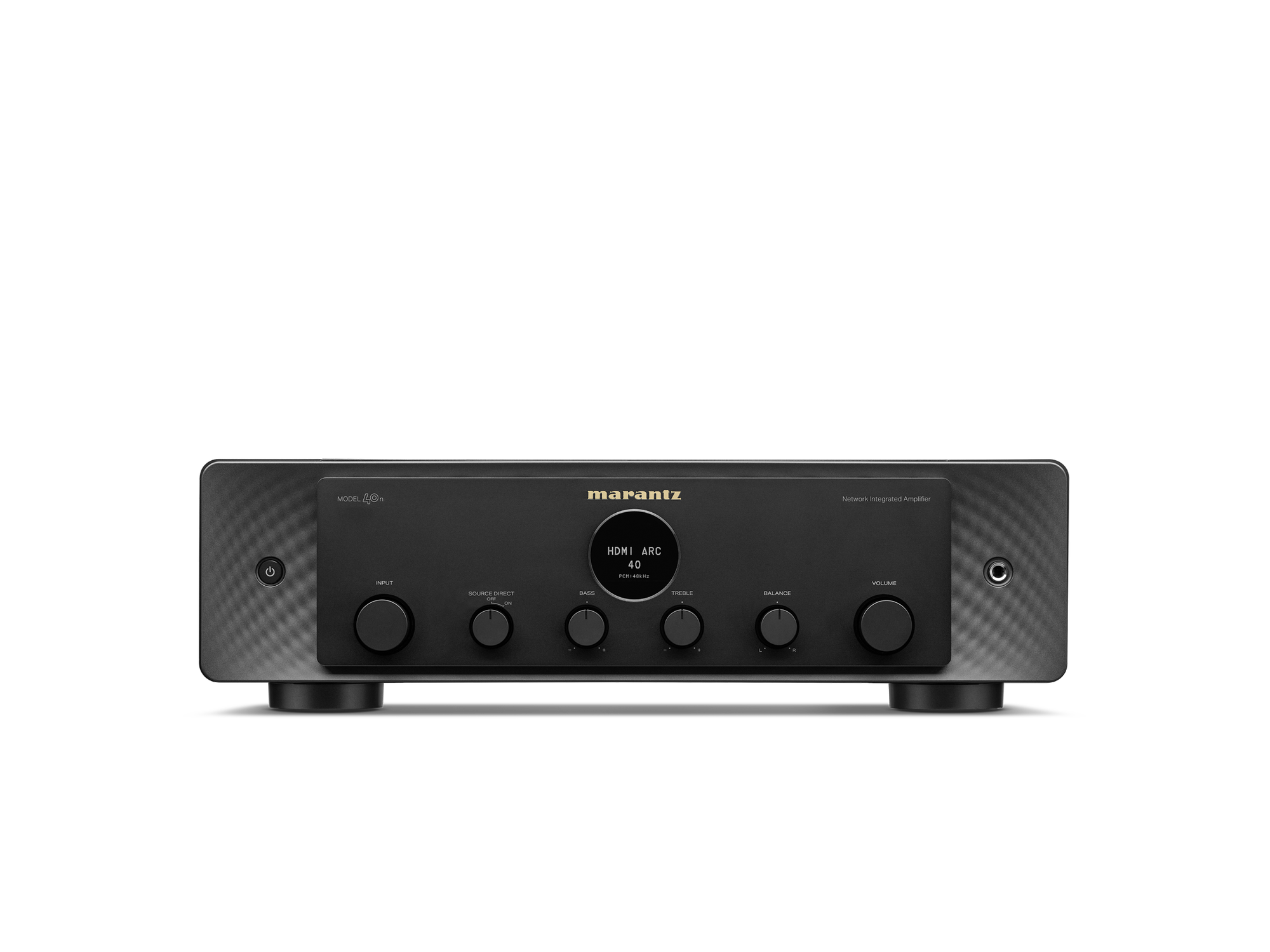

Marantz MODEL 40n (black)

70W Premium Integrated Stereo Amplifier Powered by HEOS with HDMI ARC

Model 40n

Marantz has reimagined the integrated amplifier for the digital age while preserving a luxurious analog feel and sound.

• Rated Output Power 70W + 70W (8ohm)
• 100W + 100W (4ohm)
• Power Amplifier Circuit HDAM-SA3
• Power Transformer Double Shielded Toroidal
• Volume Electric
• Bass / Treble / Mid / Balance Control yes / yes / - / yes
• Source Direct yes
• Frequency Response 5Hz - 50kHz
• Total Harmonic Distortion 0.02% (20Hz - 20kHz, 8Ω)
• Dumping Factor 100
• Input Sensitivity: Phono input 2 mV / 47 kohm
• Input Sensitivity: CD/Line/Recorder 220 mV / 20 kohm
• Input Sensitivity: Power Amplifier input 1.6 V / 15 kohm
• SN Ratio PHONO (MM): 87dBCD: 106dB
• Phono Input yes (MM)
• Marantz Musical Phono EQ
• Ext. Pre Input (Power Amp Direct) yes
• Preout no
• Analog Input (include Phono) / REC Out (RCA) 4 (PHONO, CD, LINE,RECORDER) / 1 (RECORDER)
• Optical input 1
• Coaxial input 1
• HDMI 1 / 0 (ARC) PCM only
• USB A 1 (Rear), Mass Storage Class5V/1A
• Speaker Terminal SPKT-1+
• Remote Control Bus Terminal yes (RC-5 In / Out)
• Subwoofer Pre-out Low Pass Filter Selectable
• 40 Hz / 60 Hz / 80 Hz /100 Hz / 120 Hz
• App HEOS App
• Remote Controller System Remote
• Features (Amp and CD Player Control)
• Weight in lbs 36 lbs 13 Oz
• Carton Weight (incl. product) in lbs 43 lbs 3 Oz
• Power Consumption 220W, 0.3W (Standby)
• AC Inlet yes
• Quick Start Guide Included
• Packaging Dimensions (W x H x D in inches) 21" x 10" x 20.6"
• Product Dimensions (W x H x D in inches) 17.4" x 5.1" x 17"
• Panel Color SG / BK
• Front Center Panel Aluminum
• Top Cover Steel
• Edge Lighting yes (Dimmer)
• Volume Knob Aluminum
• Input Selector Aluminum
• Bass/Treble/Balance/ REC Out Sel knobs Aluminum
• Power button Aluminum
• Chassis Material SECC
• Bottom Layer Thicker double layer

• Artisinal Design
• 2.2 Channels
• 70 Watts Per Channel
• Custom HDAM
• 1 HDMI Input plus ARC
• 5 Year Warranty

• Cutsheet
