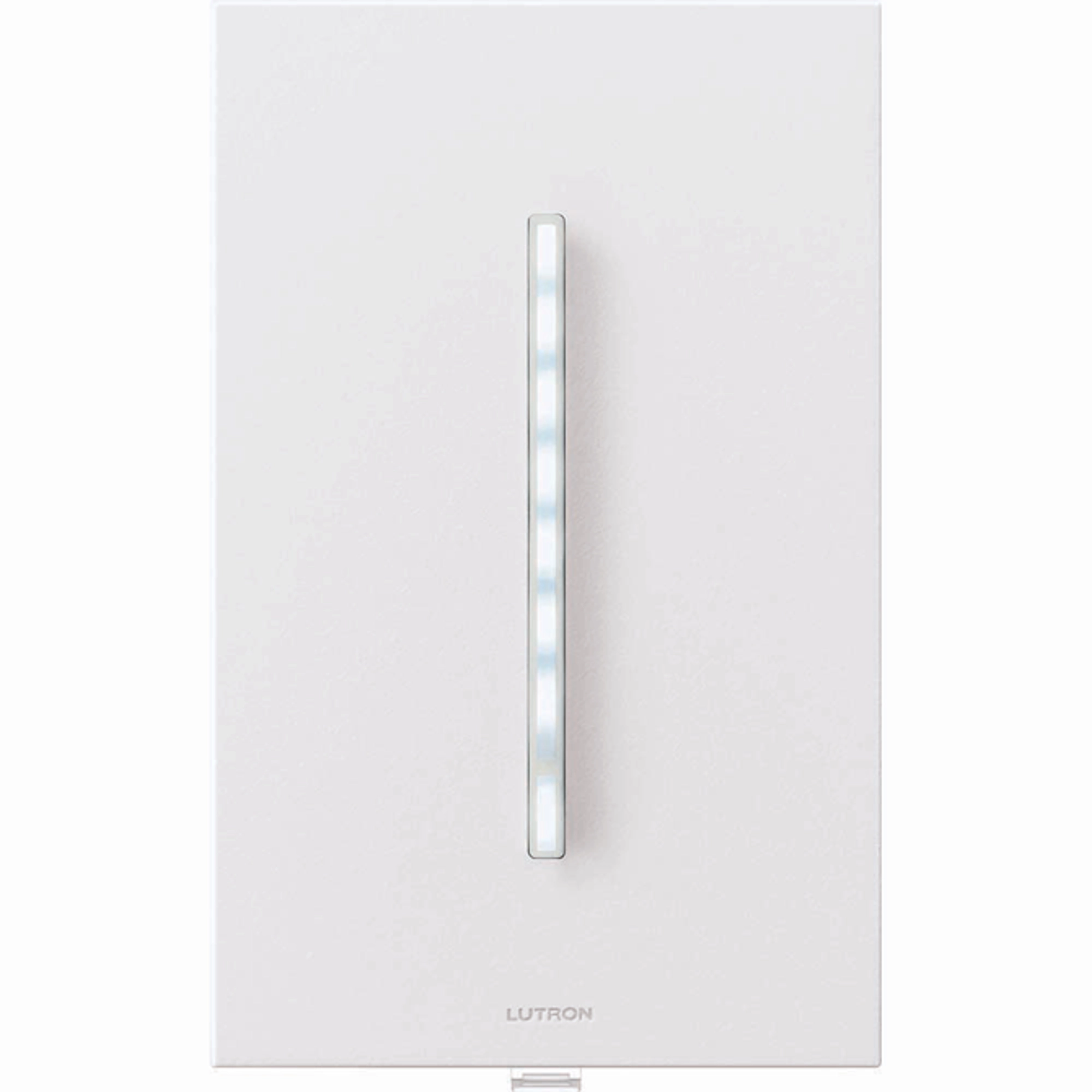

Lutron RRT-G25LW

RadioRA 2 Architectural RF GRAFIK T Local Control

RRT-G25LW

RadioRA 2 architectural RF GRAFIK T local controls function much like standard dimmers or switches, but can be operated as part of a lighting control system. GRAFIK T controls are useful in locations where single circuits of lighting need to be dimmed or switched.

• GRAFIK T controls will only fit into G openings
• Wallplate and wallplate adapter sold separately

• Clear Connect RF Technology
• 250 W Dimmable LED
• 600 W Incandescent / Halogen
• 400 VA (300 W) Magnetic Low-Voltage with Halogen based lamps
• 3.3 A (400 VA) Dimmable Fluorescent
• 3.3 A (400 W) Hi-lume 1% 2-wire LED driver (10 driver maximum)
• Neutral connection available
• Multi-location dimmer

• Controls include dimmers, switches, and companion devices.
• Simple touch control.
• Distinctive architectural aesthetic.
• Softly lit white LEDs indicate light level and coordinate with any decor.
• Advanced microprocessor dimming technology for control of dimmable LED lamps. 1
• Low-end and high-end trim are available for improved LED dimming performance (dimmer only).
• Optional neutral connection available for superior LED dimming performance (CL dimmer only). 2
• Phase selectable technology allows forward or reverse phase dimming for compatibility with more load types.
• Installs in single-pole or multi-location applications. Companion devices are available for multi-location control with dimmers and switches (maximum 4 companion devices per dimmer or switch, 1 main control per circuit).
• Use Lutron GRAFIK T wallplates (sold separately). See the Colors and Finishes on page 3 for details.
• Lutron GRAFIK T wallplates snap on with no visible means of attachment.

• Cutsheet
