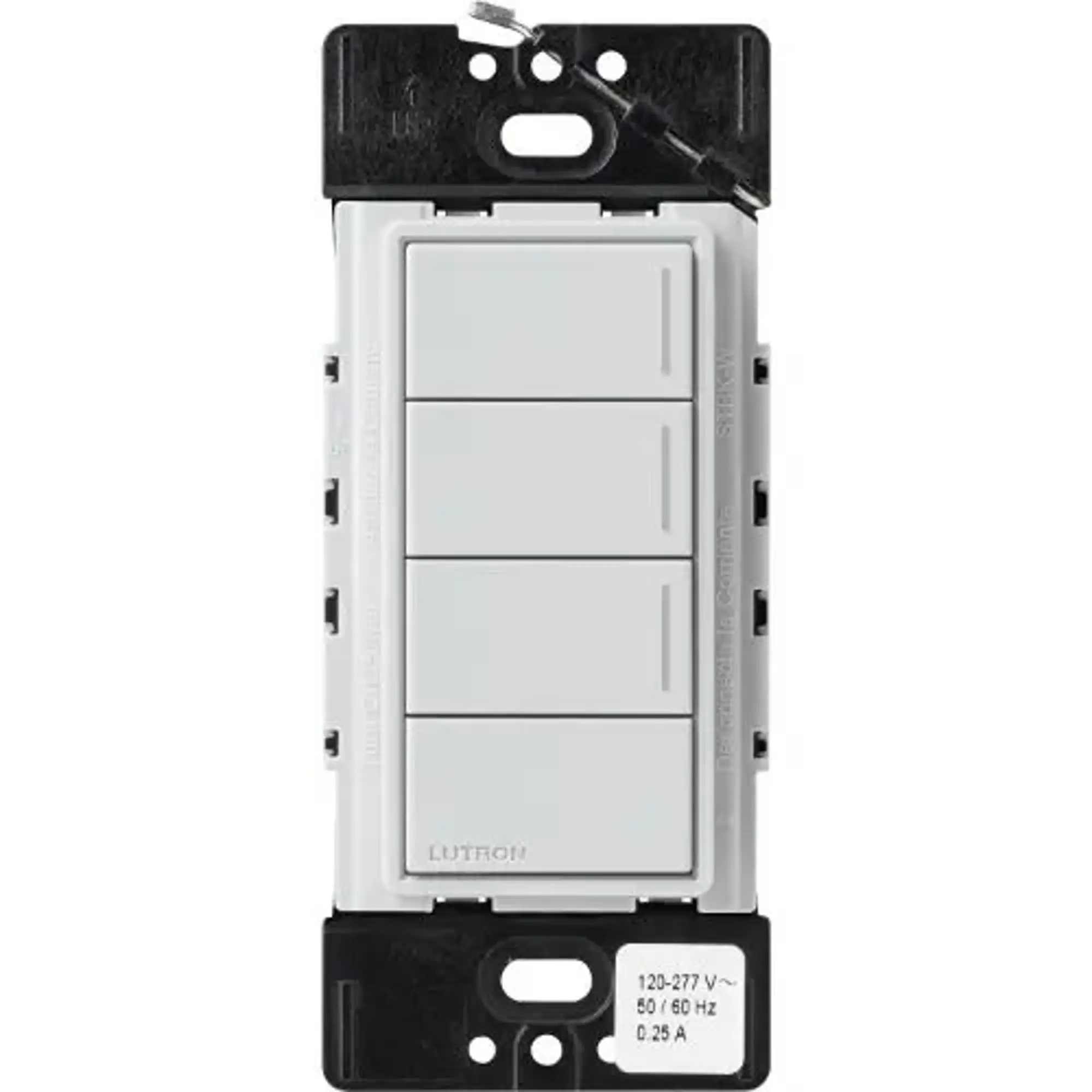

Lutron RRST-W3RL-MI

RadioRA 3 Sunnata Keypad

RRST-W3BRL-MI

RadioRA 3 Sunnata keypads provide homeowners with a simple and elegant way to operate lights, shades / draperies, motorized screens, and many other devices.

Sunnata keypads feature large, easy-to-use buttons. LED bars on each button aid in locating the buttons in low light conditions. Keypads are available in a variety of finishes allowing the color to complement the aesthetics in a space.

Keypad markings are important for programming and use of the keypads when installed. The marking color has been chosen for increased readability. Default markings are provided as a standard while custom-personalization button kits can be designed to describe its programming and redeemed using the Lutron Designer software.

Personalized replacement button kits can be changed in the field, after installation. This allows for the keypad to be changed to a variety

of finishes, colors, button configurations and

personalized markings.

Use with Lutron Designer (Claro) wallplates. Wallplates are sold separately. Lutron Claro wallplates snap on with no visible means of attachment.

• Field-replaceable buttons
• Neutral Wire Required

• At the press of a single button, lights fade ON or OFF to desired levels and shades/draperies open or close to desired positions.
• Light levels and shade/drapery positions can be fine-tuned by pressing and holding the raise / lower buttons.
• Programmable to select scene or room preset levels or positions.
• Adjustable status LED intensity through system level programming.
• Configurable raise/lower selection using programming software.
• Last button pressed (default) - devices controlled by the last button pressed will raise / lower.
• Double-tap - devices controlled by a double-tapped button will raise /lower.
• Programmed devices - only the devices programmed to the button will raise/lower.
• Keypads include one credit redeemable for a single custom personalized replacement button kit through the Lutron Designer software.
