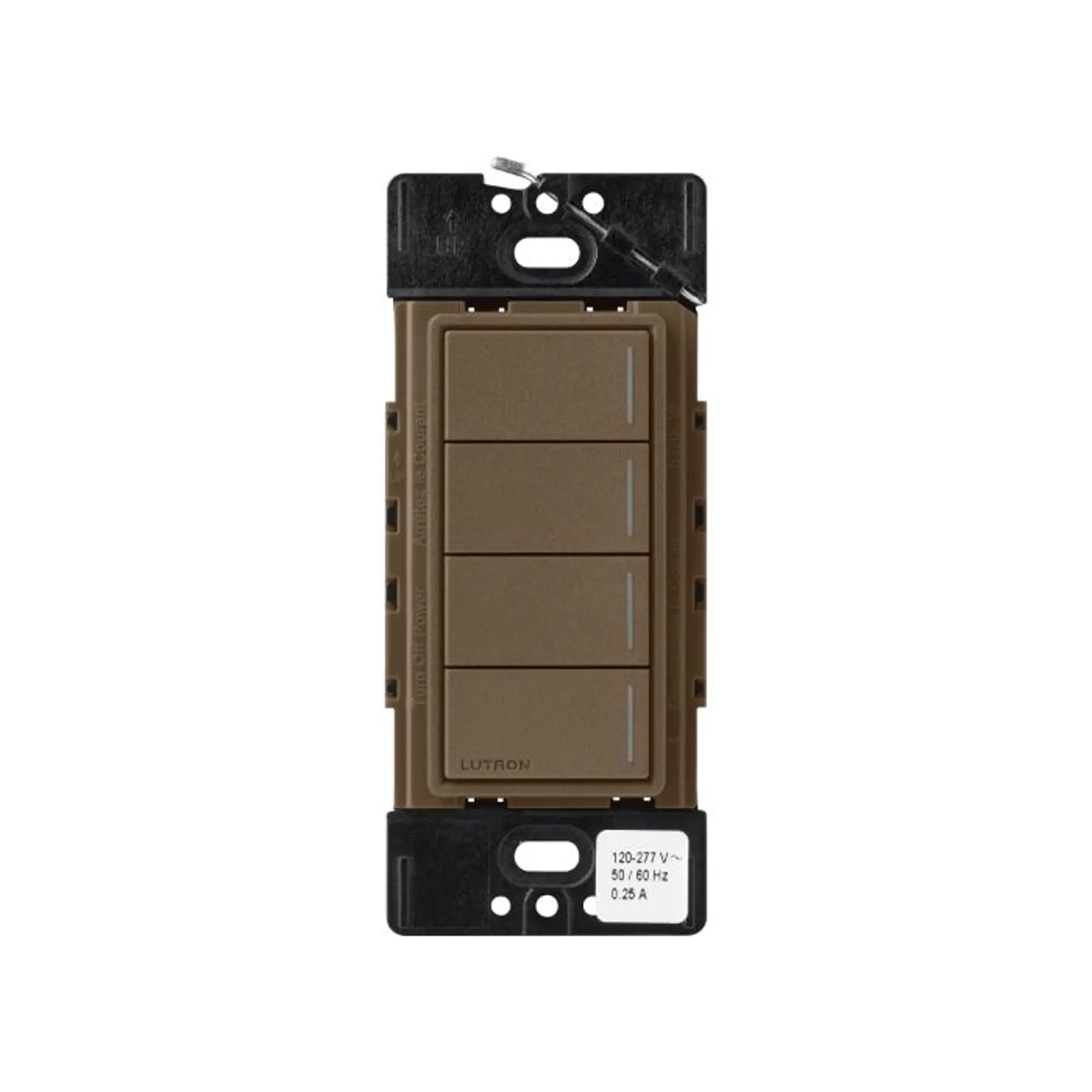

Lutron RRST-HN4B-EP

Sunnata RF Hybrid Keypad

RRST-HN4B-EP

Hybrid keypads function as a dimmer and keypad combined into a single device. Hybrid keypads are great for retro-fit applications since they eliminate the need to install two separate devices.

Hybrid keypads feature large, easy-to-use buttons. LED bars on each button aid in locating the buttons in low light conditions. Printing colors are pre-selected to provide increased readability, regardless of the keypad finish or color. Hybrid keypads include a Front Accessible Service Switch (FASS) for safe lamp replacement.

Default printing provides the ability to immediately use the keypad in the space. Once the required custom printing has been identified, a replacement button kit can be redeemed using the RadioRA 3 setup software.

Replacement button kits are available in a variety of colors and finishes with custom printing to clearly identify each buttons function. The flexible design of the keypads allows the color, number of buttons, and the configuration of the buttons to be changed in the field, after installation.

Use with Lutron designer-opening wallplates (sold separately). Lutron wallplates snap on with no visible means of attachment.

• Incandescent Wattage 450W
• LED / CFL Wattage 150W
• Neutral Wire Required

• At the press of a single button, lights fade ON or OFF to desired levels and shades / draperies open or close to desired positions.
• Light levels and shade / drapery positions can be fine-tuned by pressing and holding the raise / lower buttons.
• Programmable to select scene or room preset levels or positions.
• Adjustable status LED intensity through system level programming.
• Internal dimmer is controlled by the keypad buttons to verify proper installation prior to system programming.
• Internal dimmer can be assigned to any button on the hybrid keypad and can be programmed to be controlled by any keypad.
• Configurable raise / lower selection using programming software.
• Last button pressed (default) - devices controlled by the last button pressed will raise / lower.
• Programmed devices - only the devices programmed to the button will raise / lower.
• Keypads include one credit redeemable for a single custom printed replacement button kit through the setup software. Terms and conditions apply.
• Advanced dimming technology designed for compatibility with a broader range of high- efficiency bulbs.
• Programmable high-end and low-end trim settings to customize the dimming range and optimize LED compatibility.
• Programmable phase selection to optimize compatibility with different load types
