Lutron RR-VCRX-WH

RadioRA 2 Visor Control

RR-VCRX-WH

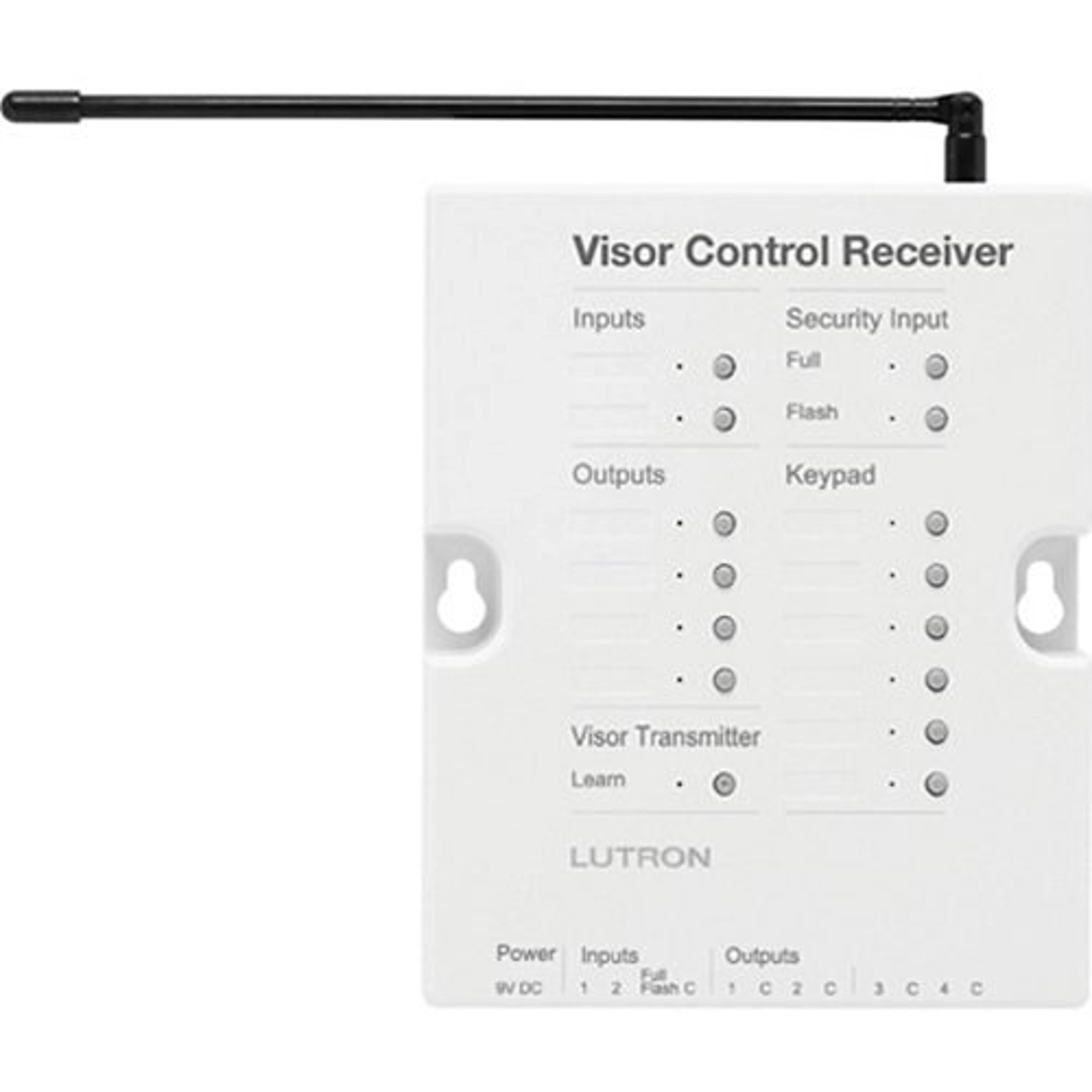

RadioRA 2 Visor Controls allow lights, shades / draperies, and other equipment to be controlled from the car with just a touch of a button on a Visor Control Transmitter or a HomeLink® compatible visor control. Up to ten (10) Transmitters can be used with a Visor Control Receiver.

The Receiver provides two (2) Contact Closure Inputs (CCI) for integration with other systems and one (1) CCI for security systems. The CCIs

can be configured to accept maintained or momentary contact closures. The security input is always a maintained CCI.

The Receiver also has four (4) maintained or momentary Contact Closure Outputs (CCO) to control up to four (4) garage doors or motorized gates.

Pre-printed and blank labels are included with the Visor Controls for naming scenes or buttons on both the Receiver and the Transmitter.

• 2 Contact Closure Inputs, 1 security input, and 4 momentary or maintained Contact Closure Outputs

.

• Cutsheet
