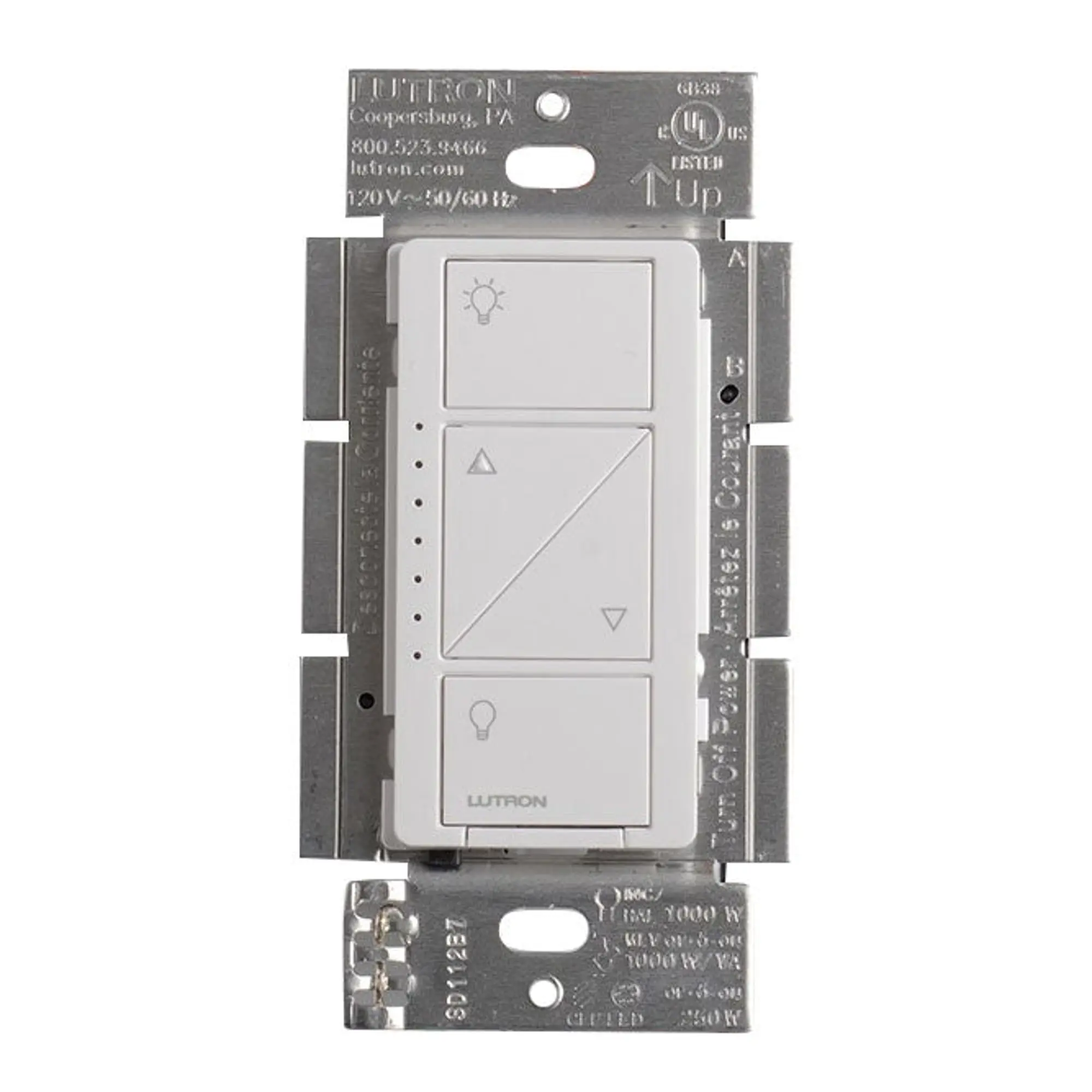

Lutron PD-10NXD-WH

Caseta Wireless In-Wall Dimmer PRO

PD-10NXD-WH

The Caseta Wireless In-Wall Dimmer PRO controls lighting loads, both directly and remotely when paired with Pico remote controls, providing a system that delivers convenience and ease of installation. The Caseta Wireless In-Wall Dimmer PRO uses Lutron patented Clear Connect RF Technology which enables wireless communication with Pico remote controls, Caseta motion sensors, and the Lutron Smart Bridge and Smart Bridge PRO.

• UL Listed
• Dimmable LED up to 250W
• Incandescent up to 1000W

• Works with Pico remote control
• Includes Front Accessible Service Switch (FASS) for safe lA replacement
• Lutron patented Clear Connect RF TechnologyWorks throughWalls and floors
• Lutron patented Clear Connect RF Technology works through walls and floors.
• Includes Front Accessible Service Switch (FASS) for safe lamp replacement.
• Neutral-optional dimmer is ideal for retrofit applications when used in two-wire mode, and provides better performance with LEDs when neutral is connected.
• Compatible with Lutron Hi-lume A-Series LTE 2-wire LED driver, PHPM interfaces (for large wattage loads and/or ELV loads) and GRX-TVI interfaces (for 0-10 V- driver loads). Neutral wire is required for drivers and interfaces (for 0-10 V- driver loads).
• Works with compatible dimmable screw-in LEDs as well as incandescent, halogen, and halogen-based MLV loads (neutral wire required for MLV).
• Compatible with dimmable ballasts.

• Cutsheet
