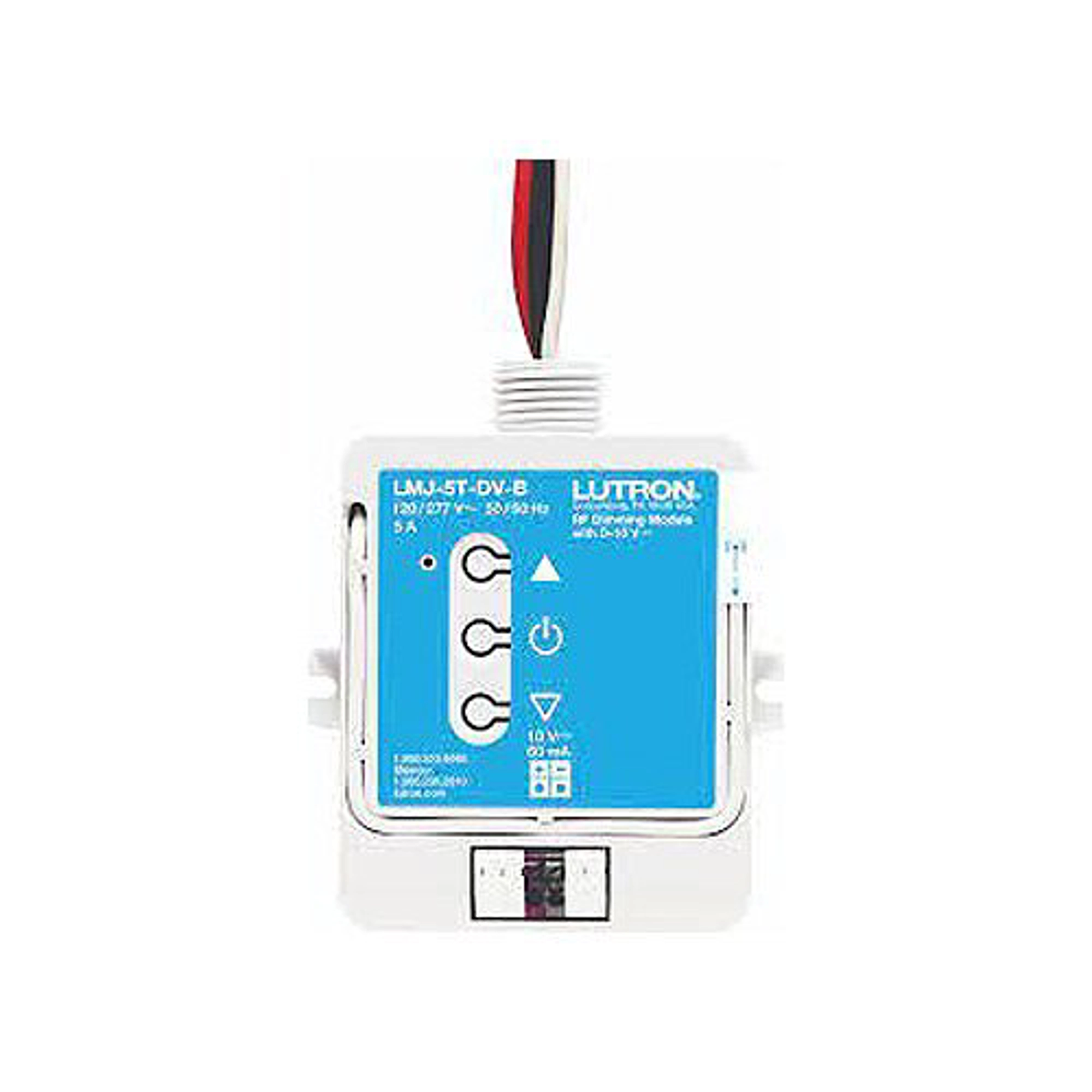

Lutron LMJ-5T-DV-B

RF Dimming Module with 010V Control

LMJ-5T-DV-B

The RF dimming module with 010 V- control is a radio frequency (RF) control that operates 010V-controlled fluorescent ballasts or LED drivers based on input from RA2 Select, RadioRA 2, RadioRA 3, and HomeWorks systems.

• Load 010 V- Control Link Maximum Load: 60 mA, source or sink automatically configures. Control link compatible with ANSI E1.3 2001 (R2006), IEC 60929 Annex E.
• Switched Maximum Load: 5 A lighting. No minimum load requirements. Load types include, but are not limited to: MLV, ELV, Incandescent, Magnetic fluorescent, Electronic fluorescent and LEDs.

• Compatible with RA2 Select, RadioRA 2, and HomeWorks systems
• Operates 0-10V controlled fluorescent ballasts or LED drivers
• Automatically sources or sinks up to 60 mA to third-party fixtures
• Switches line voltage up to 5 A
• Configurable high- and low-end trim
• Utilizes Lutron Clear Connect RF technology
• Mounts to an electrical junction box through a 1/2 in knockout opening
• Complies with NEC 2011 300.22(C)(3) for plenum use
