Luminys LUM-W02

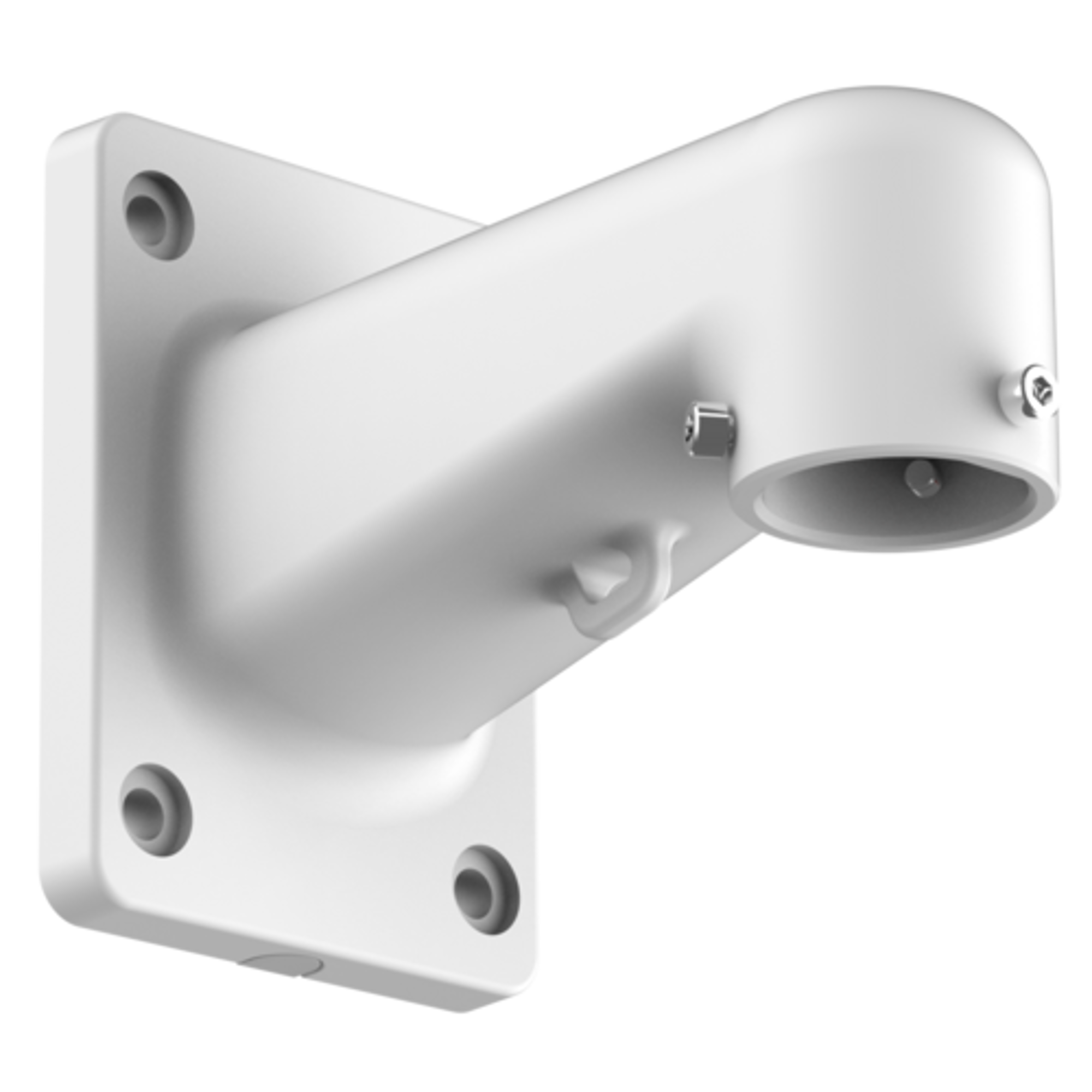

Dome/Turret/PTZ Series Wall Mount Bracket

LUM-W02

Fits select N5D dome, N5T/N3T turret, and P45/P54/P55 PTZ camera models

Fits the following models:

• LumiLuxSmart: N5D-4LA2​​, N5D-8LA2​​, N5D-12LA2​​, N5D-4LAV​​, N5D-8LAV, N3D-4LA2​​, N3D-8LA2​​, N3D-4LAV​, N3D-8LAV, N3W-4LA2
• PTZ: P22-4TA4
• Included with the following PTZ Cameras: P54-4SA25​, P55-4SA45​, P45-8RA25, P54-4DB25​, P44-8DB25, P54-4DA25​

• For Select Standard Size Dome (N5D), Turret (N5T, N3T), and PTZ (P45, P54, P55) Cameras
• Aluminum Construction
• Dimensions (W x H x D): 200.0 mm x 160.0 mm x 115.0 mm (7.87 in. x 6.30 in. x 4.53 in.)
• Max. Load Capacity: 11.0 lb (5.0 kg)

• Cutsheet
