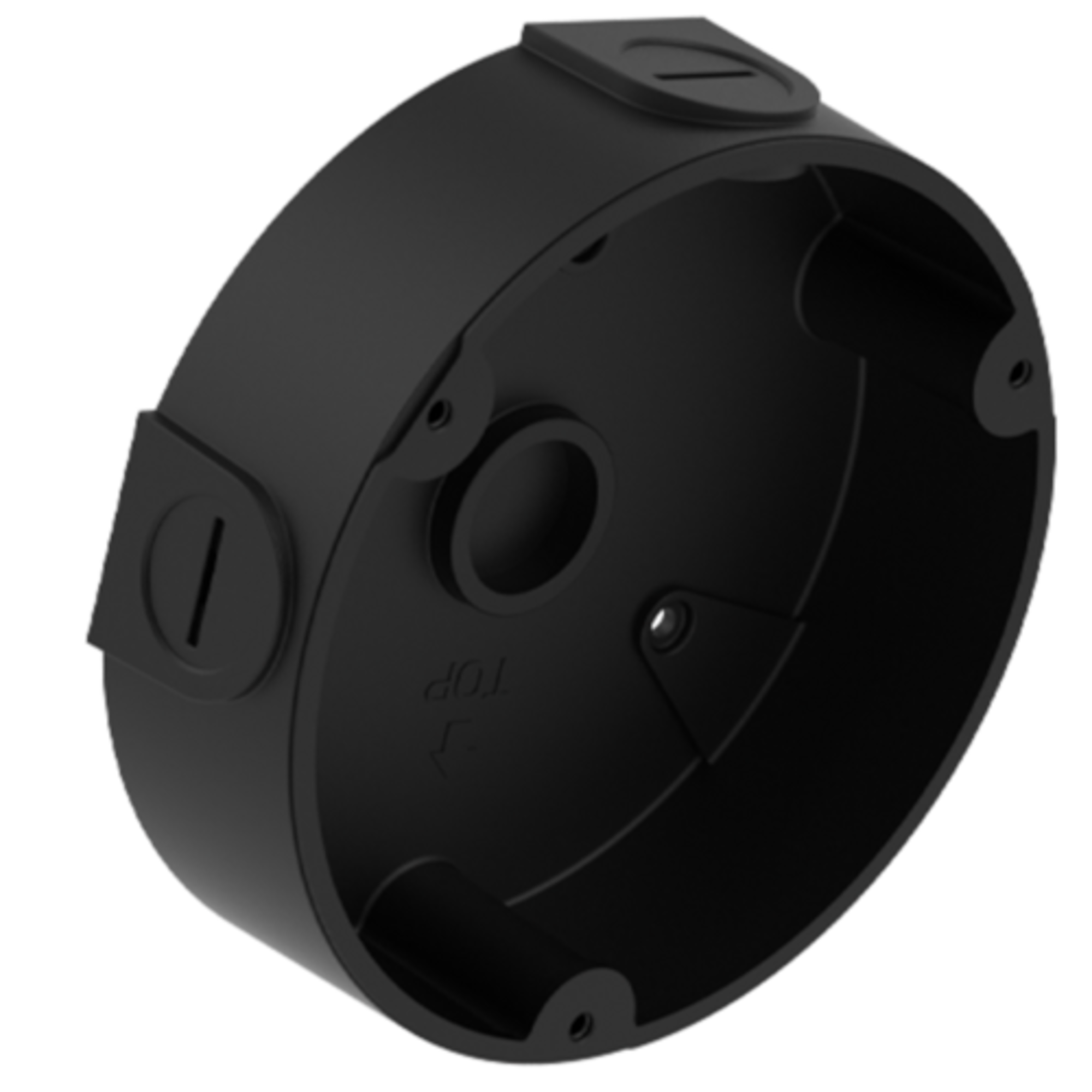

Luminys LUM-J04B

Junction Box for Larger Turret Housing

LUM-J04B

Fits specifically the larger body turret, N5T-8LA2B.

Fits the following models:

• LumiLuxSmart: N5T-4LA2​, N5T-8LA2(B)​, N5T-12LA2​, N5T-4LAV​, N5T-8LAV​, N3T-4LAV​, N3T-8LAV​
• LumiColor: N5T-8CA2​
• LumiDeterrent: N5T-4DA2​, N5T-8DA2​. N5T-8DAV​, N5P-8DA2​

• For Select N5T, N5P, N3T Standard Size Turret Camera Models
• Aluminum Construction
• Dimensions: Φ144.07 mm x 40.00 mm (Φ5.67 in. x 1.57 in.)
• Max. Load Capacity: 3.0 kg (6.6 lb)
• IP66, IK10

• Cutsheet
