Linear 212I
SKU: LIN-212I
MPN: 0-211111
Description
Indoor Flush-mount Keypad
Send to a friend!
SKU: LIN-212I
MPN: 0-211111
Indoor Flush-mount Keypad
Send to a friend!

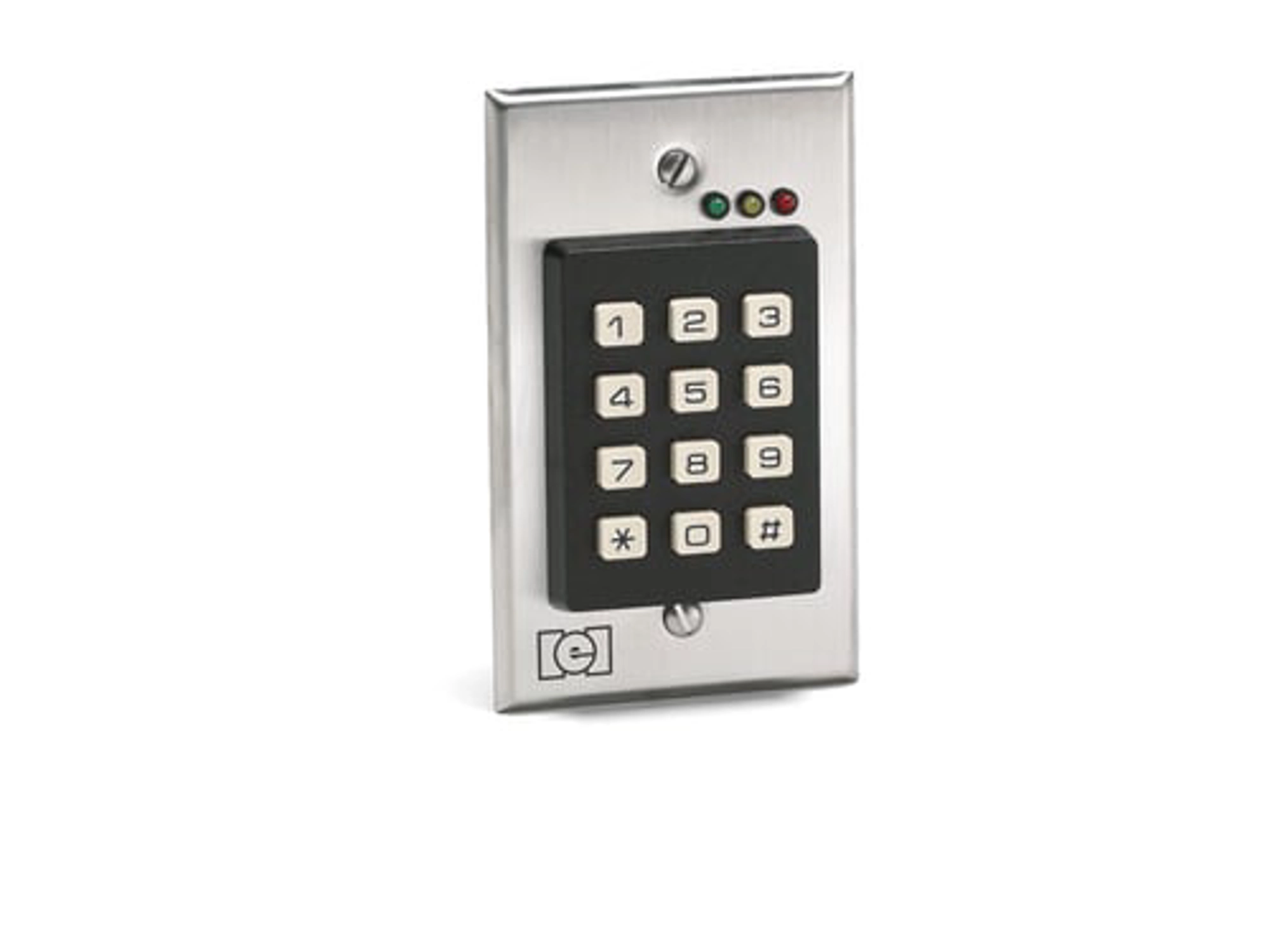

Affordable single door access control keypad designed to meet the indoor flush mount needs of lighter volume access control environments. There are three LED™s to indicate operation status and provide the user with visual PIN entry confirmation. The i style keypad mounts to most standard single-gang electrical back boxes.
| Capacity - Openings | 4 |
| Capacity - Users | 100 To 299 Users |
| Color | US32D Satin Stainless Steel |
| Environmental | Indoor |
| Mounting | FlUSh Mount - No Elec Box |
| Product Type | Keypad |
| Read Format | Keypad |
| Sales Category | Electric Readers And Keypad |
| UNSPSC Code | 43211700 |
| Operating voltage | 12-24 VAC/VDC auto sensing |
| Dimensions | 2.75? W x 4.50? H x 1.3 D |
| Dimensions with optional 293 relay module | 2.75? W x 4.50? H x 1.68? D |
| Current draw | 94 mA maximum (add 30 mA for each relay) |
| Temperature tolerance | -20F to 130F |
