Kanto Installer Series RCT190

Low-Profile Tilting TV Mount

RCT190

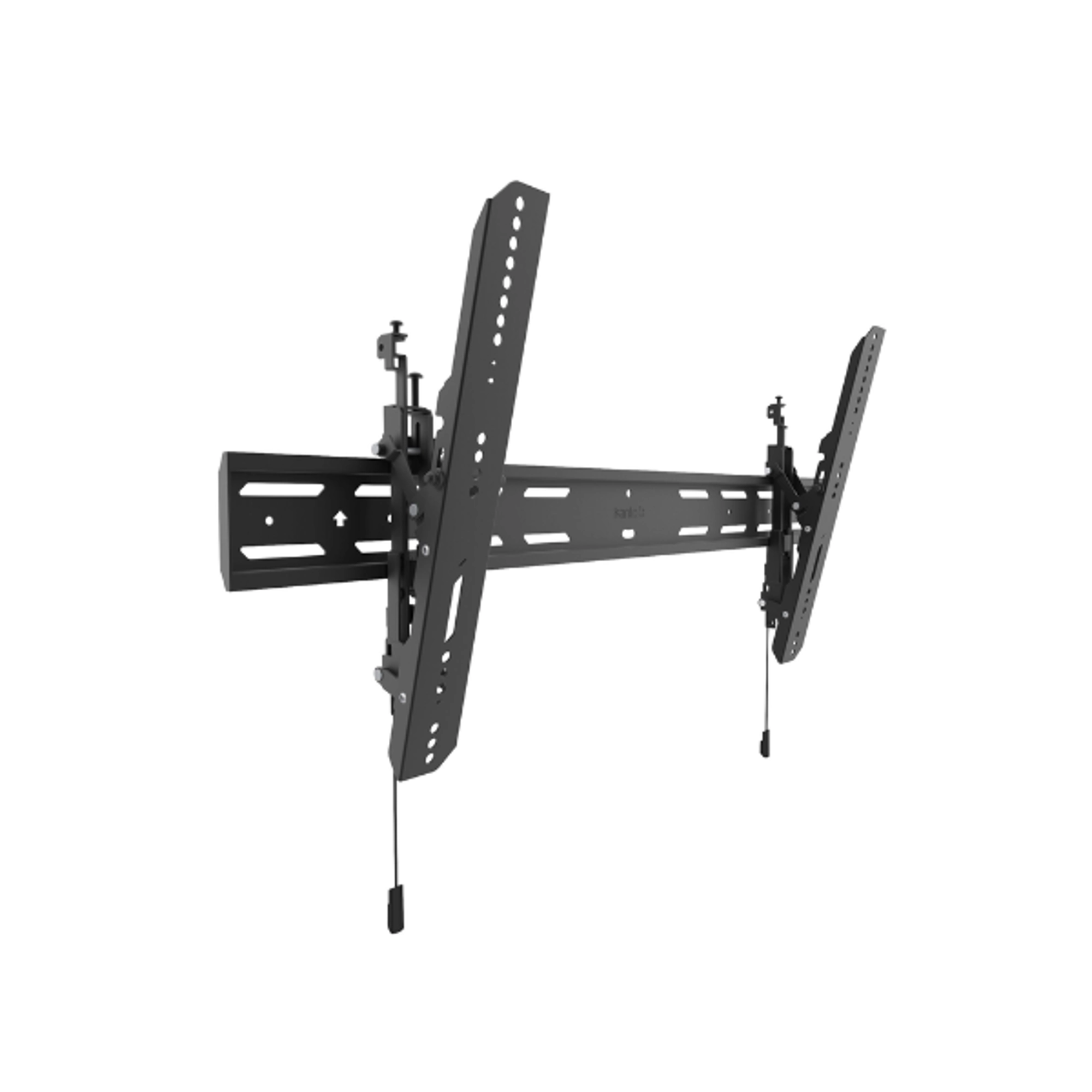

The Kanto RCT190 low profile tilting TV mount is designed to improve line-of-sight with your TV. Its pre-tensioned mounting brackets provide 12° of forward tilt and come equipped with adjustable screws to facilitate precision leveling. Torx screws and a locking feature are also included to protect against theft, while quick-release cords provide an easy way of removing your TV when unlocked. Featuring a 35-inch wall plate, the Kanto PT400 low profile tilting TV mount ensures an easy installation on both 16 and 24-inch stud centers, and comes with all the necessary hardware for wood stud and concrete installations.

• TV Sizes: 40 to 120
• Weight Allowance: 200 lb (91 kg)
• VESA Sizes: 100100 to 800400
• Wall Plate: 34.8 (88.4 cm) wall plate allows mounting to three 16 studs, or offsetting on 24 stud centers
• Shipping box weight: 10.8 lb (4.9 kg)
• Shipping box dimensions: 36.2 x 6.8 x 3.3 (91.9 x 17.3 x 8.4 cm)
• Product weight: 8.2 lb (3.7 kg)

• Tilt your TV up to 12° forward to reduce glare and improve line-of-sight with your screen.
• With a combined thickness of 1.4, the Kanto PT400 low profile tilting TV mounts slim wall plate and mounting brackets allow your TV to sit remarkably close to the wall.
• Measuring 35 wide, the solid steel wall plate can be installed across three studs with 16 spacing, or two studs with 24 spacing.
• Ensure your TV is perfectly level by adjusting the individual screws located on top of each mounting bracket.
• Removing your TV from the wall is as easy as pulling on two quick-release cords. Each cord includes a magnetic end, allowing them to be conveniently tucked out of sight.
• Two Torx screws can be tightened with the provided key to prevent your TV from being removed. Alternatively, a lock can be attached to the mounting brackets to secure them in place (lock not included).
