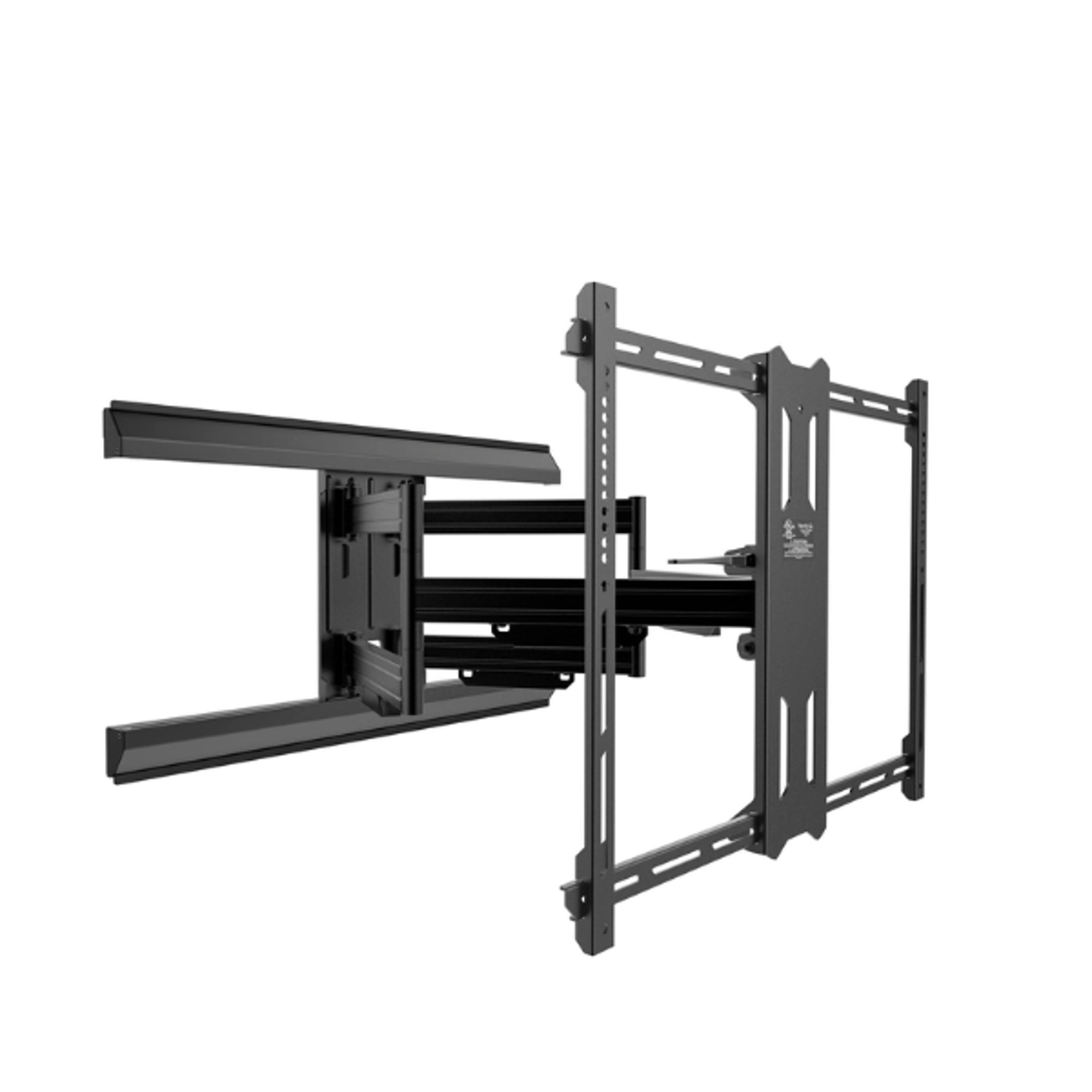

Kanto Installer Series RCAD590

SKU: KIS-RCAD590

MPN: RCAD590

Description

Installer Series Extra Large Articulating TV Mount Full Motion 50"-100" VESA up to 700x500 150lbs 31.3" Extension PMX700

Add to Wishlist

Send to a friend!

Full Motion TV Mount Installer Series

RCAD590

Dont let the size of your TV dictate where you put it. Capable of supporting TVs up to 100, the RCAD590 features two articulating arms that can be horizontally offset to give you the utmost discretion over where your TV is placed. With 31.3 of extension, this full motion wall mount provides enough tilt and swivel movement to ensure you always have the perfect viewing angle. Its low profile design allows your TV to sit 2.6 from the wall when fully retracted and features cable management clips to keep your cables out of sight.

TV Sizes: 50 to 100
Weight Allowance: 150 lbs (68 kg)
VESA Sizes: 200100 to 700500
Wall Plate: 32.4 (82.3 cm); Accommodates dual studs with up to 24 spacing
Shipping box weight: 56 lb (25.4 kg)
Shipping box dimensions: 40 x 20.9 x 4.8 (101.5 x 53.2 x 12.3 cm)
Product weight: 44.5 lb (20.2 kg)

Number of Studs:
Two
Brand:
Kanto Installer Series

The RCAD590 full motion wall mounts solid steel frame safely holds up to 150 lb (68 kg), even at full extension.
Center your TV on the wall regardless of where your studs are located by adjusting the PMX700s arm assembly 11 (27.9 cm) left or right.
The unique design of this articulating wall mount allows your TV to sit 2.6 inches from the wall when fully pushed in.
Easily reach over fireplaces or out of recessed locations with 31.3 (79.5 cm) of extension.
Effortlessly tilt your TV 12° forward or 3° backward with the PMX700s newly designed toolless tilt mechanism.
Maintain a clean, finished appearance while hiding any sign of installation with the aluminum wall plate covers on this fully featured TV wall mount.
Achieve the best viewing angle regardless of where youre sitting by swivelling your TV up to 90 degrees left or right, depending on screen size.
Four cable management raceways located on the bottom of each arm help to keep your viewing area tidy.
Because every installation is unique, this pro series full motion wall mount is carefully packaged with all the hardware you could need. Choose between a variety of bolt diameters and lengths, as well as several spacers to perfectly fit your TV. Lag bolts and concrete anchors are also provided for both wood studs and concrete walls.
