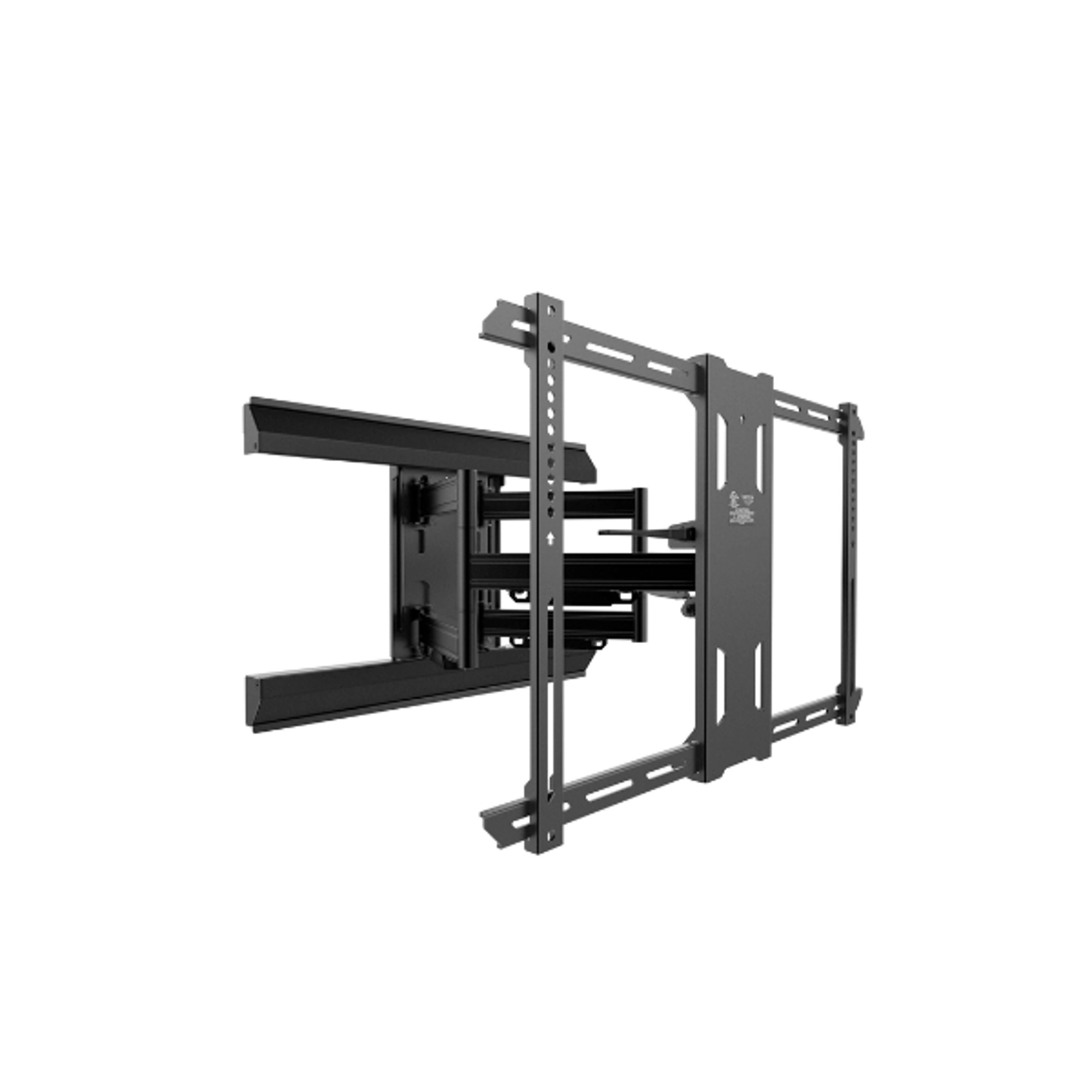

Kanto Installer Series RCAD570

Dual Stud Adjustable Offset Full Motion TV Wall Mount for 40"-90" TVs

RCAD570

PERFECT PLACEMENT

With the ability to offset the articulating arm independently of the wall plate, you’ll be able to position your clients’ TV perfectly on the wall regardless of stud layout.

• Shipping box weight: 34.8 lb (15.8 kg)
• Shipping Box Dimensions: 29.4” x 18” x 4.2” (74.7 x 45.7 x 10.6 cm)
• Product Weight: 29 lb (13.2 kg)
• UPC: 800152721200

• Fits most TVs from 40” to 90”
• Supports TVs up to 125 lb (57 kg)
• Accommodates VESA sizes from 200x100 to 600x400
• 6” (15.2 cm) of adjustable horizontal offset from center position
• Tool-less tilt mechanism provides a +12° to -3° tilt angle
• 90° of swivel in either direction, depending on screen size
• Sits 2.5” (6.3 cm) and extends up to 22” (55.9 cm) from the wall
• Integrated all-metal cable management
• Adjustable horizontal leveling
• 23.2” (59 cm) wall plate accommodates up to 16” stud spacing
• Solid steel construction with durable powder coated finish
• Includes manual and all mounting hardware for wood stud and concrete installation
• UL listed
• Ten year warranty

• Cutsheet
• Dimensional Drawing
