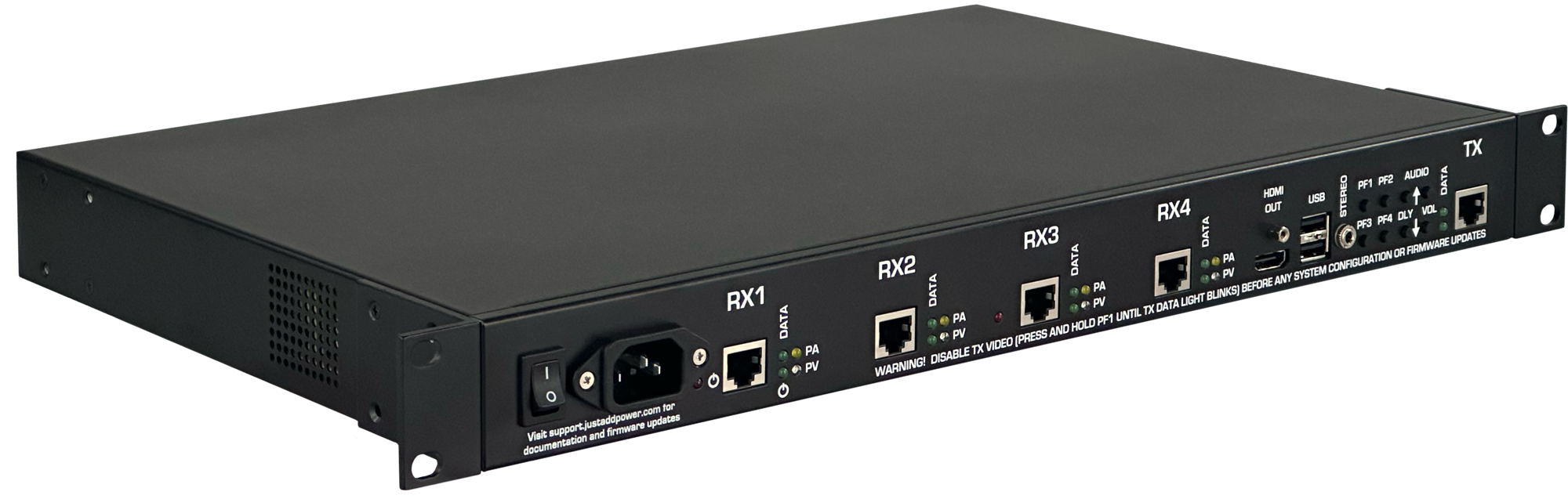

Just Add Power MC-QX

SKU: JAP-MC-QX

MPN: MC-QX

Description

MaxColor MoIP Transmitter Tx Only VIdeo Tiling with 360° Rotation 4K60

Add to Wishlist

Send to a friend!

4K60 Encoder (Transmitter) with Video Tiling and 360° Video Rotation

MC-QX

The MaxColor 4K60 Video Tiling and Warping Encoder (Transmitter) combines two iconic Just Add Power features into one device:

Tiling mixes four video sources and combines them into a new, unique, compiled video source that can be viewed by any MaxColor Decoder (Receiver) in the system. Tile four HDMI sources on a single display in a variety of viewing modes: Quad, Picture-in-Picture, Primary and Secondaries, or any custom layout you can imagine. The four inputs to the MaxColor 4K60 Video Tiling Encoder (Transmitter) can watch any source in the system and the compiled video can be shown on any display in the system. Multiple video tilers can be combined to add even more sources to a single display

Warping rotates any source in the MaxColor system in 0.1-degree increments in real time and can be viewed by any number of Decoders (Receivers) in the system, allowing for the creation of massive artistic video walls

Tiling Features

Tiles up to four 4K60 or lower source devices on a single screen
Variety of viewing modes
Any Transmitter in the MaxColor system can be input to the Tiler
Distribute Tiled video to any Decoder (Receiver) in the MaxColor system
Additional Tilers allow for more sources on the same display

Warping Features

Rotates a single 4K60 or lower source up to 360 degrees in real time
Decoder (Receiver) and Encoder (Transmitter) combined into one unit
Decoder (Receiver) accepts video from any Encoder (Transmitter) in the system
Encoder (Transmitter) outputs rotated video to any Decoder (Receiver) in the system

Additional Features

Supports all audio formats
Supports deep color up to 36-bit
HDR10, HDR10+, HLG and Dolby Vision
Display a custom logo or message as an overlay on any active screen
Load a custom default image or logo for when no source is displayed onscreen
Computer and video resolution 4K/60 @ 4:4:4
2 x USB 2.0 Type A ports
5 x 1Gb Cat ports (1 x Transmitter and 4 x Receivers)
Local HDMI out
