JBL JBLBAR1300BLKAM
SKU: JBL-JBLBAR1300BLKAM
MPN: JBLBAR1300BLKAM
Description

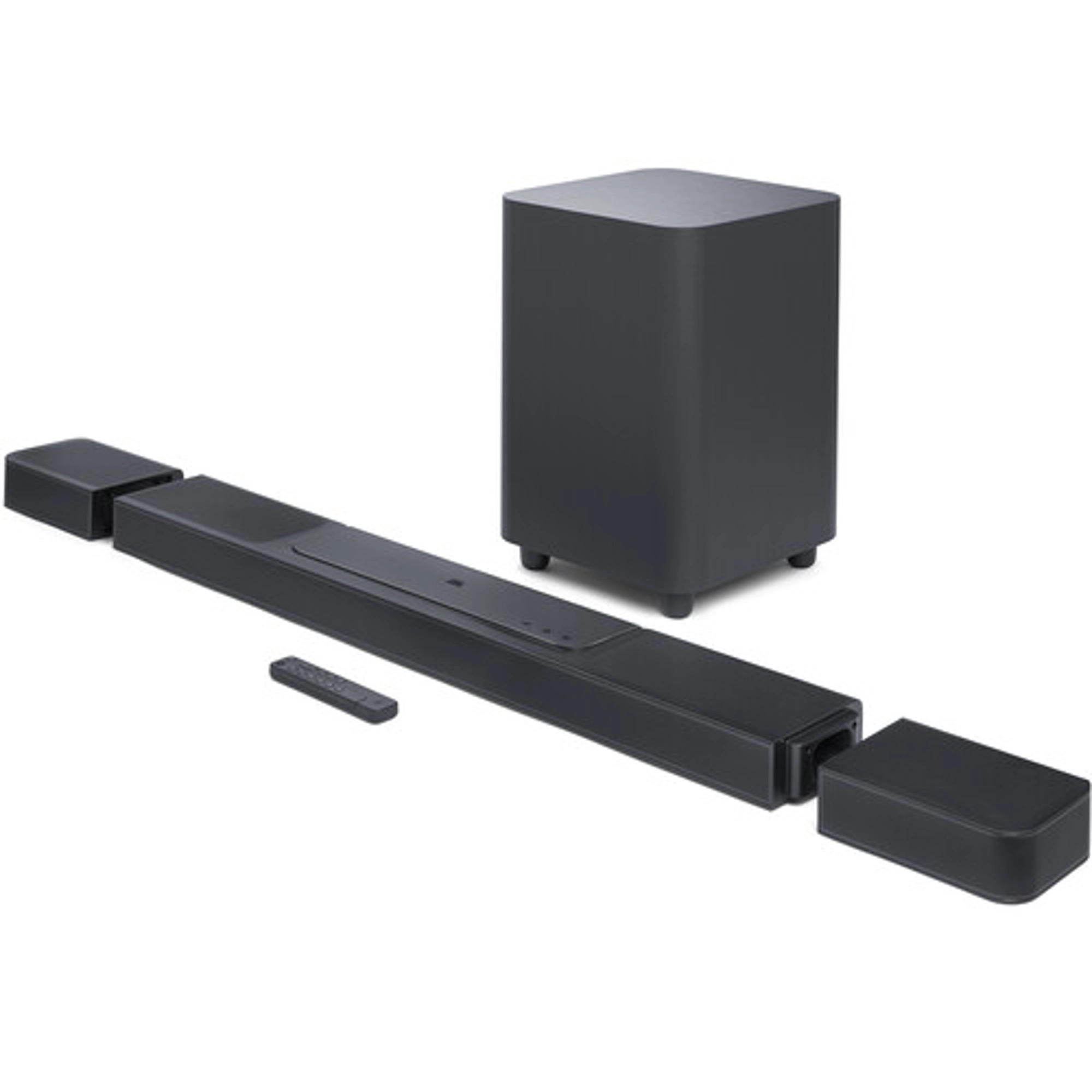

11.1.4 soundbar with wireless sub
Send to a friend!
SKU: JBL-JBLBAR1300BLKAM
MPN: JBLBAR1300BLKAM
11.1.4 soundbar with wireless sub
Send to a friend!
| Channel Configuration | 11.1.4-Channel |
| Low-Frequency Drivers | 6x 1.8 x 3.5" / 46 x 90mm Oval Cone |
| High-Frequency Drivers | 5x 0.75" / 1.91cm |
| Full-Range Drivers | 4x 2.75" / 6.99cm Up-Firing |
| Amplifier Output | 650 W RMS |
| Satellite Speaker Configuration | 3-Way |
| Subwoofer Driver | 1x 12" / 30.5cm |
| Subwoofer Amplifier Output | 300 W RMS |
| Inputs | 3x HDMI1x Optical TOSLINK - Audio |
| Outputs | 1x HDMI - eARC |
| Wireless | Wi-Fi 6 (802.11ax)/Bluetooth 5.0 |
| Audio Decoding | DTS:X, Dolby Atmos |
| HDMI Compliance | eARC |
| Wall Mountable | Yes, with Included Hardware |
| Channel Configuration | 11.1.4-Channel |
| Low-Frequency Drivers | 6x 1.8 x 3.5" / 46 x 90mm Oval Cone |
| High-Frequency Drivers | 5x 0.75" / 1.91cm |
| Full-Range Drivers | 4x 2.75" / 6.99cm Up-Firing |
| Amplifier Output | 650 W RMS |
| Frequency Response | 33 Hz to 20 kHz (System) |
| Total Harmonic Distortion (THD) | 1% |
| Speaker Positioning | Rear |
| Satellite Speaker Configuration | 3-Way |
| Low-Frequency Drivers | 1x 1.8 x 3.5" / 46 x 90mm Oval Cone per Speaker |
| High-Frequency Drivers | 1x 0.75" / 1.91cm |
| Full-Range Drivers | 1x 2.75" / 6.99cm Up-Firing per Speaker |
| Power Rating | 110 W RMS per Speaker |
| Total Harmonic Distortion (THD) | 1% |
| Placement & Mounting Options | Wall-Mount (with Included Hardware) |
| Subwoofer Driver | 1x 12" / 30.5cm |
| Subwoofer Amplifier Output | 300 W RMS |
| Total Harmonic Distortion (THD) | 1% |
| Inputs | 3x HDMI1x Optical TOSLINK - Audio |
| Outputs | 1x HDMI - eARC |
| USB I/O | 1x USB-A (Unspecified Interface) |
| Ethernet I/O | No |
| Wireless Audio Protocols | AirPlay, Bluetooth, Chromecast built-in, Wi-Fi |
| Wireless | Wi-Fi 6 (802.11ax)/Bluetooth 5.0 |
| Bluetooth | 5.0 |
| NFC | No |
| Bluetooth Profiles | A2DP 1.2, AVRCP 1.5 |
| Mobile App Compatible | Yes: Android & iOSFunctionality: Adjust Settings, Setup |
| Audio Decoding | DTS:X, Dolby Atmos |
| HDMI Compliance | eARC |
| HDR Support | Yes, HDR10/Dolby Vision |
| HDCP Support | Yes, Version 2.3 |
| Supported File Formats | MP3 |
| Power Consumption | < 2.0 W (Network Standby) |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Operating Conditions | 32 to 113°F / 0 to 45°C |
| Wall Mountable | Yes, with Included Hardware |
| Dimensions | 39.4 x 2.4 x 5.5" / 1000 x 60 x 139mm (Soundbar)8 x 2.4 x 5.5" / 202 x 60 x 139mm (Satellites)14.4 x 18.9 x 14.4" / 366 x 481 x 366mm (Subwoofer) |
| Weight | 9.5lb / 4.3kg (Soundbar)2.6lb / 1.2kg (Each Satellite)34.6lb / 15.7kg (Subwoofer) |
| Package Weight | 61 lb |
| Box Dimensions (LxWxH) | 44.25 x 21.5 x 17.5" |
