Intellinet 562102
SKU: INT-562102
MPN: 562102
UPC: 766623562102
Description
10-Port PoE+ 10/100 Switch 95w Budget Desktop Self-Healing
Send to a friend!
SKU: INT-562102
MPN: 562102
UPC: 766623562102
10-Port PoE+ 10/100 Switch 95w Budget Desktop Self-Healing
Send to a friend!
562102
IEEE 802.3at/af (PoE+/PoE) Compliant, 95 W PoE Power Budget, Two 10/100 RJ45 Uplink Ports, Self-Healing Network, VLAN, PoE Extend Mode, Desktop Format, Wall-mount Option

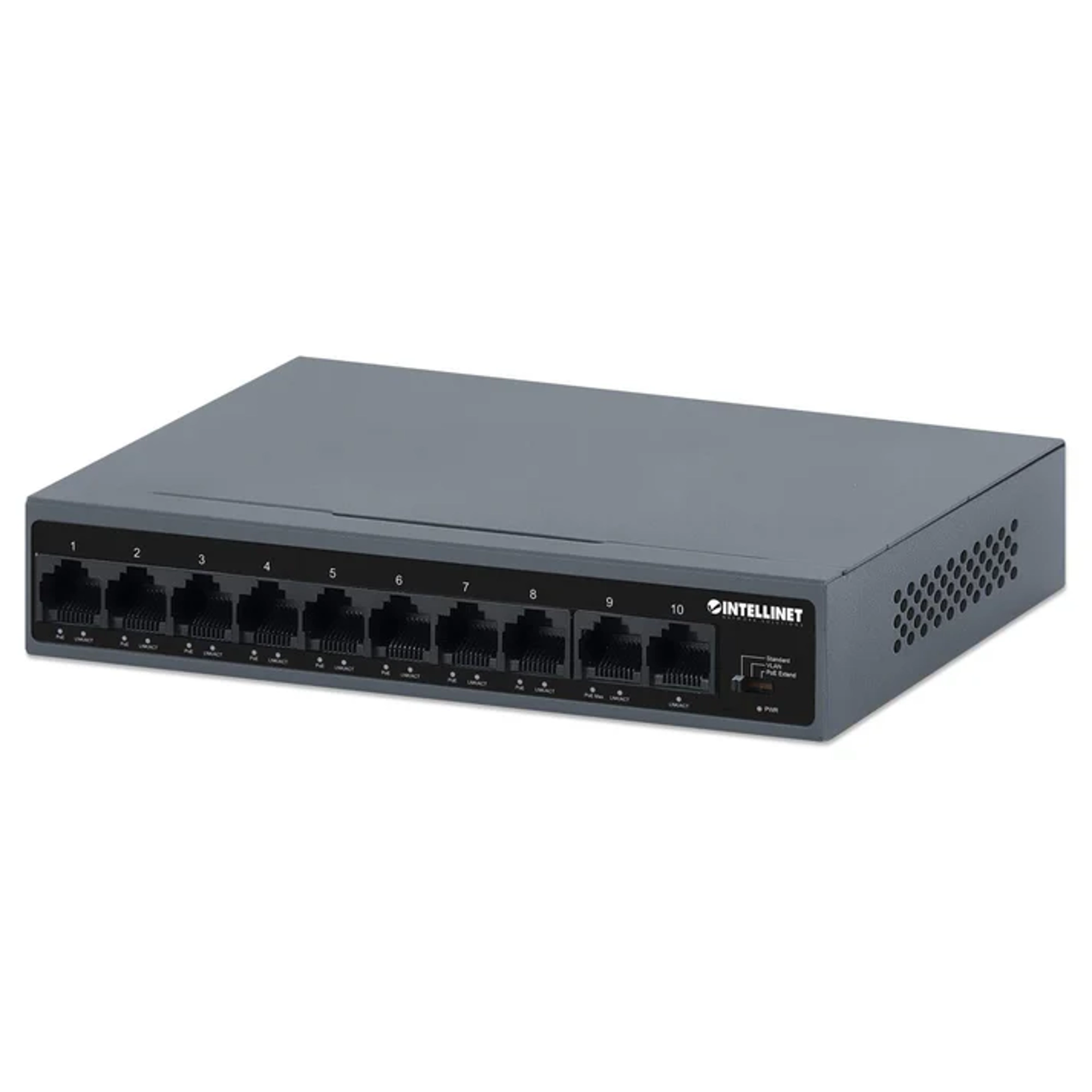

10-Port Power over Ethernet Switch with VLAN and PoE Extend Mode - Unmanaged PoE Switch with Self-Healing Network Feature
The Intellinet Network Solutions 10-Port PoE+ Switch with 8 Fast Ethernet Ports and 2 FE Uplinks passes both data and electrical power to PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight PoE+ ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds up to 100 Mbps.
High-Power PoE+ 802.3at
This high-powered PoE switch supports the IEEE 802.3at protocol and can inject up to 30 watts of power per port. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch need no additional power, helping to avoid the time and expense of electrical rewiring and minimizing the unsightly clutter of power supplies and adapters on ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short-circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest the use of an Intellinet Network Solutions PoE/PoE+ Splitter.
Self-Healing Network - Powered Device Monitor (PDM) for quick self-recovery of your network devices
Despite being an unmanaged switch, the included PDM feature (PD Alive, PoE Watchdog) keeps an eye on connected PoE devices such as surveillance cameras and restarts them in case they stop responding. This will reduce your service calls and management burdens significantly.
PoE Extend Mode, ideal for IP cameras
Selectable with a convenient slide switch on the front panel, you can manually activate a "PoE Extend Mode" that reduces network speeds and extends the PoE range up to 820 ft. (250 m), which is ideal for delivering power and data to IP cameras over longer distances.
Standards
General
Modes (selectable via slide switch on front panel)
LEDs
Pinout RJ45 output ports
Power
Physical
Package Contents
10
Intellinet
Yes
