Intellinet 561952
SKU: INT-561952
MPN: 561952
Description
Ultra Long Range Outdoor Fast Ethernet PoE+ Extender Kit IP67 Waterproof Extends PoE up to 1000m (3280ft)
Send to a friend!
SKU: INT-561952
MPN: 561952
Ultra Long Range Outdoor Fast Ethernet PoE+ Extender Kit IP67 Waterproof Extends PoE up to 1000m (3280ft)
Send to a friend!
561952
Extends PoE up to 1000 m (3280 ft.), One PD Port up to 95 W, IEEE 802.3bt (4PPoE) Compatible, IP67 Waterproof and Dustproof, 10/100 Mbps Speeds, Set of Two Modules, Plastic, Gray

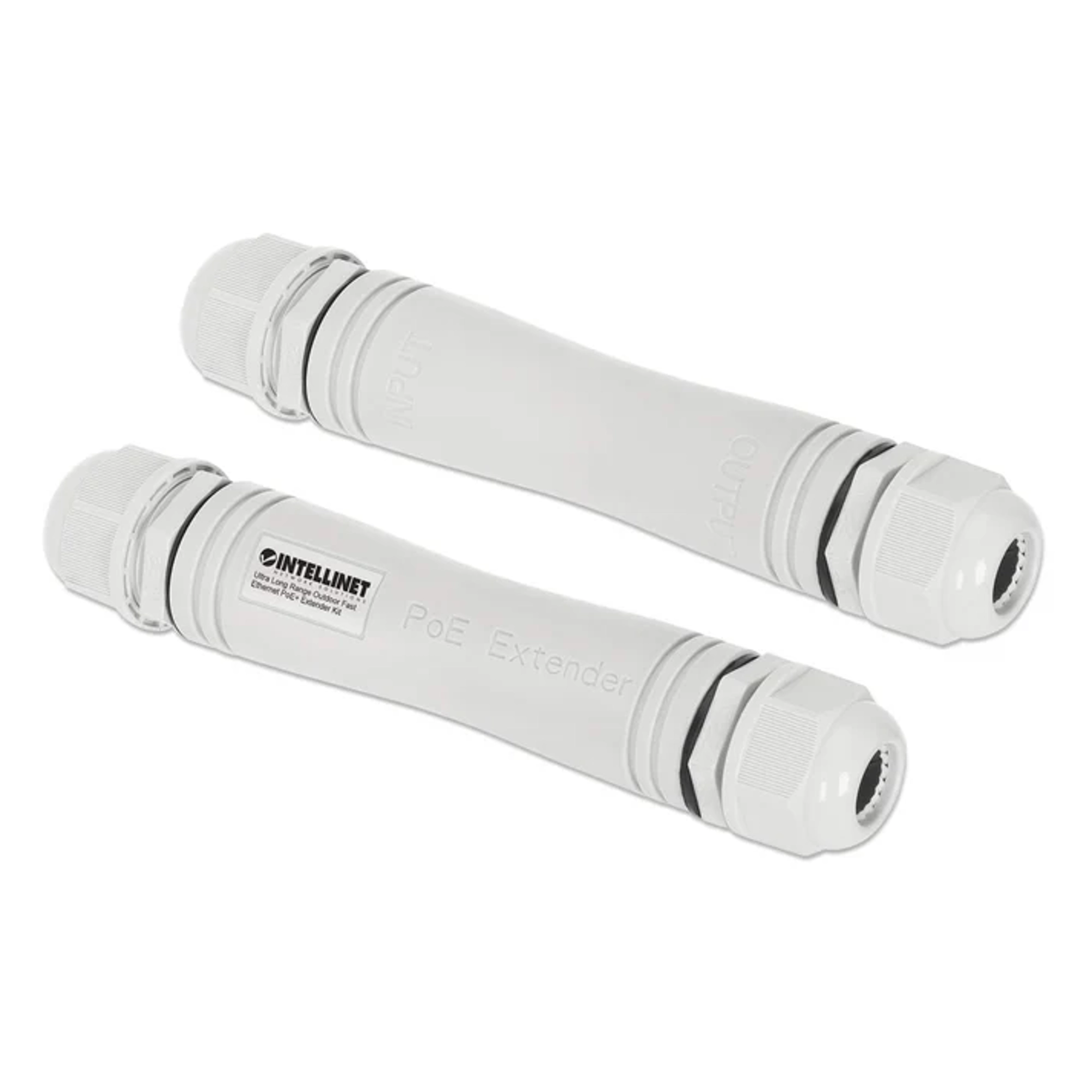

Ultra Long Distance Power over Ethernet Extension / Repeater / Amplifier for a PoE range up to 1,000 m (3,280 ft.) - even in harsh outdoor conditions
The Intellinet Network Solutions Ultra Long Range Outdoor Fast Ethernet PoE++ Extender Kit adds up to 1,000 m (3,280 ft.) to the connection distance from a PoE source to an output device via Cat5e or Cat6 cable. It has an output power rating up to 30 watts, which is enough for many power-hungry PoE devices. Its high range and weatherproof housing is especially useful for outdoor IP surveillance camera deployments. This PoE repeater delivers up to 30 W at 100 Mbps over 300 m (984 ft.) or up to 15.4 W at 10 Mbps over 800 m (2625 ft.).
Designed for Outdoor Use
This PoE extender offers the right power and data connector for longer-distance applications and suits a wide variety of environments. Its weatherproof IP67 (waterproof and dustproof) rating and a wide operating temperature range of -10 - 55°C (14 - 131°F) make it able to withstand harsh outdoor conditions.
Power over Ethernet 802.3bt-compliant Input, 802.3at/af-compliant Output
Supporting the IEEE 802.3bt protocol with input power up to 95 W, this PoE Extender set provides up to 30 watts to a connected 802.3at-compliant device or 15 W to an 802.3af-compliant device, along with data up to Fast Ethernet speeds.
Reduced Wiring Costs
This Power over Ethernet Extender helps avoid the expense of running AC power lines to a wireless access point, network camera or IP phone. Simply connect the extender to the LAN switch port through existing Cat5e/6/6a cables to deliver DC power as well as transfer data.
Safe Protection for your Expensive Network Equipment
The auto-sensing technology of this high-power PoE repeater ensures that your products are protected from power problems like short circuits (short GND), current overloads and high voltages.
Simple Installation with Cascading Power
It was designed to be as easy as possible to set up and use. All it takes to have it up and running is to connect its PoE In port to your PoE injector or PoE switch and to connect the PoE Out port to the PoE device you want to connect (e.g., a VoIP phone or a PoE network camera). The kit includes two modules that always need to be used together for maximum distance capabilities.
Standards
General
Electrical
Physical
Package Contents
