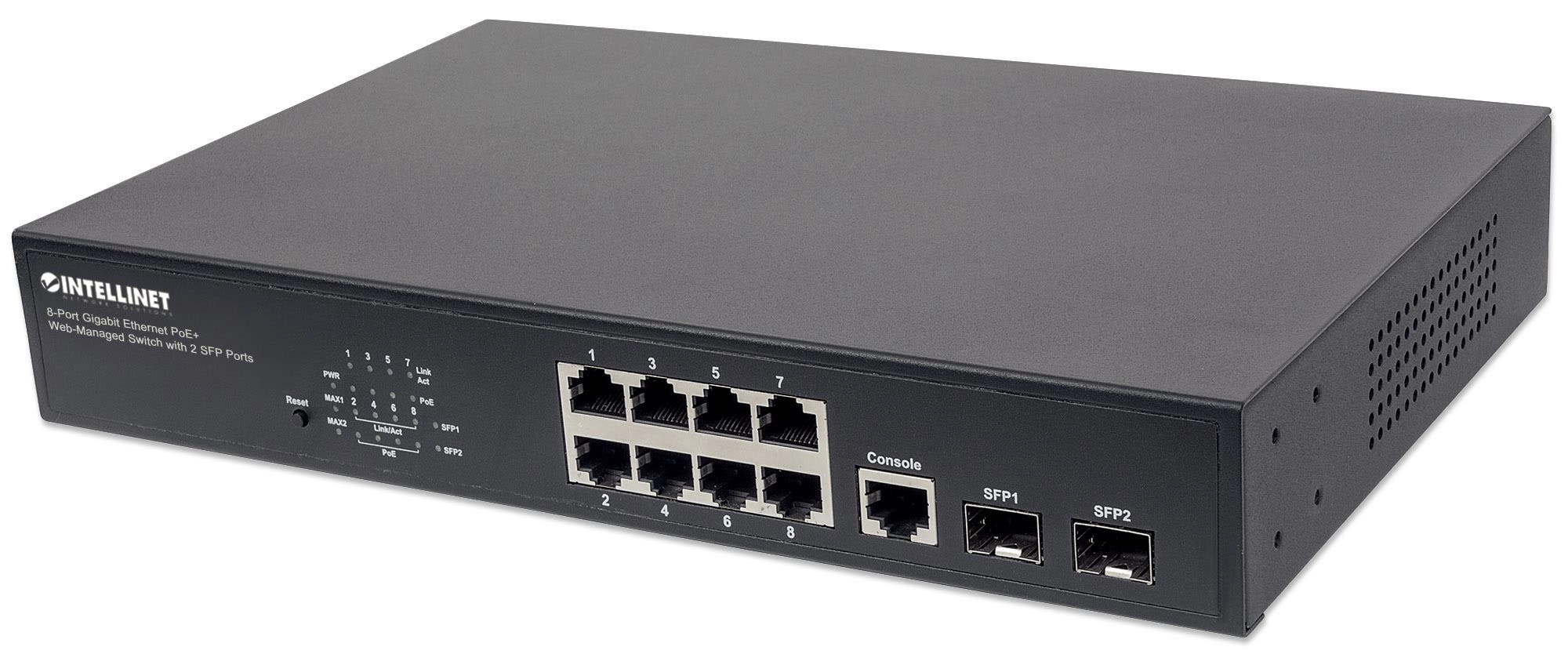

Intellinet 561167

Save installation time and money with PoE

The Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Web-Managed Switch is designed to pass both data and electrical power to a number of Poe compatible devices via standard Cat5e or Cat6 network cables.

Power over Ethernet 802.3at

The Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Web-Managed Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, which eliminates the time and expense of electrical rewiring and minimizes the unsightly clutter caused by power supplies and adapters in awkward places like ceilings and walls.

Self-Healing Network with increased reliability and stability - Intellinet Powered Device Monitor (PDM)

This Power over Ethernet switch is equipped with Powered Device Monitoring, a self-healing PoE function. This PoE watchdog performs a PD alive check to all connected PDs and automatically resets unresponsive devices, such as PoE security surveillance cameras, by cutting off and then restoring power.

Web Management

This PoE switch is equipped with an impressive array of advanced management functions that allow you to be in full control over your network. The 8-Port Gigabit Ethernet PoE+ Web-Managed Switch supports VLAN, port aggregation, QoS and port mirroring, and it supports SNMP V1 and the popular V2c, just to name a few.

PoE Management

The Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Web-Managed Switch provides extensive PoE management features. The delay-time-per-port feature reduces the power hike that usually happens at system start, and the PoE priority feature (low, medium, high) allows you to define mission-critical, high-priority ports that will continue to receive power even if the switch's power budget limit has been exceeded.

Eliminate Bottlenecks with a total of 10 Gigabit Ports

Equipped with eight auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, this switch offers plenty of performance for your computers, servers and other networking devices.

Features

• Provides power and data connection for up to eight PoE network devices
• Save time and money by delivering data and power via existing network cables
• Domotz compatible for cloud management (may require firmware upgrade)
• For use on desktop or mounted in standard 19" rack
• 10/100/1000 auto-sensing ports automatically detect optimal network speeds
• Two small form-factor pluggable GBIC module slots (SFP)
• IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
• Power output up to 30 watts per port*
• PoE power budget of 140 watts
• PoE surge protection (4 kV) for all RJ45 ports
• 20 Gbps switch fabric
• All RJ45 ports with Auto-MDIX (auto uplink) support
• Configuration via Web browser, Telnet or SSH
• Remote Reboot/restart
• Supports SNMP management
• PoE Management - PoE port settings, priority and power-on delay
• IGMP Snooping for multicast filtering
• SNMP V1, V2C, V3 with RMON groups 1, 2, 3 & 9
• Supports VLAN (tag-based and port-based)
• Supports link aggregation (trunking)
• Supports port mirroring
• QoS (Quality of Service) bandwidth management
• Broadcast storm control with multicast packet rate settings
• Store and forward switching architecture
• Supports jumbo frames up to 9 Kbytes
• Supports Rapid Spanning Tree/Spanning Tree protocol
• IEEE 802.3x flow control for full duplex
• Supports 8k MAC address entries
• Includes 19" rackmount brackets
• Fully NDAA-compliant
