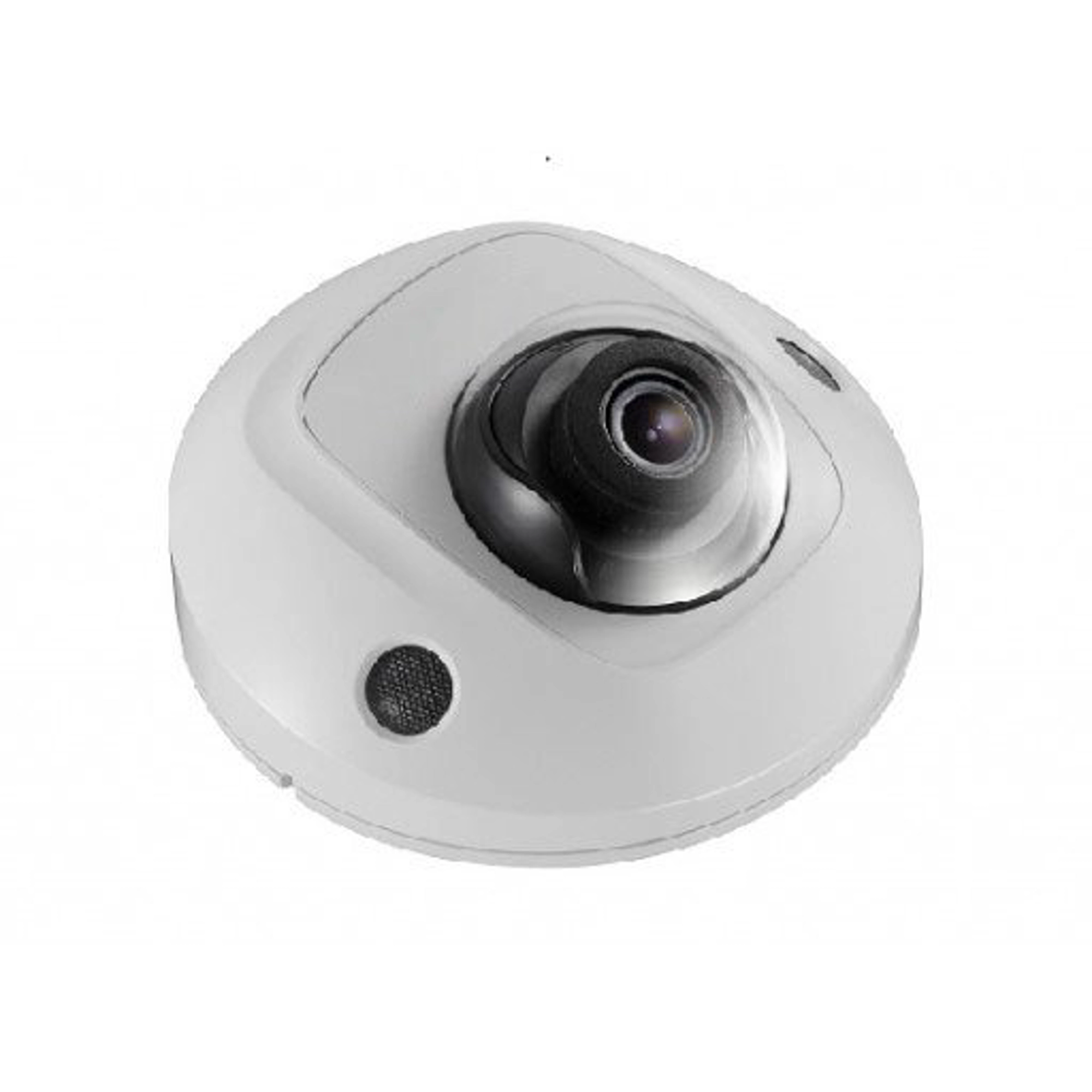

Hunt Electronic HNC324-WDA (4mm)

4MP WDR IP Mini Dome Camera

HNC324-WDA

Model NumberHNC324-WDA Image sensor1/2.9 progressive scan CMOS Min. illumination0.01lux @ F1.2, AGC on, 0 lux with IR Shutter time1/30s ~ 1/100,000s Lens2.8mm, 4mm Day & nightICR Digital noise reduction3D DNR Wide Dynamic RangeTrue WDR, 120db Video compressionH.264 / MJPEG / H.264+ / H.265 / H.265+ Alarm1/1 Audio1/1 Max. image resolution2688 x 1520 Frame rate30fps (2688 x 1520) Alarm triggerMotion detection, tampering alarm, network disconnect, IP address conflict, storage exception, storage error ProtocolsTCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos System compatibilityONVIF, PSIA, CGI General functionalitiesFlickerless, dual stream, heartbeat, mirror, user authentication, video mask, watermark Communication interface1 RJ45 10M / 100M ethernet port On-board storageBuilt-in Micro SD card slot, up to 128 GB Operating conditions-30 °C ~ 60 °C (-22 °F ~ 140 °F), humidity 95% or less (non-condensing) Power supplyDC12V ± 10%, PoE (802.3af) Power consumptionMax. 9.5W Ingress protection levelIP66, IK08 IR rangeUp to 30ft Dimensions4.33 x 2.22 Weight250g (0.88 lbs) Electric BoxHTH-280ZJ-DM46 Wall MountHTH-272ZJ-120B PendantHTH-271ZJ-120 Corner and PoleP:HTH-275ZJ, C:HTH-276ZJ

• Up to 4 megapixel (2688 x 1520) resolution
• Full HD 4MP real-time video
• Built in Mic
• True WDR & 3D DNR & BLC
• On-board storage (up to 128 GB)
• IP66 & IK08 protection
• Vandal-proof housing

• Cutsheet
