Hosa NL2FXX-W-S
SKU: HOS-NL2FX
MPN: NL2FXX-W-S
Description
Neutrik Connector, 2-pole speakON
Send to a friend!
SKU: HOS-NL2FX
MPN: NL2FXX-W-S
Neutrik Connector, 2-pole speakON
Send to a friend!

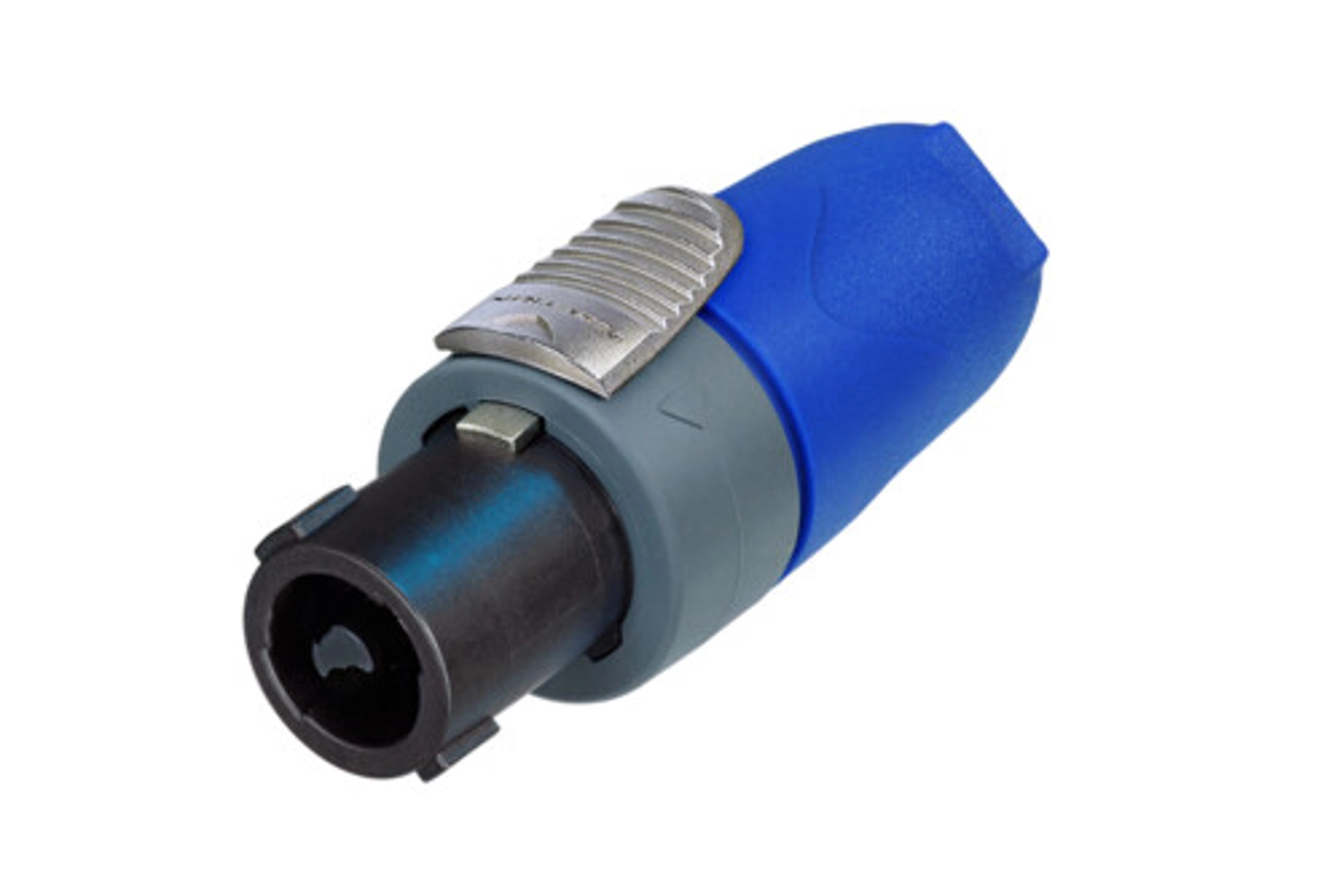

2 pole cable connector, chuck type strain relief
The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
Electrical
Contact resistance < 2 mO (after lifetime) Dielectric strength 4 kVdc (peak) Insulation resistance > 1 GO (after dampheat) Rated current per contact 40 A rms continuous Rated current per contact 50 A audiosignal, duty cycle 50 % Rated voltage 250 V ac Attention speakON is not to be used as an AC mains or power supply connector! Mechanical
Cable O.D. 6 - 10 mm Cable retention = 220 N (subject to cable O.D. and material) Lifetime > 5000 mating cycles Wiresize 1.5 - 4 mm Wiresize 16 - 12 AWG Wiring screw type terminals or soldering Locking device Quick Lock (latch) Material
Contact plating 4 µm Ag Contacts Brass (CuZn39Pb3) Insert Polyamide (PA 66) Locking element Zinc diecast (ZnAl4Cu1) Shell PBTP 20 % GR Strain relief Polyacetal (POM) Environmental
Flammability UL 94 V-0 Solderability Complies with IEC 68-2-20 Temperature range -30 °C to +80 °C Product
Title NL2FX Connection Type speakON Gender female
