Hosa NC3MD-L-1
SKU: HOS-NC3MD-L-1
MPN: NC3MD-L-1
Description

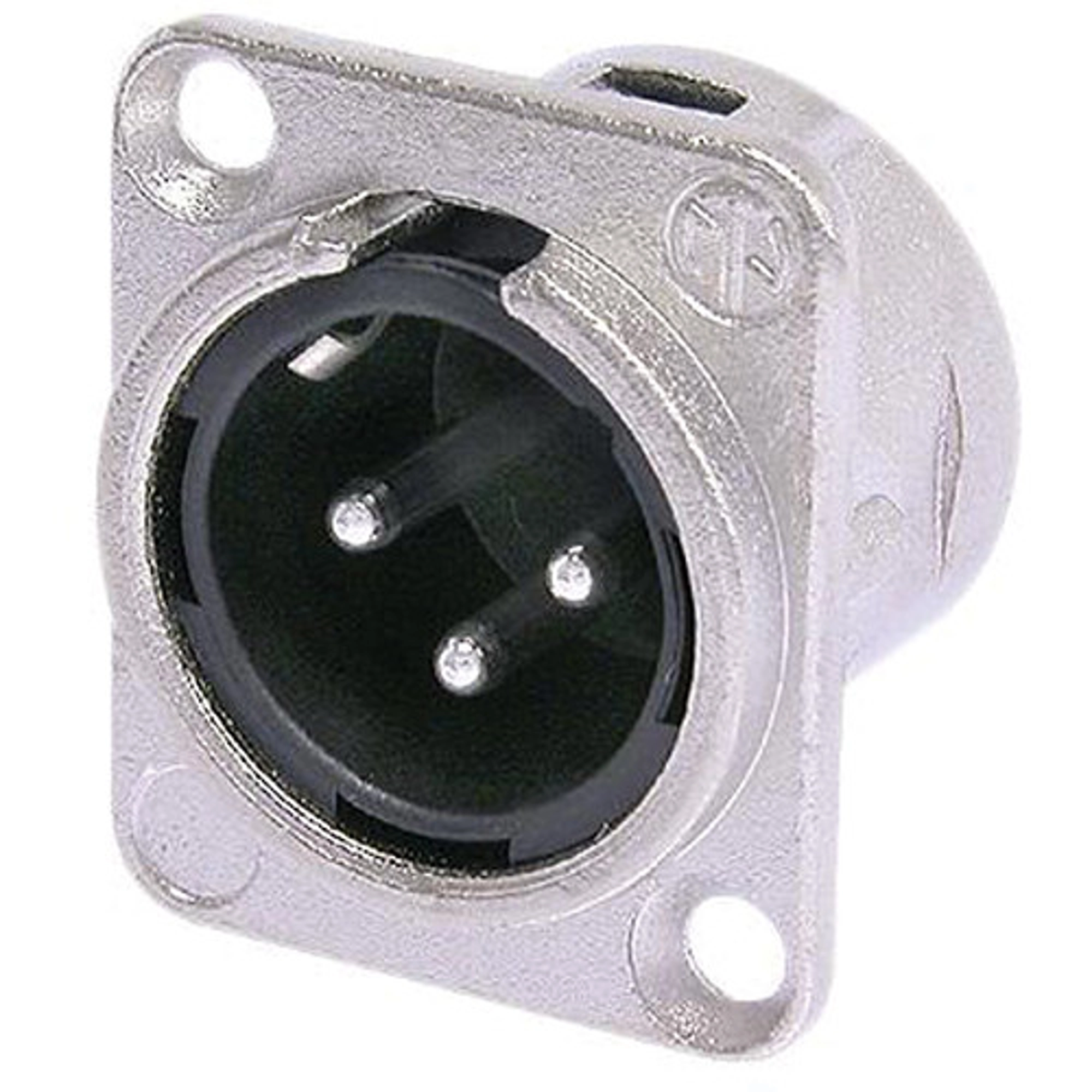

Neutrik Connector, XLR3M
Send to a friend!
SKU: HOS-NC3MD-L-1
MPN: NC3MD-L-1
Neutrik Connector, XLR3M
Send to a friend!
| Electrical | |
| Capacitance | Between Contacts: =4 pF |
| Contact Resistance | Inner: =5 MOhms |
| Dielectric Strength | 1.5 kVDC |
| Insulation Resistance | Initial: >2 GOhms |
| Rated Current Per Contact | 16 A |
| Rated Voltage | 50 V |
| Mechanical | |
| Insertion Force | =20 N |
| Withdrawal Force | =20 N |
| Lifetime | >1,000 mating cycles |
| Wiring | Solder contacts |
| Mounting Direction | Front |
| Locking Device | Latch lock |
| Chassis Shape | D |
| Contact Plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn35Pb2) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking Element | Stahl Ck67 |
| Shell | Zinc die-cast (ZnAl4Cu1) |
| Shell Plating | Nickel |
| Approvals | UL |
| Flammability | UL 94 HB |
| Standard Compliance | IEC 61076-2-103 |
| Protection Class | IP40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | -22 to 176°F (-30 to 80°C) |
| Diameter | 0.93" (23.6 mm) |
| Dimensions | 1.22 x 1.02" (31 x 26 mm) |
| Package Weight | 0.05 lb |
| Box Dimensions (LxWxH) | 2.3 x 2.1 x 1" |
