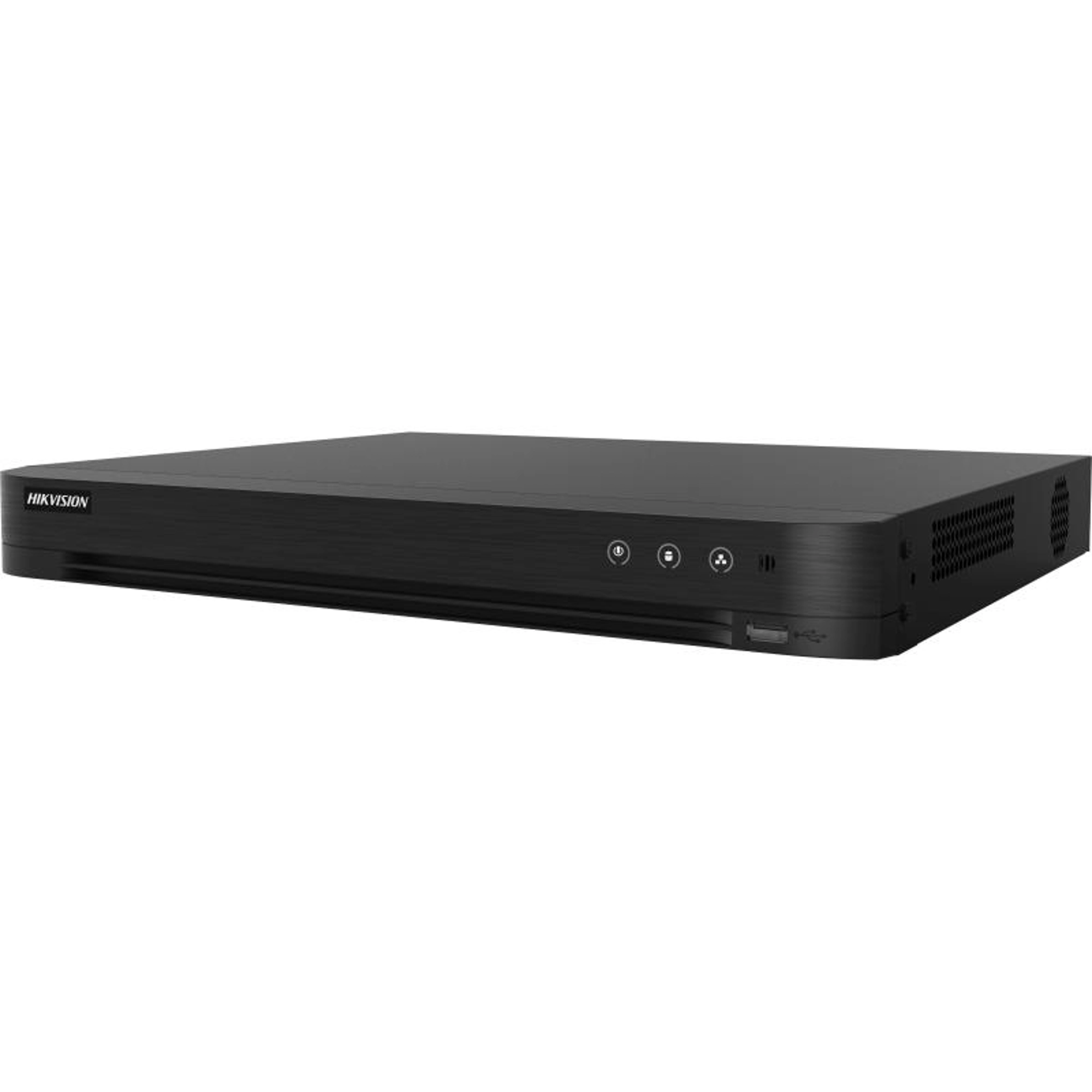

Hikvision iDS-7216HQHI-M2/S

16-ch 1080p 1U H.265 AcuSense DVR

• 16 channels and 2 HDDs 1U AcuSense DVR
• False alarm reduction through human and vehicle target classification based on deep learning
• Efficient H.265 pro+ compression technology
• Encoding ability up to 3K/5M Lite @ 12 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 24 network cameras can be connected

• Motion Detection 2.0
• Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
• Quick search by object or event type is supported;
• Perimeter Protection
• Human/Vehicle AnalysisUp to 4-ch
• Facial Detection
• Facial Detection and CaptureFace picture detection, face picture search
• Video and Audio
• IP Video Input2-ch (up to 18-ch)
• Up to 6 MP resolution
• Enhanced IP mode on:
• 8-ch (up to 24-ch), each up to 4 Mbps
• ;Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input16-ch;BNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection
• HDMI Output1-ch, 4K (3840 2160)/30Hz, 2K (2560 1440)/60Hz, 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz
• CVBS InputPAL/NTSC
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 O),
• resolution: PAL: 704 576, NTSC: 704 480
• Synchronous playback16-ch
• HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 1944)@20 fps, 4 MP(2560 1440)@30 fps, 4 MP(2560 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input5 MP(2592 1944)@20 fps,4 MP(2560 1440)@30 fps, 4 MP(2560 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• VGA Output1-ch, 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz
• HDCVI Input5 MP(2592 1944)@20 fps,4 MP(2560 1440)@30 fps, 4 MP(2560 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• Video Output ModeHDMI/VGA simultaneous output
• Audio Output1-ch, RCA (Linear, 1 KO)
• Audio Input1-ch, RCA (2.0 Vp-p, 1 KO)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KO) (using the first audio input)
• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding ResolutionWhen 1080p Lite mode is not enabled:
• 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
• When 1080p Lite mode is enabled:
• 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
• Frame RateMain stream:
• When 1080p Lite mode not enabled:
• For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
• For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
• For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
• For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• When 1080p Lite mode enabled:
• 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• Sub-stream:
• WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
• Video Bitrate32 Kbps to 6 Mbps
• Dual-streamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Network
• Total Bandwidth128 Mbps
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connection128
• Network Interface1,RJ45 10M/100M/1000M self-adaptive
• Ethernet interface
• Auxiliary Interface
• SATA2 SATA interface
• CapacityUp to 10 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex)
• USB Interface1 USB 2.0
• 1 USB 3.0
• Alarm In/OutN/A
• General
• Power Supply12 VDC
• Consumption= 40 W
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity10% to 90%
• Dimension (W D H)380 320 48 mm (15.0 12.6 1.9 inch)
• Weight= 2 kg (4.4 lb)
