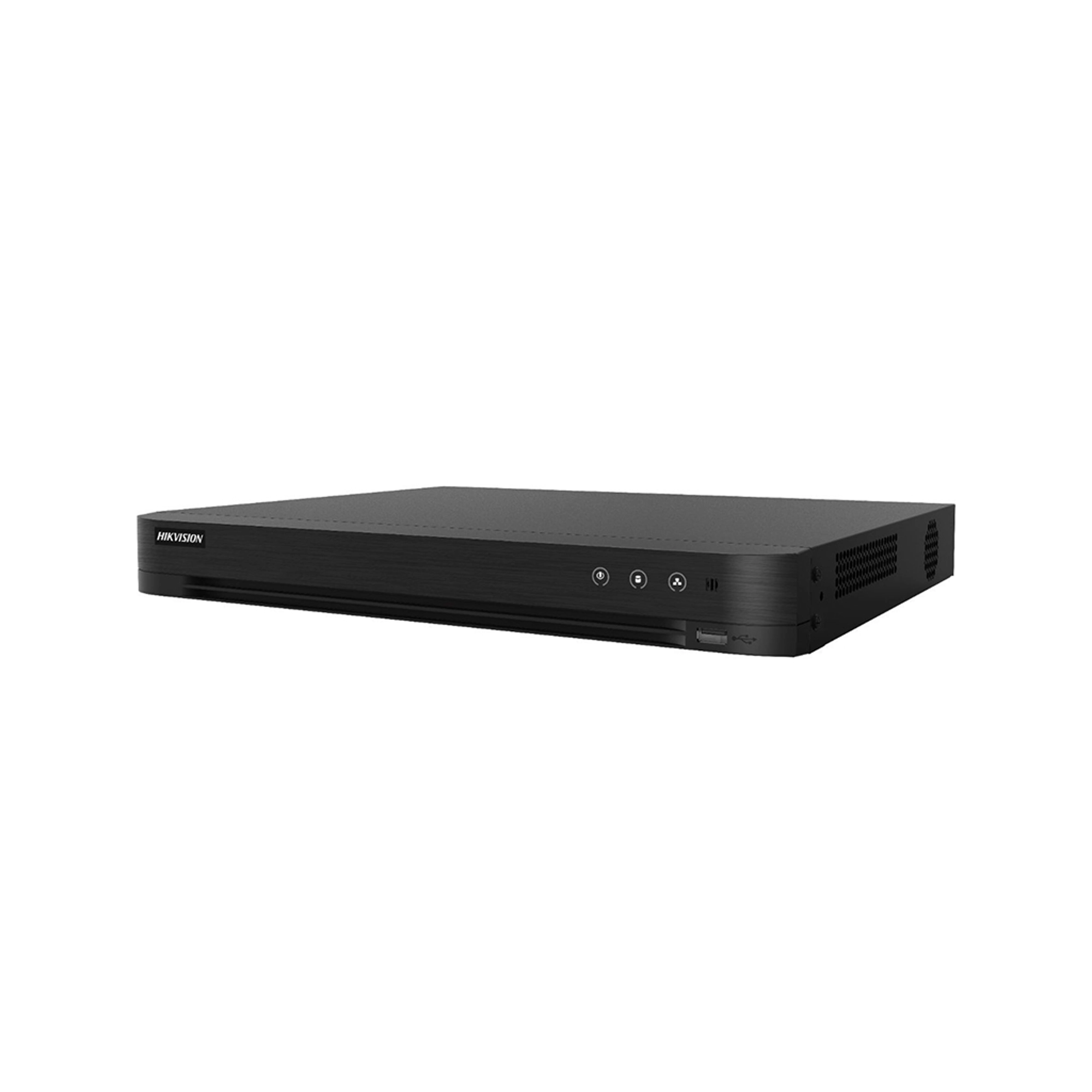

Hikvision iDS-7204HUHI-M1/S

SKU: HIK-IDS-7204HUHI-M1/S

MPN: iDS-7204HUHI-M1/S

UPC: 842571132069

Description

AcuSense Tribrid DVR, 4 Channel TurboHD/Analog, False alarm reduction through human and vehicle target classification based on deep learning, Auto-Detect, H.265+/H.265, 5MP Analog + 2-6MP IP Camera, HDMI, Alarm I/O, No HDD, 1SATA

Add to Wishlist

Send to a friend!

Product Overview:

Hikvision 4-Channel 5MP 1U H.265 AcuSense DVR iDS-7204HUHI-M1/S

Key Features:

4 channels and 1 HDD 1U AcuSense DVR
False alarm reduction by human and vehicle target classification based on deep learning
Efficient H.265 pro+ compression technology
Encoding ability up to 8 MP lite @ 15 fps, 5 MP @ 12 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 8 network cameras can be connected

Specifications

Recording
Video compression.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
Main stream:
8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate32 Kbps to 10 Mbps
Dual-stream support
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps
Video And Audio
IP Video Input
2-ch (up to 6-ch)
Up to 8 MP resolution
Enhanced IP mode on:
4-ch (up to 8-ch), each up to 4 Mbps
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input4-ch;BNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection
HDMI Output
HDMI:
1-ch, 2K (2560 1440)/60Hz,
1920 1080/60Hz,
1280 1024/60Hz,
1280 720/60Hz
VGA:
1-ch, 1920 1080/60Hz,
1280 1024/60Hz,
1280 720/60Hz
HDMI/VGA simultaneous output
CVBS InputPAL/NTSC
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 O),
resolution: PAL: 704 576, NTSC: 704 480
Synchronous Playback4-ch
HDTVI Input
8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
*: The 8 MP signal input is only available for channel 1.
AHD Input5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
Audio Output1-ch, RCA (Linear, 1 KO)
Audio Input1-ch, RCA (2.0 Vp-p, 1 KO)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KO) (using the first audio input)
Network
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection32
Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
SATA1 SATA interface
capacity to 10 TB capacity for each disk
Serial InterfaceRS-485 (half-duplex)
USB Interface
Front panel: 1 USB 2.0
Rear panel: 1 USB 2.0
Alarm In/OutN/A
General
Power Supply12 VDC
Consumption= 10 W
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W D H)315 242 45 mm (12.4 9.5 1.8 inch)
= 1.16 kg (2.6 lb)
