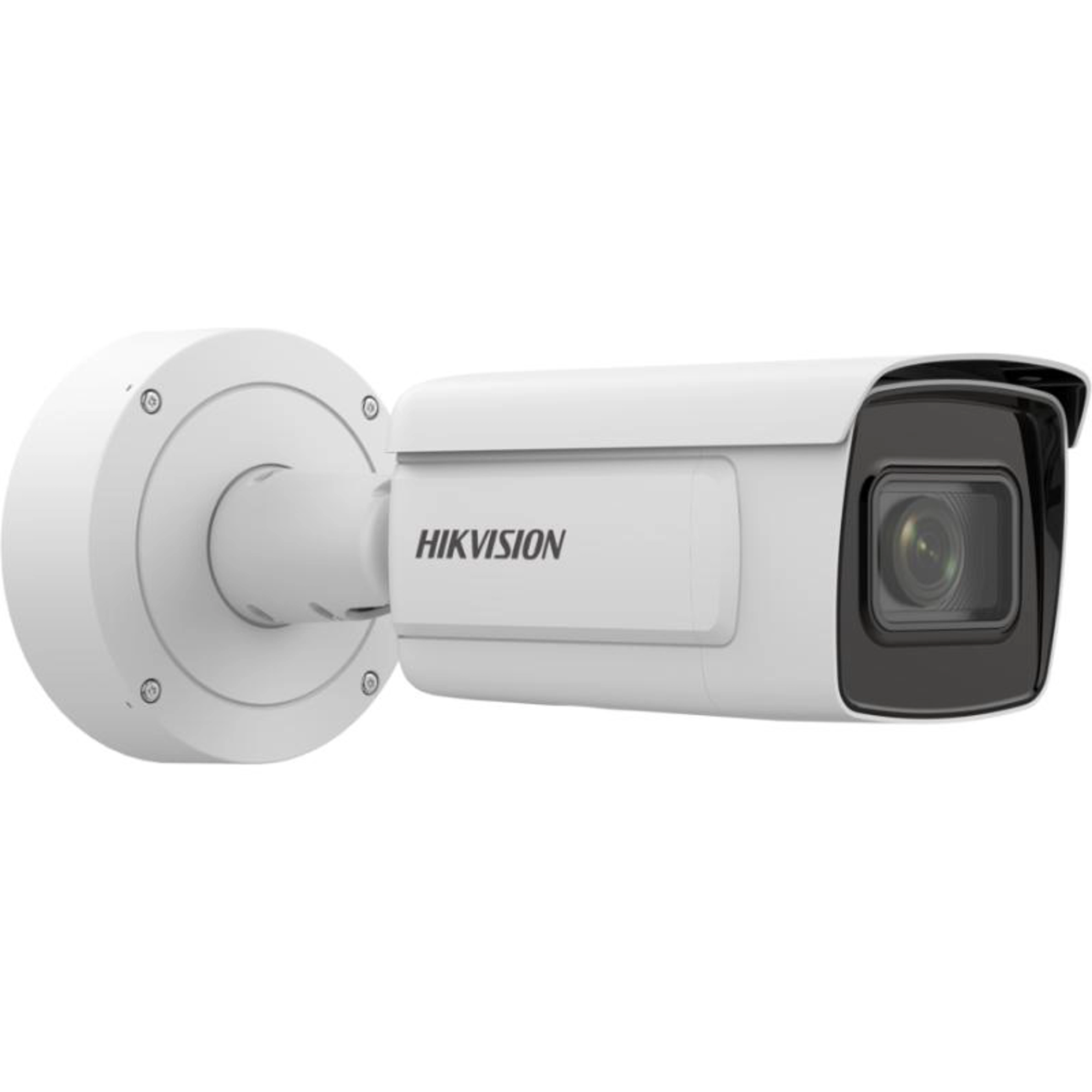

Hikvision iDS-2CD7AC5G0-IZHSY

High quality imaging with 12 MP resolution Clear imaging against strong back light due to DWDR technology Efficient H.265+ compression technology to save bandwidth and storage Advanced streaming technology that enables smooth live view and data self-correcting in poor network 5 streams and up to 5 custom streams to meet a wide variety of applications Water and dust resistant (IP67) and vandal proof (IK10)

Hikvision has been dedicated to develop products with security since established. Hikvision always follows security by design principle and has adopted many methods of security technologies into our product development lifecycle, including terminal security, data security, application security, network security, and privacy protection. In the meantime, the security technologies used by Hikvision are all in compliance with local applicable laws and safety regulations. These security measures could enhance product's cyber security protection capability and protect your devices as well as your data from malicious cyber attacks

Image Sensor 1/1.7" Progressive Scan CMOS Max. Resolution 4000 × 3000 Min. Illumination Color: 0.009 Lux @ (F1.2, AGC ON); B/W: 0.0009 Lux @ (F1.2, AGC ON) Shutter Time 1 s to 1/100,000 s Day & Night IR cut filter Lens Focus Auto, semi-auto, manual Focal Length & FOV 2.8 to 12 mm, horizontal FOV: 96.2° to 36.4°, vertical FOV: 69.3° to 27.2°, diagonal FOV: 129.4° to 45.5° 8 to 32 mm, horizontal FOV: 40.2° to 14.4°, vertical FOV: 29.6° to 10.8°, diagonal FOV: 51.47° to 17.8° Aperture 2.8 to 12 mm: F1.2 to F2.5 8 to 32 mm: F1.7 to F1.73 Lens Mount Integrated Illuminator Supplement Light Range 2.8 to 12 mm: 50 m 8 to 32 mm: 100 m IR Wavelength 850 nm Smart Supplement Light Yes Video Main Stream 50 Hz: 25 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720) 60 Hz: 30 fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 50 Hz: 20 fps (4000 × 3000) 60 Hz: 20 fps (4000 × 3000) Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Fourth Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Fifth Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Custom Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream/Third stream/Fourth stream/Fifth stream/custom stream:H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Bit Rate Control CBR/VBR Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 4 fixed regions for each stream Target Cropping Yes Audio Environment Noise Filtering Yes Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3 Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/32 Kbps (PCM)/8 to 320 Kbps (MP3) Audio Type Mono sound Network Simultaneous Live View Up to 20 channels API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS Smooth Streaming Yes User/Host Up to 32 users. 3 user levels: administrator, operator and user Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+ Image Wide Dynamic Range (WDR) Digital WDR Day/Night Switch Day, Night, Auto, Schedule, Alarm Trigger Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format Image Enhancement BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction Image Parameters Switch Yes Image Settings Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser SNR ≥52 dB Interface Alarm 2 input, 2 outputs (max. 24 VDC, 1 A) Audio -IZHY: 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound RS-485 With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) Video Output 1 Vp-p Composite Output (75Ω/CVBS) (For debugging only) On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB Reset Key Yes Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port Power Output With -Y: 12 VDC, max. 100 mA (supported by all power supply types) Event Basic Event Motion detection, video tampering alarm, vibration detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email Smart Event Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Scene change detection, audio exception detection, defocus detection Deep Learning Function Face Capture Detects up to 30 faces simultaneously; Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°; Up to 3 face libraries with up to 30000 faces each are configurable; Recognizes face identity via face modeling, grading and comparing to those in face library; Supports face library encryption. Multi-target-type Detection Supports simultaneous detection of human body and face Gets 8 face features and 13 human body features People Counting Yes Queue Management Detects queuing-up people number, and waiting time of each person Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue Supports raw data export for further analysis Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc. General Power 12 VDC ± 20%, 1.33 A, max. 16.0 W, three-core terminal block, reverse polarity protection, PoE: IEEE 802.3at, 42.5 V to 57 V, 0.43 A to 0.31 A，max. 18.0 W Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian Heater Yes General Function Anti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter Storage Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) Material Aluminum alloy body Dimension Without -Y: Ø144 × 347 mm (Ø5.7″ × 13.7″) With -Y: Ø140 mm × 351 mm (Ø5.5″ × 13.8″) Package Dimension 405 mm × 190 mm × 180 mm (15.9″ × 7.5″ × 7.1″) Weight Approx. 1920 g (4.2 lb.) With Package Weight Approx. 3060 g (6.7 lb.) Approval EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection IK10 (IEC 62262:2002), IP67 (IEC 60529-2013) Automotive and Railway With -R: EN50121-4 Anti-Corrosion Protection With -Y: NEMA 4X (NEMA 250-2018) Other With -Y: PVC FREE

Function Face Counting With the embedded deep learning algorithms, the camera integrates multiple intelligences. It counts persons and samples the face features simultaneously, and compares them with the built-in face library, so to remove the duplicated person. It counts persons and reports a face alarm simultaneously to achieve both the entrance control and people counting. Hard Hat Detection With the embedded deep learning algorithms, the camera detects the persons in the specified region. It detects whether the person is wearing a hard hat, and captures the head of the person and reports an alarm if not. Multi-Target-Type Detection With the embedded deep learning algorithms, the camera detects and captures the face and human body in the specified region. It supports a structurized modeling of the face and human body to achieve a structurized data collection. Queue Management With embedded deep learning based algorithms, the camera detects queuing-up people number and waiting time of each person. The body feature detection algorithm helps filter out wrong targets and increase the accuracy of detection. Metadata Metadata uses individual instances of application data or the data content. Metadata can be used for third-party application development. Smooth Streaming Smooth streaming offers solutions to improve the video quality in different network conditions. For example, in poor network conditions, adapting to the detected real-time network condition, streaming bit rate and resolution are automatically adjusted to avoid mosaic and lower latency in live view; in multiplayer network conditions, the camera transmits the redundant data for the self-error correcting in back-end device, so that to solve the mosaic problem because of the packet loss and error rate. Anti-Corrosion Coating(-Y) The camera adopts high weatherproof and wearproof molding powder that confirms to AAMA2604-02 and Qualicoat (Class2) specifications, and uses two-layer special spraying technology, so its surface has excellent long-term anti-corrosion performance and physical protection function. Besides, all the exposed screws use SUS316 material and features high anticorrosion performance. Therefore, the whole camera meets anti-corrosion requirements NEMA 250-2018.
