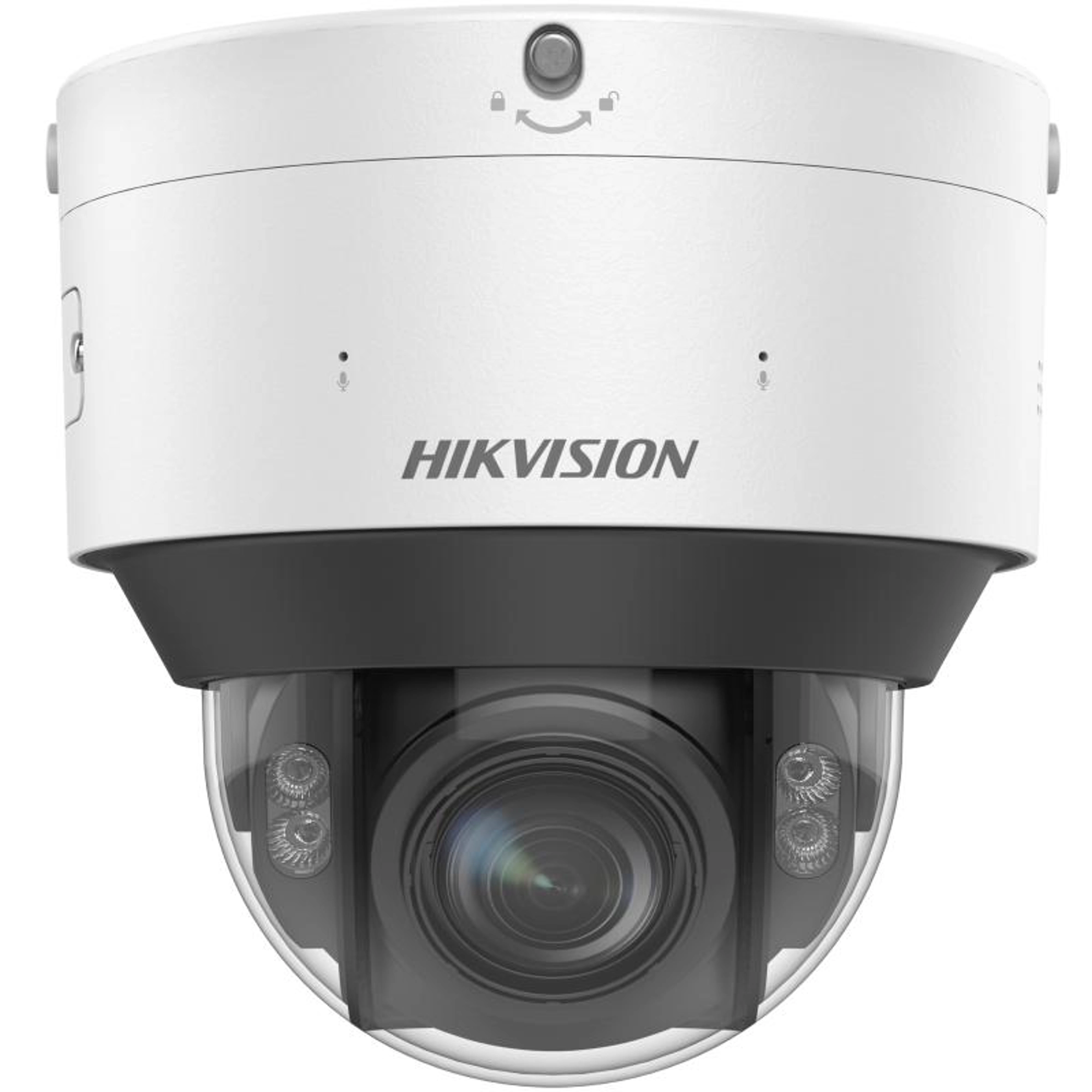

Hikvision IDS-2CD7587G0-XZHSY

High quality imaging with 8 MP resolution Excellent low-light performance via DarkfighterS technology Efficient H.265+ compression technology to save bandwidth and storage Clear imaging against strong back light due to 120 dB true WDR technology 5 streams to meet a wide variety of applications Water and dust resistant (IP67) and vandal proof (IK10) Unique PTRZ capability for efficient installation

Hikvision has been dedicated to develop products with security since established. Hikvision always follows security by design principle and has adopted many methods of security technologies into our product development lifecycle, including terminal security, data security, application security, network security, and privacy protection. In the meantime, the security technologies used by Hikvision are all in compliance with local applicable laws and safety regulations. These security measures could enhance product's cyber security protection capability and protect your devices as well as your data from malicious cyber attacks.

Image Sensor 1/1.8" Progressive Scan CMOS Max. Resolution 3840 × 2160 Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light Shutter Time 1 s to 1/100,000 s Day & Night IR cut filter Blue glass module to reduce ghost phenomenon Angle Adjustment Pan: 0° to 355°, tilt: 0° to 85°, rotate: 0° to 355° Lens Focal Length & FOV 2.8 to 12 mm, horizontal FOV 104.2° to 44.1°, vertical FOV 55.3° to 24.8°, diagonal FOV 126.8° to 51.1° Focus Auto,Semi-auto,Manual Iris Type P-iris Aperture F1.0 to F1.2 DORI DORI Wide: D (Detect): 92 m, O (Observe): 36.5 m, R (Recognize): 18.4 m, I (Identify): 9.2 m Tele: D (Detect): 204 m, O (Observe): 81 m, R (Recognize): 40 m, I (Identify): 20.4 m Illuminator IR Wavelength 850 nm Smart Supplement Light Yes Supplement Light Range 2.8 to 12 mm: up to 30 m Supplement Light Type Hybrid (IR and White Light) AI Open Platform Model Specification Up to 4 models, Model type: detection model, classification model, mixed model (detection model and classification model) Video Main Stream 50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Fourth Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Fifth Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile,Main Profile,High Profile H.265 Type Main Profile Bit Rate Control CBR,VBR Target Cropping Yes Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 4 fixed regions for each stream Audio Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Type Mono sound Environment Noise Filtering Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets Simultaneous Live View Up to 20 channels API ONVIF (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK, ISUP User/Host Up to 32 users 3 user levels: administrator, operator, and user Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256 Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. Client iVMS-4200,Hik-Connect,Hik-Central Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Image Image Parameters Switch Yes Image Settings Saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser Day/Night Switch Day,Night,Auto,Schedule,Alarm Trigger,Video Trigger Wide Dynamic Range (WDR) 120 dB Privacy Mask 8 programmable polygon privacy masks SNR ≥ 52 dB Image Enhancement BLC,HLC,3D DNR,Defog Image Stabilization EIS Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. Interface Video Output 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB Audio 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound Built-in Microphone Yes, 2 built-in microphones Alarm 1 input, 1 output (max. 24 VDC, 1 A) Built-in Speaker Max. power consumption: 1.5 W, max. sound pressure level: 98 dB, speaker range: 10 m RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) Reset Key Yes Power Output 12 VDC, max. 100 mA Event Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibration detection Smart Event scene change detection,audio exception detection,defocus detection Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning Deep Learning Function Multi-target-type Detection Supports simultaneous detection and capture of human body, face, and vehicle, Gets 7 face features, Gets 13 human body features, Gets 2 vehicle features, Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle Face Capture Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures, Supports best shot and quick shot for capture mode, Gets 7 face features Face Comparison Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total, Supports face library encryption People Counting Supports Multi-Dimension People Counting, Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.), Supports real-time uploading and uploading by statistic cycle, Supports generating daily, weekly, monthly or annually reports, Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval, Supports face feature deduplication, Supports people flow data replenishment Queue Management Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 2 detection modes: regional people queuing-up, waiting time detection Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue Supports raw data export for further analysis Supports real-time data uploading and scheduled data uploading Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold Waiting time detection: supports 1 alarm trigger condition, including greater than threshold Heat Map A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area., Two report types are available, space heat map and time heat map line chart. Hard Hat Detection Detects up to 30 human targets simultaneously Supports up to 4 shield regions Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support combined event alarm triggering Metadata Intrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection Regional People Counting Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B) On/Off Duty Detection Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 2 detection modes: absence detection, on/off duty detection Supports parameter settings: person on duty, absence duration General Power 12 VDC ± 20%, 2.01 A, max. 24.01 W, three-core terminal block; 24 VAC ± 20%, 1.51 A, max. 24.01 W, three-core terminal block; PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.60 A to 0.44 A, max. 25.43 W Material Aluminum alloy body Dimension Ø160 mm × 159.5 mm (Ø6.3" × 6.3") Package Dimension 251 mm × 215 mm × 189 mm (9.9" × 8.5" × 7.4") Weight Approx. 2100 g (4.62 lb.) With Package Weight Approx. 2850 g (6.28 lb.) Startup and Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) Storage Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Heartbeat,anti-banding,one-key reset,mirror,password protection,flash log Heater Yes Device Management Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces Approval EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002 Anti-Corrosion Protection -Y: NEMA 4X (NEMA 250-2018) Automotive and Railway EN50121-4 Other PVC FREE

Function Face Counting With the embedded deep learning algorithms, the camera integrates multiple intelligences. It counts persons and samples the face features simultaneously, and compares them with the built-in face library, so to remove the duplicated person. It counts persons and reports a face alarm simultaneously to achieve both the entrance control and people counting. Hard Hat Detection With the embedded deep learning algorithms, the camera detects the persons in the specified region. It detects whether the person is wearing a hard hat, and captures the head of the person and reports an alarm if not. Multi-Target-Type Detection With the embedded deep learning algorithms, the camera detects and captures the face and human body in the specified region. It supports a structurized modeling of the face and human body to achieve a structurized data collection. Queue Management With embedded deep learning based algorithms, the camera detects queuing-up people number and waiting time of each person. The body feature detection algorithm helps filter out wrong targets and increase the accuracy of detection. Metadata Metadata uses individual instances of application data or the data content. Metadata can be used for third-party application development. Smooth Streaming Smooth streaming offers solutions to improve the video quality in different network conditions. For example, in poor network conditions, adapting to the detected real-time network condition, streaming bit rate and resolution are automatically adjusted to avoid mosaic and lower latency in live view; in multiplayer network conditions, the camera transmits the redundant data for the self-error correcting in back-end device, so that to solve the mosaic problem because of the packet loss and error rate. Anti-Corrosion Coating(-Y) The camera adopts high weatherproof and wearproof molding powder that confirms to AAMA2604-02 and Qualicoat (Class2) specifications, and uses two-layer special spraying technology, so its surface has excellent long-term anti-corrosion performance and physical protection function. Besides, all the exposed screws use SUS316 material and features high anticorrosion performance. Therefore, the whole camera meets anti-corrosion requirements NEMA 250-2018.
