SKU: HIK-EKI-K42T44H
MPN: EKI-K42T44H
UPC: 842571151930

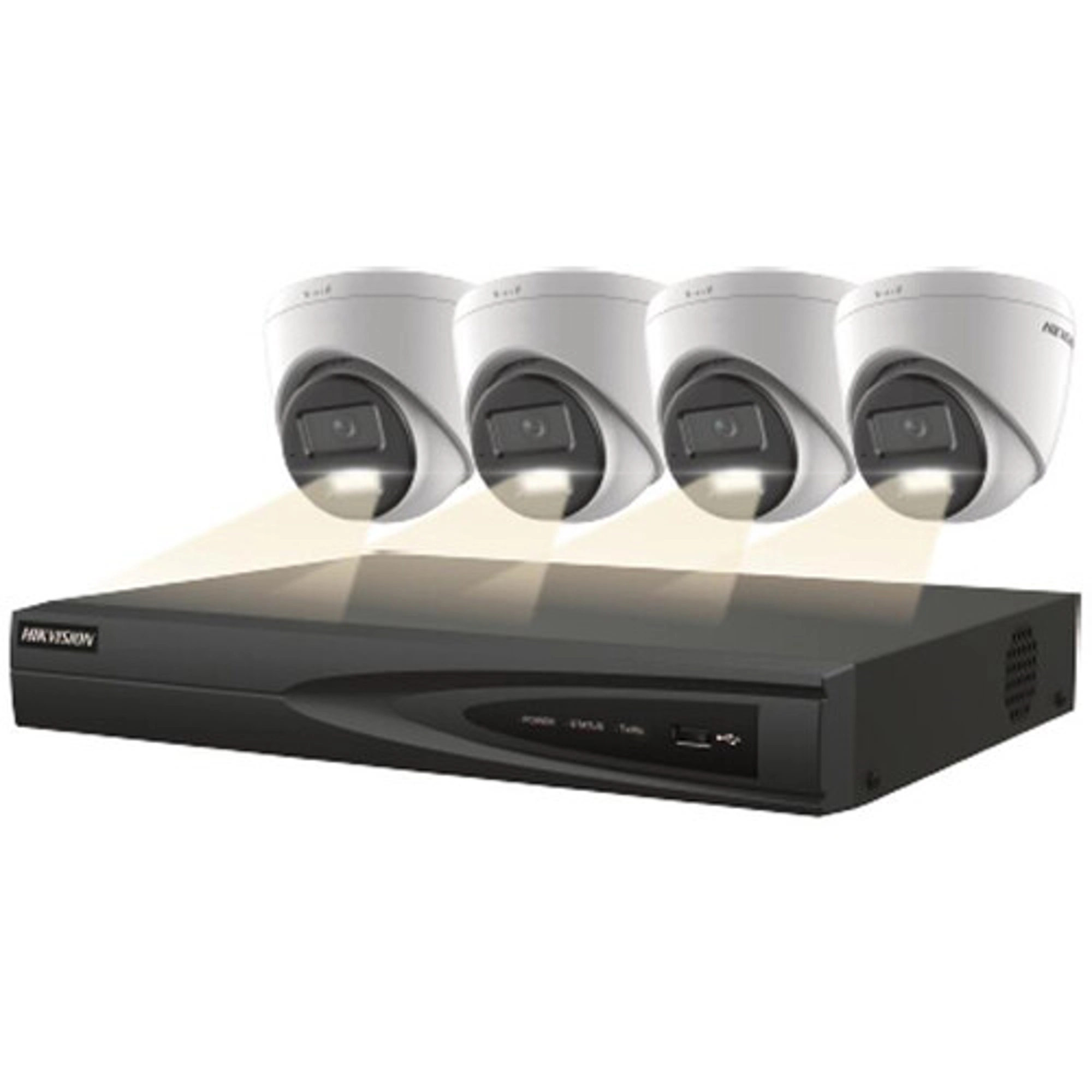

4-CHANNEL 4K NVR up to 8 MP recording, FOUR 4MP IP TURRET CAMERAS DS-2CD1343G2-LIUF (2.8mm),2TB Surveillance Hard Disk Drive,4K HDMI Output, Motion Detection 2.0 with Human/Vehicle Analysis, Smart Hybrid Light Technology
Send to a friend!
The included turret cameras capture 2560 x 1440 resolution video at 20 fps from a 2.8mm fixed lens that delivers a 98° horizontal field of view. The cameras have a night vision range up to 98', along with a supplemental white light that provides up to 98' of illumination for recording full-color video in low-light conditions. They are rated IP67 for outdoor use.
| Number of Channels | 4 |
| Resolution | Up to 8 MP |
| Bandwidth | Incoming: 40 Mb/sOutgoing: 80 Mb/s |
| Recording Resolution | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| HDMI Output Resolution | 4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720 |
| VGA Output Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Audio Output | 1-Channel, RCA (Linear, 1 Kilohm) |
| Two-Way Audio | 1-Channel, RCA (2 V p-p, 1 Kilohm) |
| Decoding Formats | H.265+, H.265, H.264+, H.264 |
| Playback Resolution | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Synchronous Playback | 4 Channels |
| Decoding Capability | 1 Channel at 8 MP3 Channels at 4 MP6 Channels at 1080p |
| Remote Connection | 32 |
| Network Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| SATA | 1 x SATA Interface |
| Drive Bays | 1 |
| HDD Capacity | 8 TB |
| HDD Included | 2 TB |
| Network Interface | 1 x RJ45 1000M Self-Adaptive Ethernet Port |
| USB | 2 x USB 2.0 |
| Alarm | N/A (4/1 is Optional) |
| PoE Interface | 4 x 100M RJ45 Self-Adaptive Ethernet Ports |
| PoE Power | =50 W |
| PoE Standard | IEEE 802.3af/at |
| Power Supply | 48 VDC, 1.35 A |
| Power Consumption | =10 W (Without HDD & PoE Off) |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90% |
| Dimensions | 12.4 x 9.4 x 1.9" / 315 x 240 x 48 mm |
| Weight | 2.6 lb / =1.18 kg (Without HDD) |
| Image Sensor | 1/3", 4 MP Progressive Scan CMOS |
| Minimum Illumination | Color: 0.005 Lux (f/2.0 with AGC)B&W: 0 Lux |
| Shutter Speed | 1/100,000 to 1/3 Seconds |
| Day/Night | IR Cut Filter |
| 3-Axis Adjustment | Horizontal: 0 to 360°Vertical: 0 to 75°Rotation: 0 to 360° |
| Lens | 2.8mm |
| Lens Mount | M12 |
| Aperture | f/1.6 |
| Field of View | Horizontal: 100°Vertical: 55°Diagonal: 117° |
| DORI Distance | Detect: 206.7' / 63 mObserve: 82' / 25 mRecognize: 39.4' / 12 mIdentify: 19.6' / 6 m |
| IR Range | 98' / 30 m |
| White Light Range | 98' / 30 m |
| IR Wavelength | 850 nm |
| Video Compression | Main Stream: H.265+, H.265, H.264+, H.264Sub-Stream: H.265, H.264, MJPEG |
| H.264 Profile | Main, Baseline, High |
| H.265 Profile | Main |
| Video Bit Rate | 32 Kb/s to 8 Mb/s |
| Maximum Resolution | 2560 x 1440 |
| Frame Rate | Main Stream: 20 fps at 2560 x 1440, 24 fps at 1920 x 1080, 1280 x 720Sub-Stream: 24 fps at 1280 x 720, 640 x 480, 640 x 360 |
| Bit Rate Control | CBR, VBR |
| Region of Interest | One Fixed Region for Main Stream |
| Audio | Mono |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 / 16 kHz |
| Audio Compression | G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Audio Bit Rate | 64 kb/s G.711ulaw/G.711alaw), 16 kb/s G.722.1/G.726, 32 to 160 kb/s MP2L2, 16 to 64 kb/s AAC-LC |
| Security | Password Protection, Complicated Password, Watermark, Basic and Digest Authentication for HTTP, WSSE, and Digest Authentication for Open Network Video Interface, Security Audit Log, Host Authentication (MAC Address) |
| Simultaneous Live View | Up to 6 Channels |
| API | ONVIF Profiles G, S, and T, ISAPI, SDK |
| Network Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP |
| User/Host Level | Up to 32 Users at 3 Host Levels (Admin, Operator, User) |
| Client | iVMS-4200, Hik-Connect |
| Supported Web Browsers | Internet Explorer 10 & 11 (Plug-In Required), Chrome 57 or higher, Firefox 52 or Higher |
| Wide Dynamic Range | 120 dB |
| SNR | =52 dB |
| Day and Night | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D-DNR |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance |
| Privacy Masking | 4 Programmable Polygon Privacy |
| Communication Interface | 1 x RJ45 100M Self-Adaptive Ethernet Port |
| Storage | Supports microSD/SDHC/SDXC Cards up to 512 GB |
| Built-In Microphone | Yes |
| Reset | Reset Key |
| Basic Event | Motion Detection (Human and Vehicle Specification), Video Tampering Alarm, and Exception |
| Linkage Method | Upload to FTP/Memory Card, Send Email, Notify Surveillance Center, Trigger Recording, Trigger Capture |
| Temperature | Startup and Operating: -22 to 140°F / -30 to 60°C |
| Humidity | Startup and Operating: 0 to 95% (Non-Condensing) |
| Storage Temperature | -22 to 140°F / -30 to 60°C |
| Storage Humidity | 0 to 95% (Non-Condensing) |
| Power Supply | 12 VDC =25% (5 W), PoE (802.3af, Class 3, 6.5 W) |
| IP Rating | IP67 |
| Material of Construction | Metal and Plastic |
| Dimensions | 4.3 x 3.5" / 110 x 89 mm |
| Weight | 0.7 lb / 340 g |
| Package Weight | 12.97 lb |
| Box Dimensions (LxWxH) | 19.7 x 12.2 x 10.9" |
4
4
Fixed
Hikvision
Turret
White
The included turret cameras capture 2560 x 1440 resolution video at 20 fps from a 2.8mm fixed lens that delivers a 98° horizontal field of view. The cameras have a night vision range up to 98', along with a supplemental white light that provides up to 98' of illumination for recording full-color video in low-light conditions. They are rated IP67 for outdoor use.
