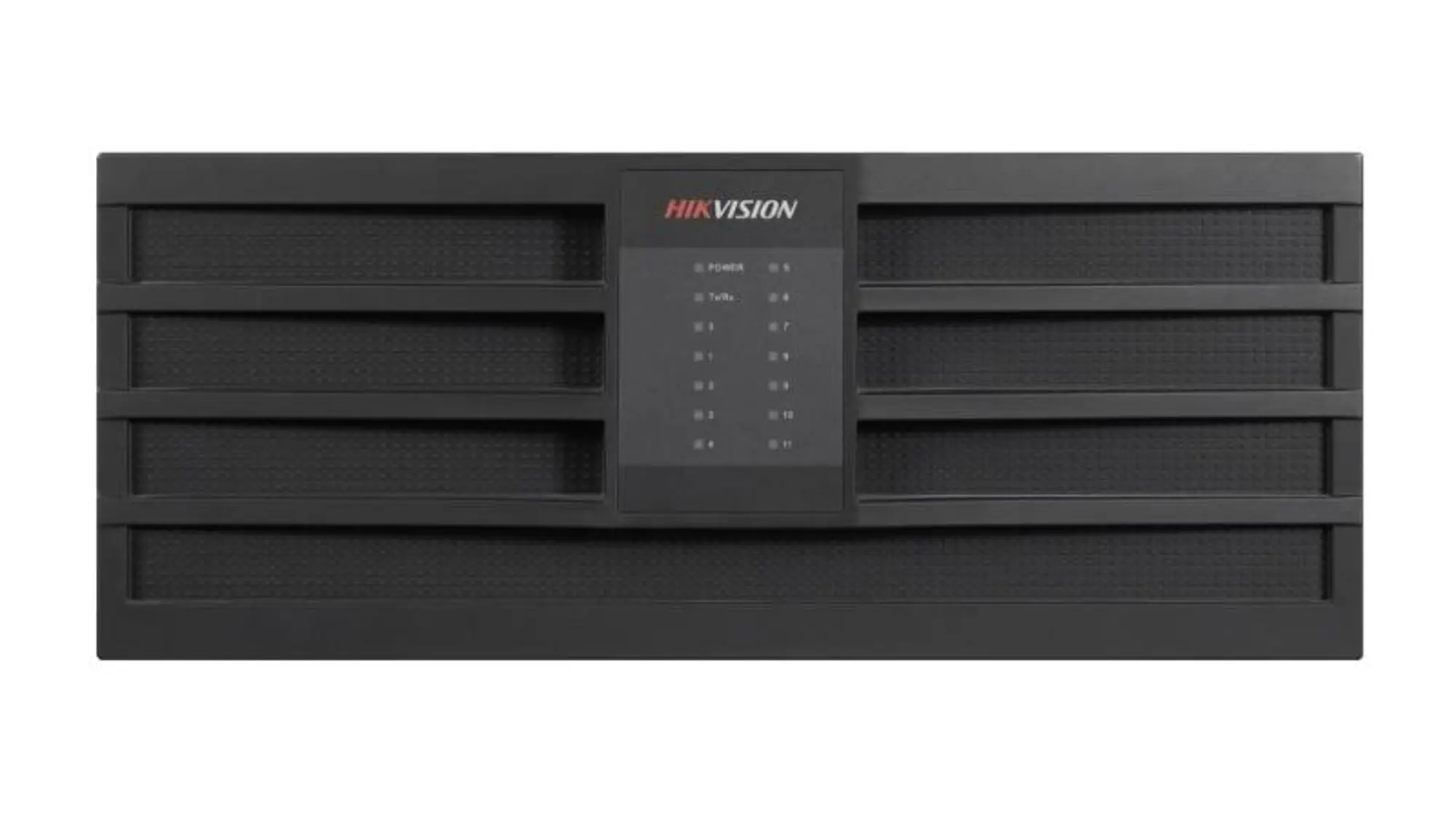

Hikvision DS-C10S-TVI/4

Brand NameHikvisionManufacturerHikvisionManufacturer Part NumberDS-C10S-TVI/4Product ModelDS-C10S-TVI/4Product NameHD TVI Input BoardProduct SeriesDS-C10SProduct TypeHD TVI Input Board

CompatibilityHikvision DS-C10S Video Wall Controller

Application/UsageVideo Wall Controller

Operating Temperature (T-T) (°F)-90

Number of Channels4

• 10 kinds of signal sources are supported, including VGA, DVI, HDMI, BNC, SDI, YPbPr, Ultra HD, HDBaseT, HDTVI, DP and IP camera input
• An enhanced network decoding board supports H.264 and H.265 compression standard and can display network signal of 2-chat8.0MP, 2-chat6.0MP, 2-chat5.0MP, 8-chat1080p, 16-chat720p and 32-chatD1 and local video files
• Up to 6 image layers can be displayed on one screen, including one virtual LED image layer and a background layer
• FPGA-based hardware design with high bandwidth for accessing and processing the high-definition signal
• Supports 1/4/9/16 split screen layout
• Adjustable LED font size, background color and moving type
• Up to 16384 8192 for background layers resolution
• Provides DVI dual link signal collection card whose input resolution is up to 40884088/15 Hz
• Supports HD/3G SDI synchronous output
• Remote control via ipad client software and IE browser
