SKU: HIK-DS-3E1510P-SI
MPN: DS-3E1510P-SI
UPC: 842571135619

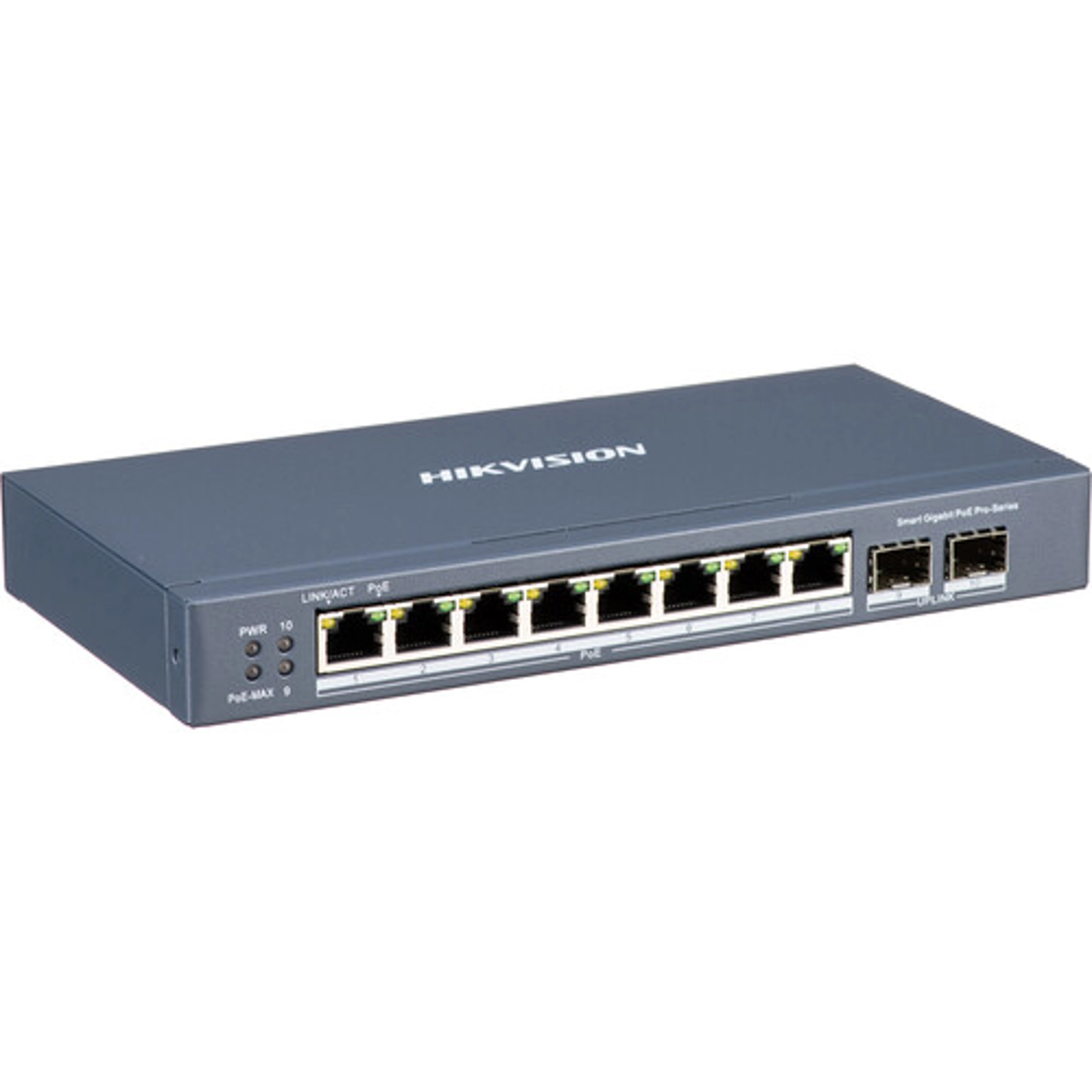

Smart web managed PoE switches,8 gigabit PoE ports, and 2 gigabit fiber optical port, 802.3af/at,PoE power budget 110W, max. 300m long distance transmission, Web management, Visualized Topology Management
Send to a friend!
| Inputs/Outputs | 8x RJ45 Gigabit Ethernet PoE (Unspecified)2x SFP Gigabit Ethernet WAN |
| Stackable | No |
| Switching Bandwidth | 20 Gb/s |
| PoE Power Budget | 110 W |
| Stackable | No |
| Layer Services Supported | Layer 2 |
| Supported Protocols | Auto-MDIX/MDIDHCP ServerLink AggregationPort Mirroring |
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| MAC Address Table Size | 8K |
| Security Features | Storm Control |
| Forwarding Rate | 14.88 Mpps |
| Switching Bandwidth | 20 Gb/s |
| Packet Buffer | 4.1 Mb |
| PoE per Port | 30 W |
| PoE Power Budget | 110 W |
| Power Draw | 120.00 W (Max)7.0 W (Idle) |
| Input Power | 48 VDC at 2.5 A |
| Power Supply Type | External |
| Certifications | FCC, CE, EN, RCM, IC, UL, CB, IEC, RoHS, WEEE, REACH |
| Operating Conditions | 14 to 131°F / -10 to 55°Cat 5 to 95% Humidity |
| Storage Conditions | -40 to 185°F / -40 to 85°Cat 5 to 95% Humidity |
| Material of Construction | Metal |
| Indicator Lights | Yes |
| Rack Mountable | No |
| Dimensions | 8.6 x 4.27 x 1.1" / 217.6 x 108.55 x 27.8mm |
| Weight | 2.67lb / 1.21kg |
| Package Weight | 2.96 lb |
| Box Dimensions (LxWxH) | 11.1 x 5.5 x 4.3" |
Hikvision
