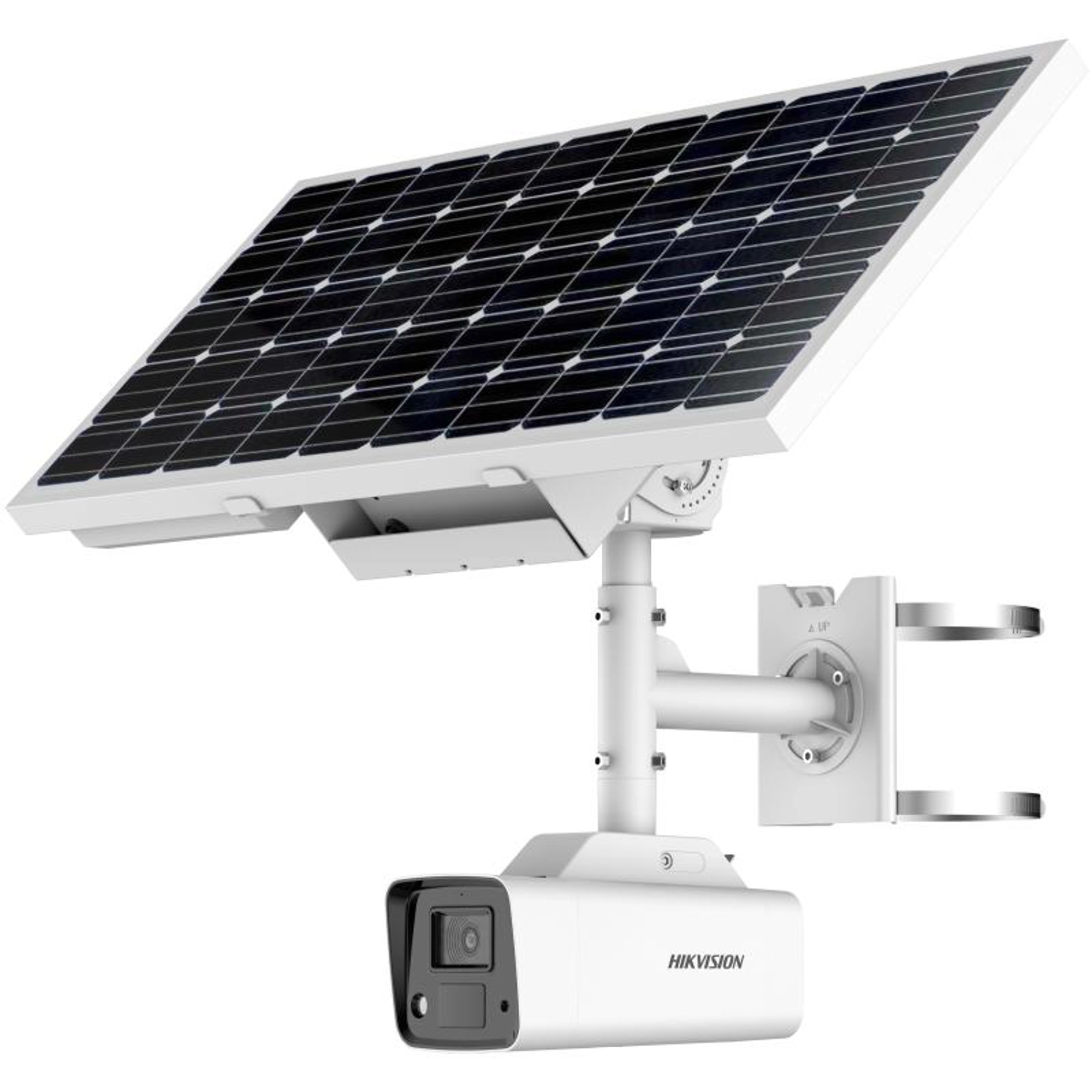

DS-2XS2T47G1-LDH/4G/C18S40

4MP ColorVu Solar-powered Security Camera Setup

Image Sensor 1/3" Progressive Scan CMOS Max. Resolution 2560 1440 Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light Shutter Time 1/3 s to 1/100,000 s Day & Night 24/7 color imaging Angle Adjustment Solar panel: pan: 0° to 358°, tilt: -40° to 0°; camera: pan: 0° to 360°, tilt: -60° to 0° Lens Lens Type Fixed focal lens, 4 and 6 mm optional Iris Type Fixed Aperture F1.0 Depth of Field 4 mm: 2.7 m to ∞ 6 mm: 5.9 m to ∞ Focal Length & FOV 4 mm, Horizontal FOV: 75°, Vertical FOV: 40°, Diagonal FOV: 89° 6 mm, Horizontal FOV: 49°, Vertical FOV: 27°, Diagonal FOV: 57° Lens Mount M12 DORI DORI 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m 6 mm, D: 120 m, O: 47 m, R: 24 m, I: 12 m Illuminator Supplement Light Type White Light Supplement Light Range Performance mode: up to 30 m, proactive mode: up to 10 m Smart Supplement Light Yes Video Main Stream 50 Hz: 12.5 fps (2560 1440, 1920 1080, 1280 720) 60 Hz: 15 fps (2560 1440, 1920 1080, 1280 720) Sub-Stream 50 Hz: 12.5 fps (1280 720640 480, 640 360) 60 Hz: 15 fps (1280 720, 640 480, 640 360) Video Compression Main stream: H.265/ H.264, Sub-stream: H.265/H.264/MJPEG, H.264+ and H.265+: main stream supports under performance mode Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile,Main Profile,High Profile H.265 Type Main Profile Bit Rate Control CBR,VBR Region of Interest (ROI) 1 fixed region(s) for main stream Scalable Video Coding (SVC) H.264 and H.265 encoding Audio Audio Sampling Rate 8 kHZ/16 kHz Environment Noise Filtering Yes Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Network Security Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface Simultaneous Live View Up to 6 channels API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK Protocols TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP User/Host Up to 32 users 3 user levels: administrator, operator, and user Network Storage Auto Network Replenishment (ANR) Client iVMS-4200,Hik-Connect,Hik-Central Web Browser Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+ Mobile Communication SIM Card Type Micro SIM Uplink and Downlink Data Rate Cat 4, uplink: 50 Mbps, downlink: 150 Mbps Frequency NL668-EU: LTE-TDD: B38/B40/B41 LTE-FDD: B1/B3/B5/B7/B8/B20/B28 WCDMA: B1/B5/B8 GSM: B3/B5/B8 NL668-LA: LTE-TDD: B38/B40 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66 WCDMA:B1/B2/B3/B4/B5/B8 GSM: B2/B3/B5/B8 NL668-US: LTE-FDD: B2/B4/B5/B12/B13/B17/B66/B71 WCDMA: B2/B4/B5 Standard LTE-TDD,LTE-FDD,WCDMA,GSM Image SNR ≥ 52 dB Wide Dynamic Range (WDR) Digital WDR Day/Night Switch Day,Night,Auto,Schedule Image Enhancement BLC,HLC,3D DNR Image Settings Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser Interface On-Board Storage Built-in eMMC storage, up to 64 GB, Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,For eMMC storage, 50 GB is available for recording. Built-in Microphone Yes Built-in Speaker Yes Reset Key Yes Event Basic Event Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error Linkage Upload to NAS/memory card,notify surveillance center,trigger recording,trigger capture,audible warning General Power Power Consumption and Current: Typical power scenarios: 1.85 W (4G working) Standby scenarios: 40 mW Max. power consumption: 6 W Power Supply: 12 VDC ± 25% *For debugging only 40 W (deviation: ± 2 W) Solar panels Power Interface: Power supply interface: 5.5 mm coaxial power plug Extened solar panel: four-core aviation connector Material ADC12 Storage Conditions -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing) Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Heartbeat,mirror,flash log Startup and Operating Conditions -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing) Dimension 679 mm 443 mm 760 mm (26.7" 17.4" 29.9") Package Dimension 910 mm 350 mm 450 mm (35.8" 13.8" 17.7") Weight Approx. 11.570 kg (25.5 lb.) With Package Weight Approx. 16.21 kg (35.7 lb.) Battery Battery Type Ternary Lithium Capacity 8.4 Ah 2 packs Max. Charging Voltage 12.6 V Operating Temperature Charging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 55 °C (-4 °F to 131 °F) Battery Voltage 9 V to 12.6 V Battery Life More than 500 cycles Cycle Lifetime Performance mode: 3.6 days, Proactive mode: 6 days, Standby mode: 30 days Battery Weight Approx. 1400 g (3.1 lb.) Approval EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, *FCC certification is only for the device sold in the North American region and the Latin American region. IC certification is only for the device sold in the North American region. CE and RCM certifications are only for the device sold in the European region. RF FCC ID: FCC Part 15.247 (BT or 2.4G), IC ID (RSS-247(BT or 2.4G)), CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G) *FCC certification is only for the device sold in the North American region and the Latin American region. IC certification is only for the device sold in the North American region. CE certification is only for the device sold in the European region. Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1, *CE and LOA certifications are only for the device sold in the European region. Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006, *CE certification is only for the device sold in the European region. Protection IP67: IEC 60529-2013

• High quality imaging with 4 MP resolution
• Standalone with solar panel and built-in battery
• 24/7 colorful imaging
• Support Human Detection
• Efficient H.265+ compression technology
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• Stability against category 12 typhoon
• Support 4G (LTE-TDD/LTE-FDD/TD-SCDMA) communication
