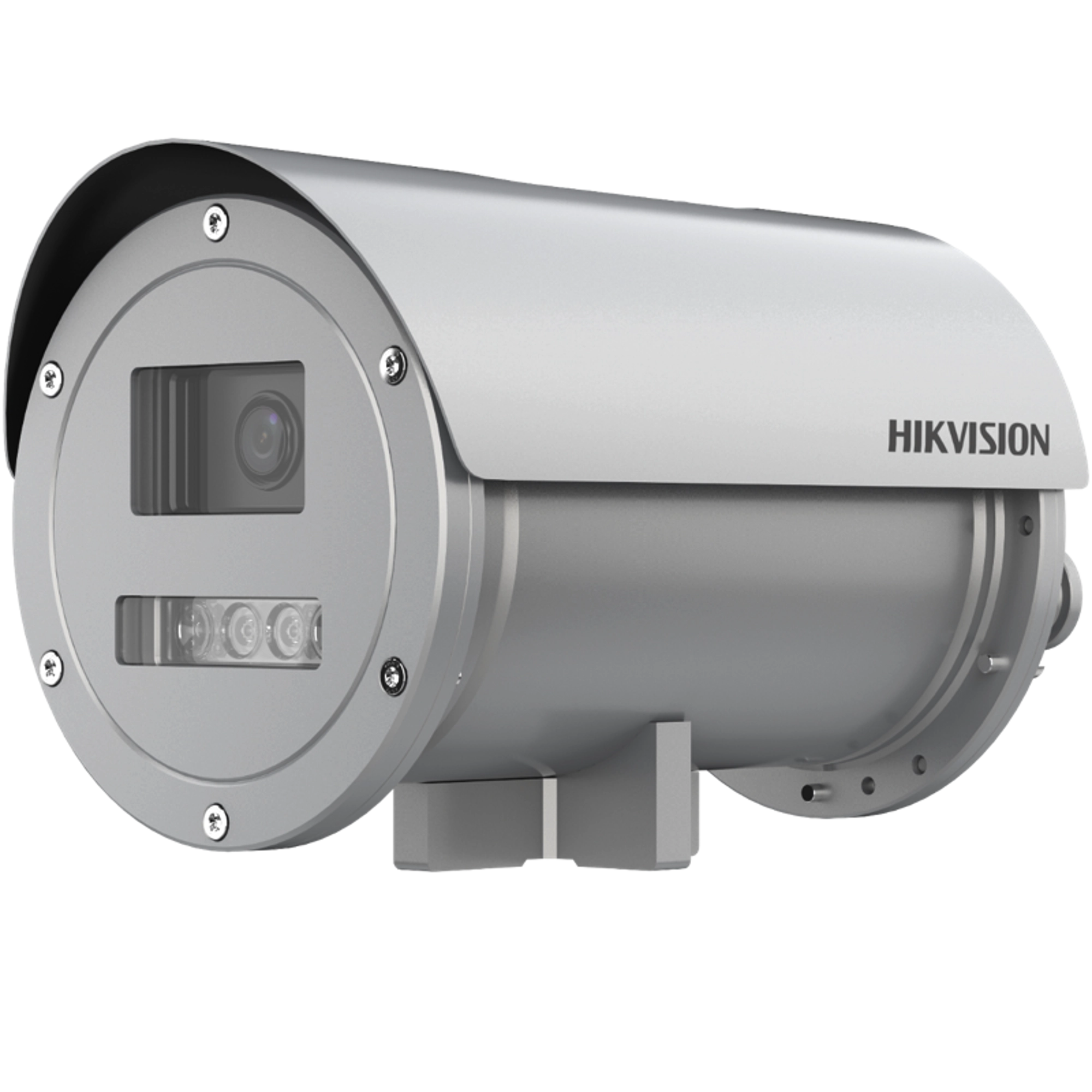

Hikvision DS-2XE6825G0-IZHS

DS-2XE6825G0-(I)(L)Z(H)(S) EOL EXIR Motorized Varifocal Bullet Explosion-Proof Network Camera

Image Sensor 1/2.8″ Progressive Scan CMOS Max. Resolution 1920 × 1080 Min. Illumination Color: 0.009 Lux @ (F1.2, AGC ON), B/W: 0.0009 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time 1 s to 1/100,000 s Day & Night IR cut filter Lens Lens Type Varifocal lens, 2.8 to 12 mm and 8 to 32 mm lens Focal Length & FOV 2.8 to 12 mm, horizontal FOV 115° to 42°, vertical FOV 59° to 24°, diagonal FOV 141° to 48° 8 to 32 mm, horizontal FOV 43° to 15°, vertical FOV 23° to 9°, diagonal FOV 50° to 17° Lens Mount Integrated Focus Auto, semi-auto, manual Iris Type Auto-iris, DC drive Aperture 2.8 to 12 mm: F1.4 8 to 32 mm: F1.7, constant F1.7 throughout the zoom range DORI DORI 2.8 to 12 mm: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m 8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m Illuminator Supplement Light Type -I model: IR -L model: white light Supplement Light Range -I model: up to 100 m IR range -L model: up to 30 m white light range IR Wavelength -I model: 850 nm Video Main Stream 50 Hz: 50 fps (1920 × 1080, 1280 × 720) 60 Hz: 60 fps (1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Fourth Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Fifth Stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Bit Rate Control CBR,VBR Scalable Video Coding (SVC) H.265 and H.264 support Region of Interest (ROI) 5 fixed regions for each stream Target Cropping Yes Audio Audio Type Mono sound Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 320 Kbps (MP3) Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets Simultaneous Live View Up to 20 channels API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP User/Host Up to 32 users. 3 user levels: administrator, operator and user Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 Network Storage Support microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported. Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE10, IE11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari12+ Local service: Chrome 57.0+, Firefox 52.0+ Image Image Parameters Switch Yes Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser Day/Night Switch Day, Night, Auto, Schedule, Alarm Trigger (-S), Video Trigger Wide Dynamic Range (WDR) 120 dB SNR ≥ 52 dB Image Stabilization EIS Image Enhancement BLC, HLC, Defog, 3D DNR Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format Interface Video Output 1Vp-p Composite Output (75 Ω/BNC) Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port, optical interface FC -S: RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) On-Board Storage Built-in microSD/SDHC/SDXC slot, up to 256 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing. Audio -S: 1 line in/out Alarm -S: 1 input, 1 output (max. 24 VDC, 1 A or 110 VAC 500 mA) Event Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)) Scene change detection, audio exception detection (-S model), defocus detection Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output (-S model), trigger recording, trigger capture, audible warning Deep Learning Function Hard Hat Detection Detects up to 30 human targets simultaneously Supports up to 4 shield regions Metadata Metadata of road traffic is supported Road Traffic and Vehicle Detection Blocklist and allowlist: up to 10,000 records; Captures vehicle that has no license plate; Support license plate recognition of motorcycles (only in checkpoint scenario); Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.) General Power -L: 100 to 240 VAC, 0.4 A, max. 22 W, terminal block PoE: 802.3at, 42.5 to 57 V, 0.55 to 0.45 A, max. 22 W -I: 100 to 240 VAC, 0.4 A, max. 18 W, terminal block PoE: 802.3at, 42.5 to 57 V, 0.55 to 0.45 A, max. 18 W Dimension 352 × 200 × 214 mm (13.6" × 7.9" × 8.4") Package Dimension 438 × 283 × 303 mm (17.2" × 11.1" × 11.9") Weight 14 kg (37.5 lb.) With Package Weight 15 kg (40.2 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) Startup and Operating Conditions -H model: -40 °C to 60 °C (-40 °F to 140 °F), humidity 95% or less (non-condensing) Without -H model: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) Language 32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) General Function Anti-flicker, 5 streams and 5 custom streams, heartbeat, mirror,privacy mask, pixel counter Heater -H: Yes Approval EMC FCC: FCC-SDoC(ANSI C63.4, FCC Part15 sub B) CE: CE-EMC(EN 55024: 2010 + A1: 2015, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013) RCM: AS/NZS 60950.1: 2003 + Am1, Am2 and Am3, AS/NZS CISPR 32: 2015 IC: IC-VoC(ICES-003 Issue 7: 2020) Safety UL: UL 60950-1: 2014, CAN/CSA C22.2 No. 60950-1-07: 2014 UL: Class I, Zone 1, AEx db IIC T6 Zone 21, AEx tb IIIC T80°C Ex db IIC T6 Gb X Ex tb IIIC T80°C Db X CB: IEC IEC 60079-0 CE: CE-LVD(EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013) BIS: IS 13252(Part 1)2010 + A1: 2013 + A2: 2015 Protection IP68: IEC 60529-2013 Explosion-Proof Protection ATEX: Ex II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68 IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68 For explosive gas atmospheres, the maximum surface temperature is 85°C For flammable dust atmospheres, the maximum surface temperature is 80°C IIC: for explosive gas atmospheres other than mines susceptible to firedamp For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22. Anti-Corrosion Protection NEMA 4X (NEMA 250-2014) C5 (ISO 6270-1, ISO 9227)

Explosion-proof design: the camera has passed international ATEX & IECEx certifications, and can be used in gas and dust hazardous scenarios 316L stainless steel enclosure, protecting the camera from damage caused by sparks or corrosive materials IP68 water resistant, preventing water ingress for outdoor use H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements AC 100 V to 240 V wide range power supply: easy to deploy cables and safer compared to a power adapter solution
