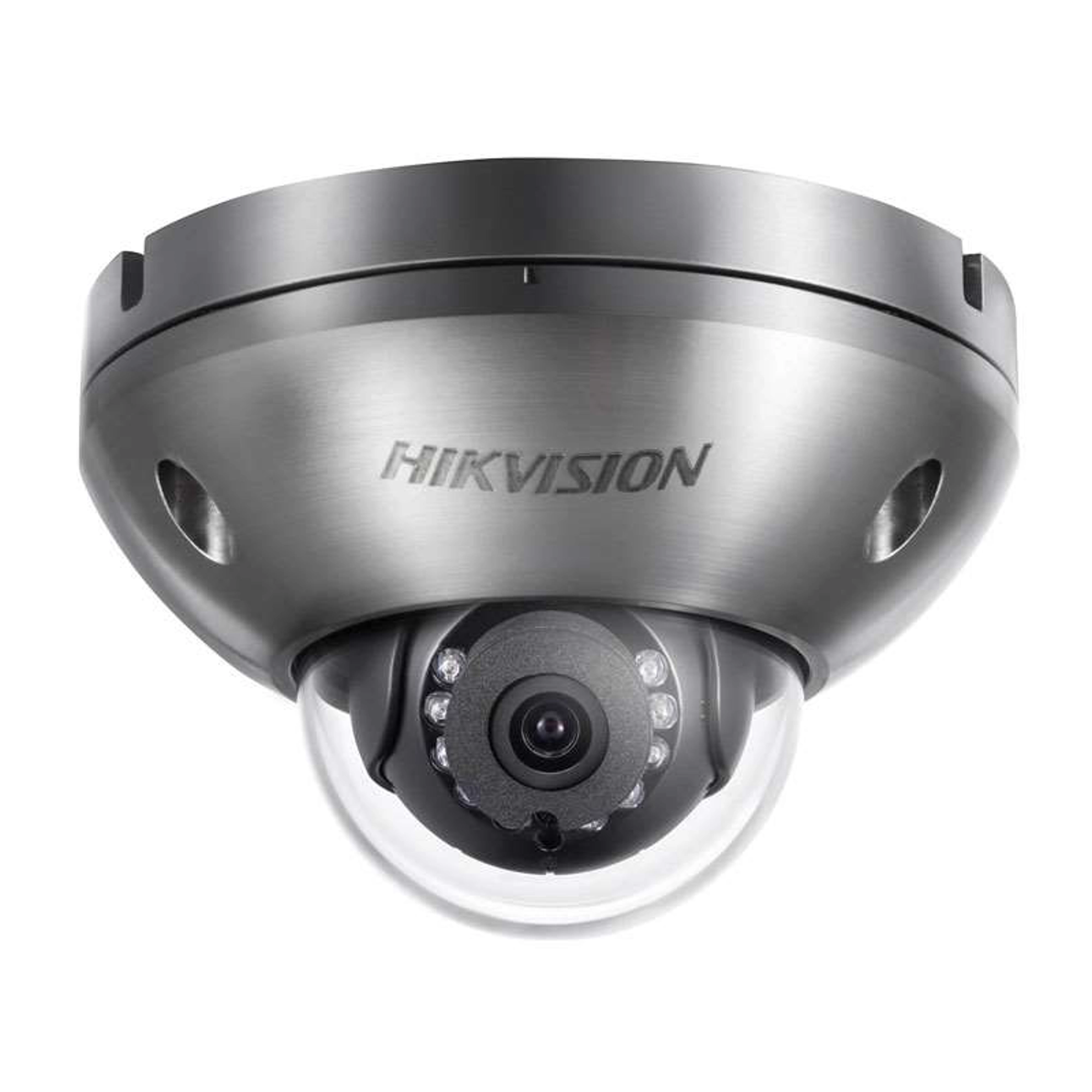

Hikvision DS-2XC6142FWD-IS 6mm

Product Overview:

Hikvision DS-2XC6142FWD-IS-6mm; The Anti-Corrosion Network Dome Cameras produce images with a resolution of up to 4 MP. Most importantly, the camera features an IP67 316 L stainless steel housing that exceeds WF-2, HEMA 4X, and C5-M anti-corrosion standards and protects it from outside elements that are otherwise detrimental to internal microelectronics. The Anti-Corrosion Network Dome Camera also features a wide range of smart functions, including intrusion detection, line crossing detection, and audio exception, which allows for key events and objects to be recorded for further forensic needs.

These features also include smart tracking, which enables the camera to detect moving objects and follow them within the camera's area of coverage.

Key Features:

• 1/2.7" Progressive Scan CMOS
• Up to 4 MP High Resolution
• Minimum Illumination: Color: 0.01 Lux @ (f/1.2, AGC on), B/W: 0.028 Lux @ (f/2.0, AGC on), 0 Lux with IR
• Up to 30 ft (10 m) IR Distance
• H.265+/H.265 / H.264+ / H.264
• Supports up to 128 GB On-Board Storage
• Anti-Corrosion Standard: WF-2, NEMA 4X, C5-M
• IP67 Protection
• 12 VDC, PoE (802.3af, class 3), 5 W

• Image Sensor1/3" Progressive Scan CMOS
• Max. Resolution 2560 1440
• Min. Illumination; 0.01 Lux @(F1.2, AGC ON) ,0 Lux with IR on; 0.028 Lux @(F2.0, AGC ON), 0 Lux with IR on
• Shutter Time1 s to 1/100,000 s, support slow shutter
• Day & Night IR cut filter
• Angle Adjustment Tilt: 0° to 75°; Pan: -30° to 30°; Rotate: 0° to 360°

• Focal Length & FOV; 4mm, horizontal field of view: 83°, vertical field of view: 44.7°; 6mm horizontal field of view: 55.4°, vertical field of view: 30.4°
• Lens MountM12

• Supplement Light Range 10 m

• Main Stream; 50 Hz: 25 fps (2560 1440, 1920 1080, 1280 720, 528 384); 60 Hz: 24 fps (2560 1440, 1920 1080, 1280 720, 528 384)
• Sub-Stream; 50 Hz: 25 fps (704 576, 640 480, 352 288, 320 240); 60 Hz: 24 fps (704 480, 640 480, 352 240, 320 240)
• Third Stream; 50 Hz: 1 fps (1920 1080, 1280 960, 1280 720, 704 576, 640 480, 352 288, 320 240); 60 Hz: 1 fps (1920 1080, 1280 960, 1280 720, 704 480, 640 480, 352 240, 320 240)
• Video Compression; Main stream: H.265+/H.265/H.264+/H.264; Sub stream: H.265/H.264/MJPEG; Third stream: H.265/H.264
• Video Bit Rate32 Kbps to 16 Mbps
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.265 Type Main Profile
• Region Of Interest (ROI)Support 4 customized region for each stream, and face dynamic tracking
• Target Cropping Yes

• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-128 Kbps(MP2L2)

• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
• API ONVIF (PROFILE S, PROFILE G), ISAPI
• Network Storage Network Storage Support Micro SD/SDHC/SDXC card (up to 128 GB) local storage and NAS (NFS,SMB/CIFS), ANR

• Image Settings Rotate mode, saturation, brightness, contrast, etc., adjustable by client software or web browser
• Day/Night Switch Auto, Schedule, Triggered by Alarm In
• Wide Dynamic Range (WDR)120 dB
• Image Enhancement BLC, 3D DNR, Defog
• Picture Overlay LOGO picture can be overlaid on video with 128 128 24 bit bmp format

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Alarm1 alarm input, 1 alarm output
• Event; Basic Event; Motion detection, tampering alarm, exception (HDD full, HDD error, network disconnected, IP address conflicted, illegal login)
• Smart Event - Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, Face detection, scene change detection, defocus detection

• Power; DC 12V, 0.4A, Max. 5W, terminal block; PoE (802.3af, class 3), 0.1A
• Material SUS 316L
• Dimension 113 77.3 mm (4.45 3.04)
• Package Dimension 257 167 145 mm (10.12 6.57 5.71)
• 1680 g (3.7 lb.)
• Startup And Operating Conditions-30°C to +60 °C (-22 °F to +140 °F), humidity less than 95% (non-condensing)
• General Function Mirror, anti-flicker, heartbeat, watermark, password protection, privacy mask

• EMC FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B) CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013) RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015 IC: IC-VoC(ICES-003 Issue 7:2020) KC: KN 301489-1,KN 301489-17,RRA NOTICE 2017-14(2017.12.05),RRA NOTICE 2017-19(2017.12.28)
• Safety UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014 CB: IEC 60950-1
• Environment CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)
• Protection IP67
• Anti-Corrosion Protection WF2, NEMA-4X C5-M: 720H neutral salt spray, 480H water condensation; Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity; Interior environments: buildings or areas with almost permanent condensation and with high pollution.
