SKU: HIK-DS-2TD6266-100C2L
MPN: DS-2TD6266-100C2L
UPC: 842571117646

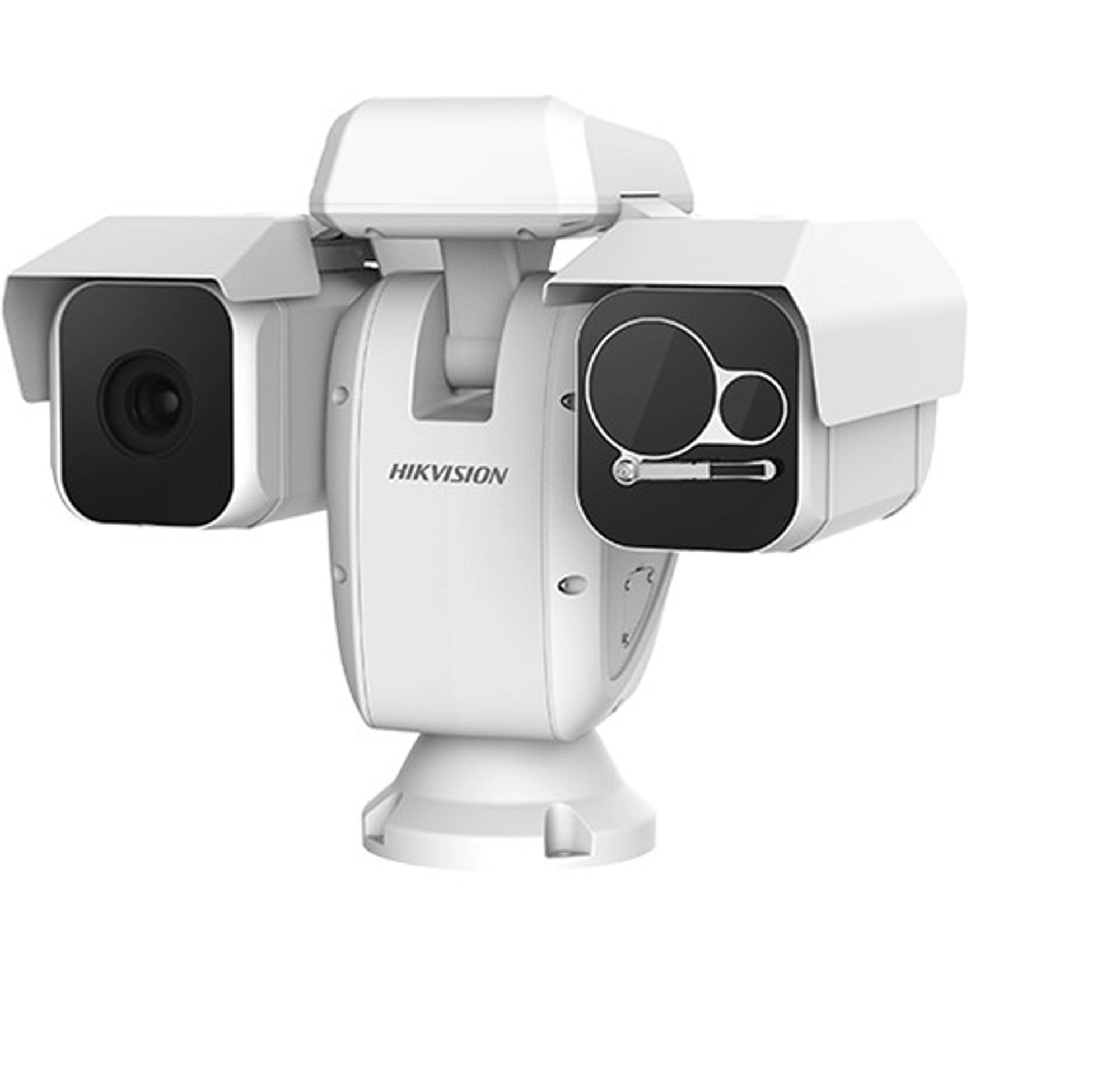

Outdoor dual sensor thermal network camera, 640x512 100mm thermal, 2MP Day/Night Darkfighter 49x optical, 500m IR, PTZ Suite Analytics, Temperature exception alarm, Advanced fire detection, audio in/out, IP66, 24VAC, 120W
Send to a friend!
The DS-2TD6266-100C2L from Hikvision is a Thermal & Optical Bi-spectrum Network Positioning System applied to frontier defense occasions, maritime defense occasions, port monitoring, airport perimeter security, and so on. The pre-alarm system helps you discover unexpected events immediately and protects you from property loss.
The DS-2TD6266-100C2L from Hikvision is a Thermal & Optical Bi-spectrum Network Positioning System applied to frontier defense occasions, maritime defense occasions, port monitoring, airport perimeter security, and so on. The pre-alarm system helps you discover unexpected events immediately and protects you from property loss.
Features
| SKU | DS-2TD6266-100C2L |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hikvision |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Lens Type | Fixed |
| Lens Size | 100mm |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 24vAC |
| Dimensions (W x H) | 486.1 mm 351.6 mm 450.3 mm (19.14" 13.84" 17.73") |
| Electronic Shutter | PAL: 1-1/30,000s / NTSC: 1-1/30,000s |
| Image Device | Speed Dome: 1/1.9 Progressive Scan CMOS, Fixed Camera: Vanadium Oxide Uncooled Focal Plane Arrays |
| Minimum Scene Illumination | Color : 0.05Lux @ (F1.8, AGC ON), B/W : 0.01Lux @ (F1.8, AGC ON) |
| Operating Humidity | 90% or Less |
| Operating Temperature | -40° C to 60° C (-40° F to 140°F); |
| OSD Menu | 24 privacy masks programmable; optional multiple colors and mosaics |
| Power Consumption | 120W |
| Protocols | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,U DP,IGMP,ICMP,DHCP, PPPoE, Bonjour |
| Signal System | NTSC, PAL |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | 6.23° 4.98° |
| Rotation Angle | 360° |
| Automatic White Balance | Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| IR Distance | 500m/1640ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
