SKU: HIK-DS-2TD2628-3/QA
MPN: DS-2TD2628-3/QA

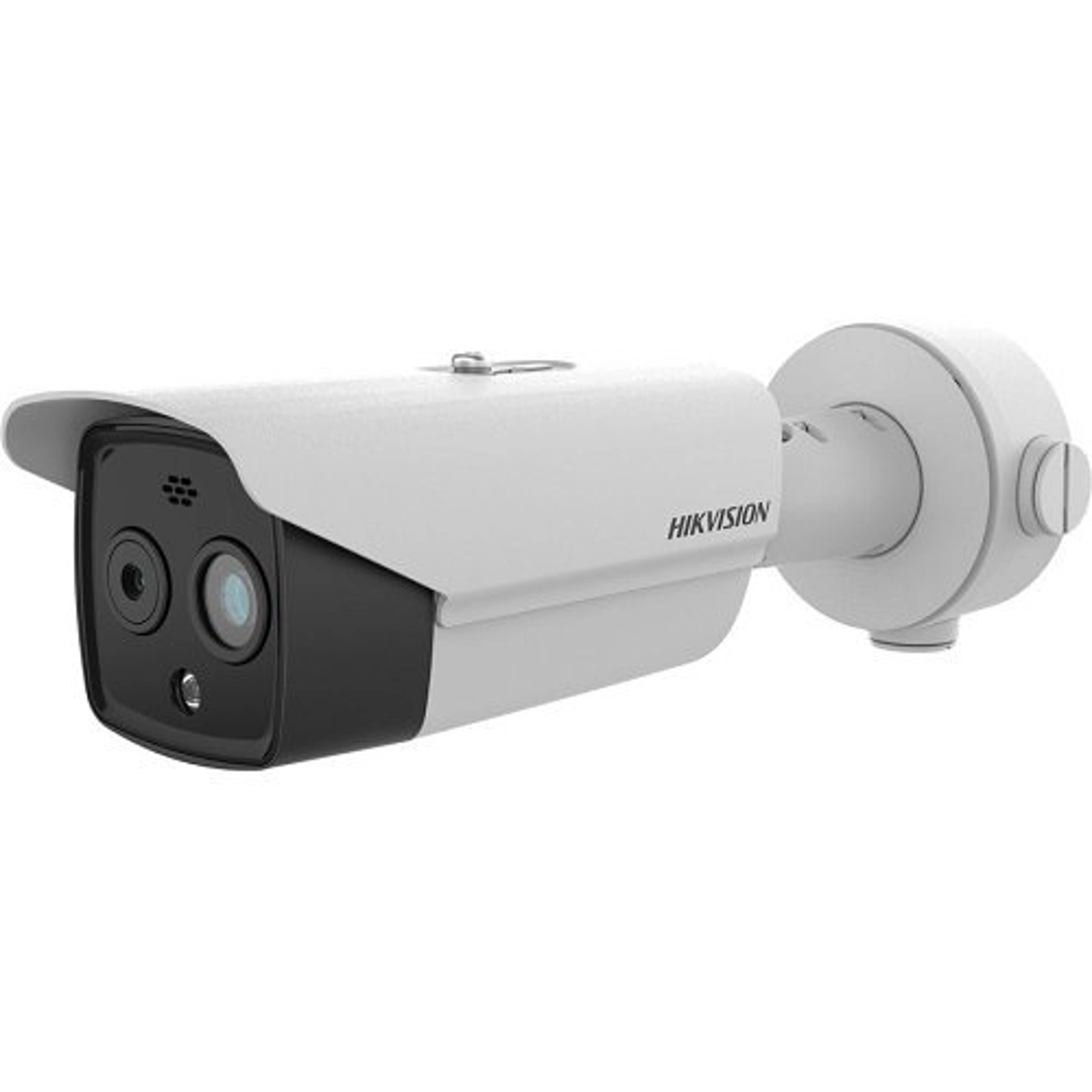

Thermal & Optical Bi-spectrum Network Bullet Camera, Thermal Resolution 256×192, 3.5 mm, 50°×37.3°, Optical 2688×1520, DC12V or PoE(802.3af), IP67
Send to a friend!
Night Vision Distance98.43 ftNight Vision Distance (mm)30000Wide Dynamic RangeYes
Color SupportedColorMaximum Video Resolution2688 x 1520Thermal Image Sensor TypeVanadium Oxide Uncooled Focal Plane Arrays
Maximum Operating Temperature149°F (65°C)Maximum Operating Temperature (°F)149Minimum Operating Temperature-40°F (-40°C)Minimum Operating Temperature (°F)-40Operating Humidity95%
Longest Shutter Speed1 SecondShortest Shutter Speed1/100000 Second
Brand NameHikvisionManufacturerHikvisionManufacturer Part NumberDS-2TD2628-3/QAProduct LineHeatProProduct ModelDS-2TD2628-3/QAProduct NameThermal & Optical Bi-spectrum Network Bullet CameraProduct SeriesHeatproProduct TypeNetwork CameraWeight (Approximate) (g)1550
Network (RJ-45)Yes
Focal Length3.6 mmLens IncludedYesMaximum Focal Length4.30 mmMaximum Thermal Focal Length0.14"Maximum Thermal Focal Length (mm)3.6
Features3D Digital Noise Reduction, Alarm Triggering, Audio Compression, Auto Gain Control, Built-in IR LED, HTTPS Encryption, Microphone In, SD Card Local Storage, Wide Dynamic RangeIngress Protection RatingIP67TAA CompliantNo
Remote ManagementYes
ColorWhiteForm FactorBulletWeight (Approximate)3.42 lb
Input Voltage12V DC, 24V ACInput Voltage (V AC)24Input Voltage (V DC)12
Mount TypeCorner Mount, Junction Box Mount, Pole Mount
Minimum Focal Length (mm)4.3
Recording FormatsHDStorage TypeMemory Card
Connectivity TechnologyWiredEffective Camera Resolution4MPField of View50.0°(H) 37.3°(V) , 84.0° (H) 43.1° (V)HD RecordingYesLens TypeFixedMaximum Aperturef/1.6Maximum Focal Length (mm)4.3Maximum Frame Rate30 fpsNight VisionYesNight Vision TypeInfrared/ColorVideo Signal FormatNTSC, PAL
Maximum Frame Rate (fps)30Thermal Video Resolution256 x 192
Hikvision
White
